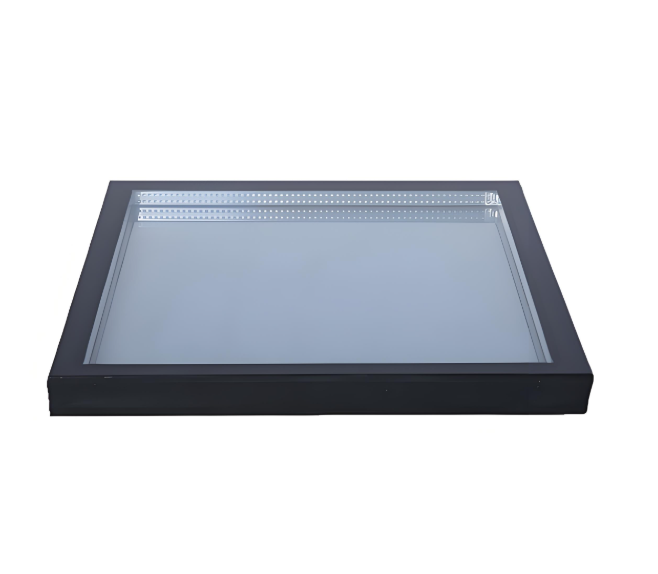

Toughened insulated glass
Toughened Insulated Glass (also known as tempered insulated glass) is a high-performance glazing solution that combines the safety and strength of toughened (tempered) glass with the thermal and acoustic insulation properties of an insulated glass unit (IGU). This type of glass consists of two or more toughened glass panes separated by a spacer bar and sealed to create an air- or gas-filled cavity (typically argon or krypton), which enhances energy efficiency.
Toughened glass is heat-treated to increase its strength and impact resistance, making it 4-5 times stronger than regular annealed glass. When broken, it shatters into small, blunt pieces, reducing the risk of injury. Insulated glass provides excellent thermal insulation, noise reduction, and condensation control, making it ideal for modern architectural applications such as facades, windows, doors, and skylights.
Parameter |
Specification |
Glass Type |
Toughened (Tempered) Glass |
Glass Thickness |
5mm / 6mm / 8mm / 10mm / 12mm (Customizable) |
Spacer Thickness |
6mm / 9mm / 12mm / 16mm (Aluminum or Warm Edge Spacer) |
Gas Filling |
Air / Argon / Krypton (Optional) |
Thermal Conductivity (U-value) |
1.0 - 2.8 W/m²·K (Depending on configuration) |
Sound Insulation (Rw) |
Up to 40 dB (Dependent on glass thickness & gas fill) |
Visible Light Transmittance (VLT) |
70% - 90% (Varies with glass type & coating) |
Solar Heat Gain Coefficient (SHGC) |
0.25 - 0.80 (Adjustable with Low-E coating) |
Safety Standard |
EN 12150 (Tempered Glass) / EN 1279 (Insulated Glass) |
Breakage Pattern |
Shatters into small, granular pieces (Safe fragmentation) |
Applications |
Windows, Curtain Walls, Doors, Skylights, Partitions |
This specification sheet provides a general overview; exact parameters may vary based on project requirements.
Xingchen Dahai (Hubei) Glass Co., Ltd.
Professional Insulated Glass Solutions Provider
We specialize in providing high-performance insulated glass for system window and door manufacturers, engineering projects, distributors, traders, and end consumers. Our product offerings include:
① Energy-saving (Low-E coating, Argon-filled) — Reduce energy consumption and improve building insulation
② Safety (Tempered laminated, Explosion-proof glass) — Impact-resistant and explosion-proof to ensure building safety
③ Soundproofing (Triple glazing, PVB laminated) — Effectively reduces noise for a quiet and comfortable environment
④ Smart (Electrochromic, Thermochromic glass) — Dynamic light control to meet the needs of intelligent architecture
Applications: Curtain walls, system doors & windows, rail transit, electronic displays
Core Supply Chain Advantages
① 5,000 tons in stock — Direct shipment from Hubei warehouse, fast response
② 30% faster delivery — Quicker than industry standard to ensure project timelines
③ Advanced customization — Flexible solutions tailored to various engineering requirements
Efficient Supply | Strict Quality Control | On-Time Delivery
