365mm Silk Loom Shuttle China Wooden Shuttle Textile Accessories

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 365mm Silk Loom Shuttle China Wooden Shuttle Textile Accessories, Textile Equipment 365 Silk Weaving Shuttle, Textile Spare Parts 365*35*25mm silk weaving wooden shuttle (with movable bell of Red Paper Shuttle), Pakistan 14.5-inch four sided steel paper shuttle, shuttle core adopts cracked type, and shuttle bottom spring is narrow and long type.

The total length of the shuttle is 365mm, the external width is 34mm, and the total height is 24mm. It is equipped with a movable bell at the front and a rubber band at the tail.

Textile equipment - The inner cavity of the shuttle is fixed with a small round head weft tube (winding tube), and the bottom of the shuttle has three circular holes, with one self-adhesive shuttle hair on each side wall. The living bell shuttle and silk weaving shuttle belong to shuttle textile equipment, generally dominated by wooden shuttles.

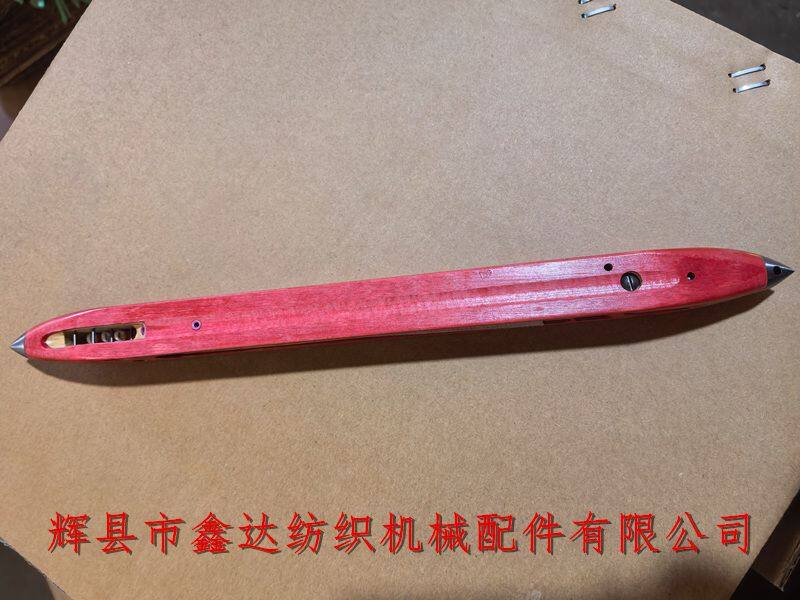

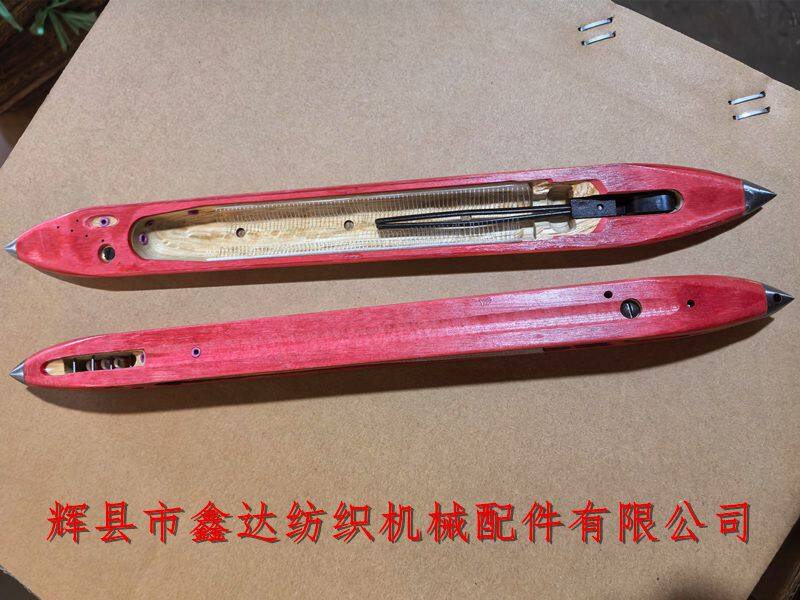

The above picture shows the front and side views of the shuttle. The main material of the shuttle is Qinggang wood, with red steel paper pasted on all four sides (upper surface, bottom surface, and two sides). The minimum order quantity for wooden shuttles, textile equipment, textile machine shuttles, live bells, and silk weaving shuttles is 300 pieces, with a delivery time of 65-70 days.

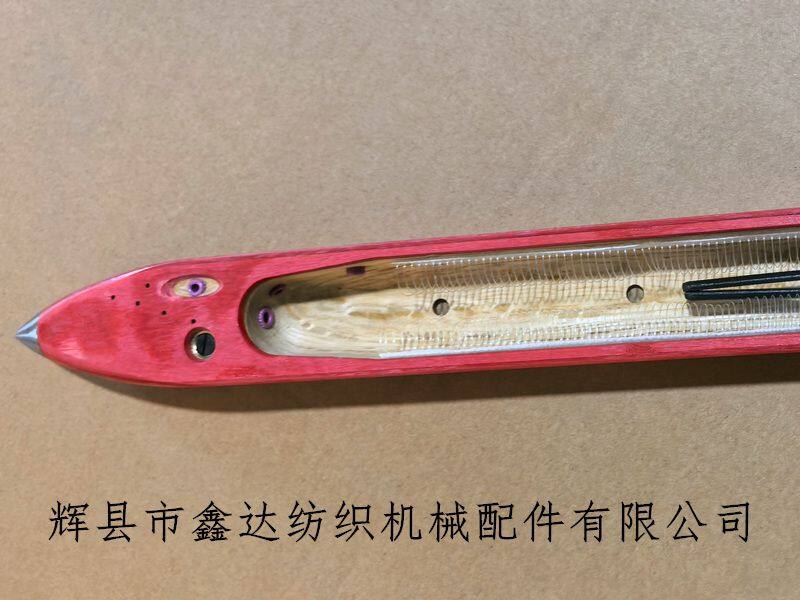

The above picture is a photo of the front part of the shuttle; There are four pink porcelain eyes on the top of the shuttle, made of aluminum oxide material, with locking screws to fix the living bell, and a detachable small shuttle tip is used for the shuttle tip. Textile wooden equipment 365 * 35 * 25mm silk woven wooden shuttle (with movable bell) is divided into left and right hands, as shown in the following picture.

365mm Silk Loom Shuttle China Wooden Shuttle Textile Accessories.
