Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides P106R Picker (Large) For Shuttle Loom Picking Knot Textile Rubber Spare Parts, P106R-1 Picker(Large) Nylon Rubber Product, nylon tongue rubber and plastic leather. The shape parameters of this P106 leather knot (picker) are: the total length is 100mm, the outer width of the bottom is 27mm, the height of the leather knot is 45.5mm, the total height (including polymer nylon tongue) is 52mm, and the thickness of the picking tongue is 10mm.
The distance between the vertical surface of the picker tongue and the edge of the leather knot picking end is 17mm, the other surface (arc) of the nylon tongue is 60.5mm from the upper plane of the tail, and the effective length of the upper hitting groove is 47.5 mm.Weaving Shuttle Loom Picking Knot Textile Rubber Spare Parts,Textile Accessories,Rubber and Plastic Picker.
The included angle between the two sides of P106R-1 picker and the bottom is a right angle (90), which means that they are not divided into left and right hands. The number of P106R-1 (large leather knot) used in each loom is two (one on the left and one on the right). Packing of large picking knot P106: carton, 200 pieces/box, minimum order quantity is 1000 pieces, and the weight of a single picking knot P106 is about 76g.
If weaving factories or enterprises in various cities need to purchase P106R leather knots, Loom Picker, picking knots, nylon leather knots, textile and rubber parts and other products, please get in touch with Mr. Yang of our company. We sincerely welcome you to come.

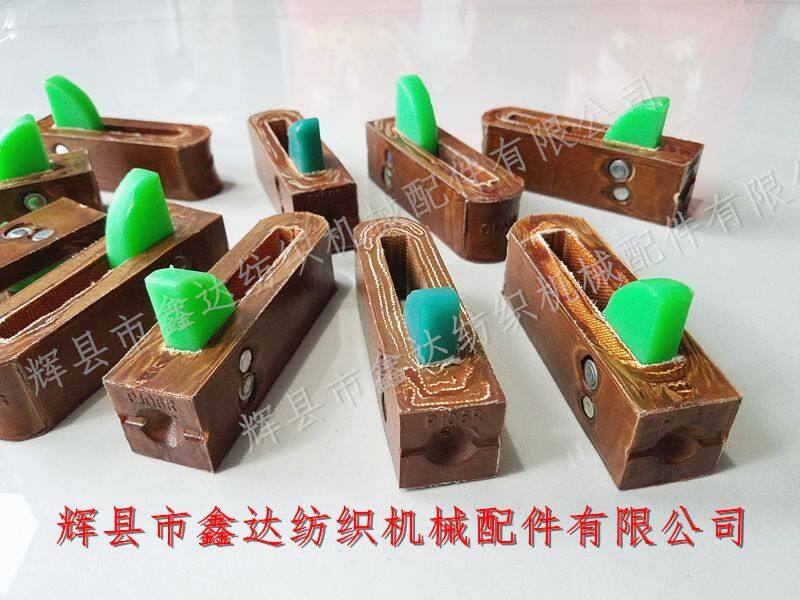

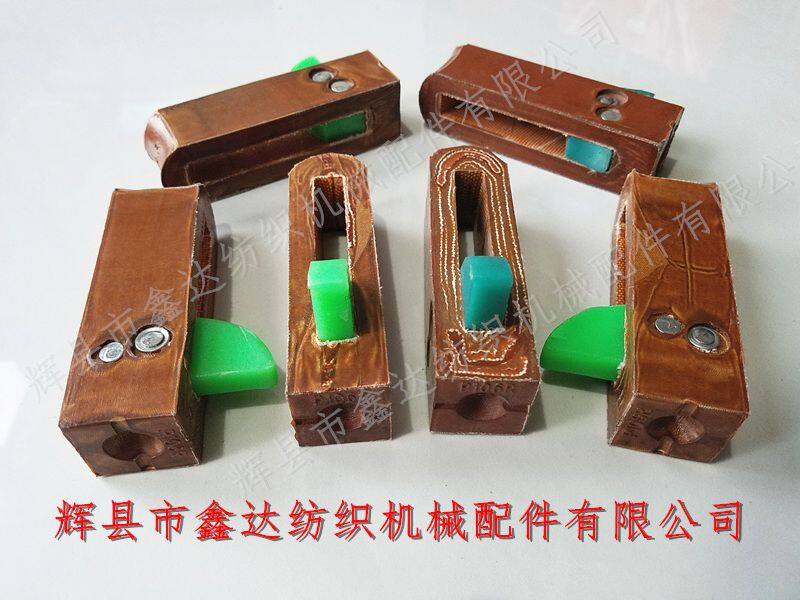

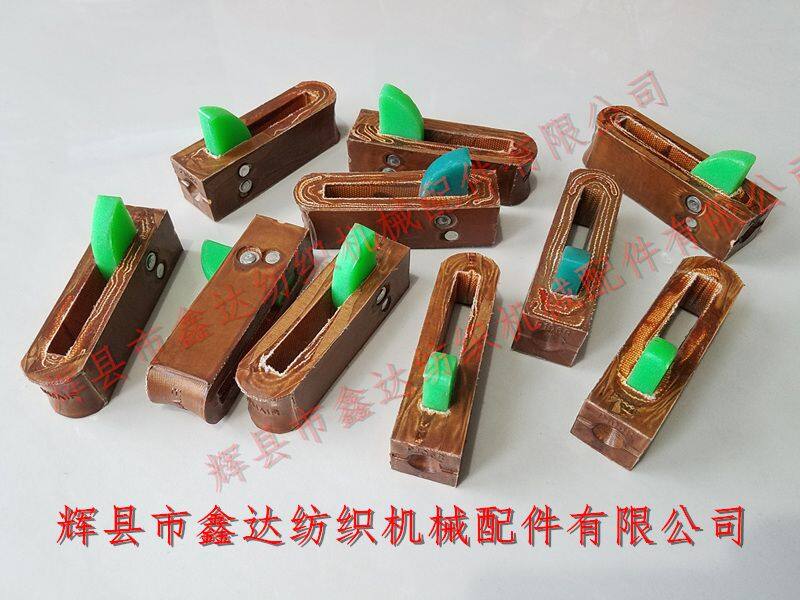

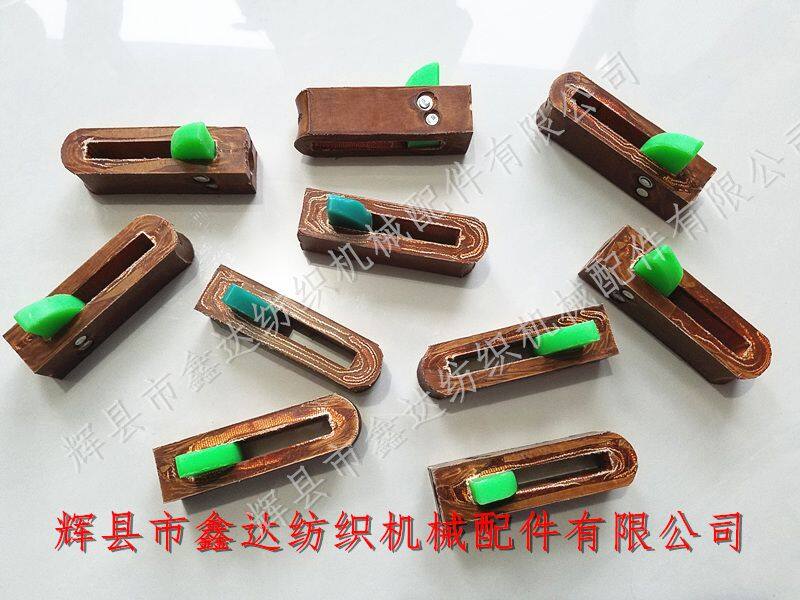

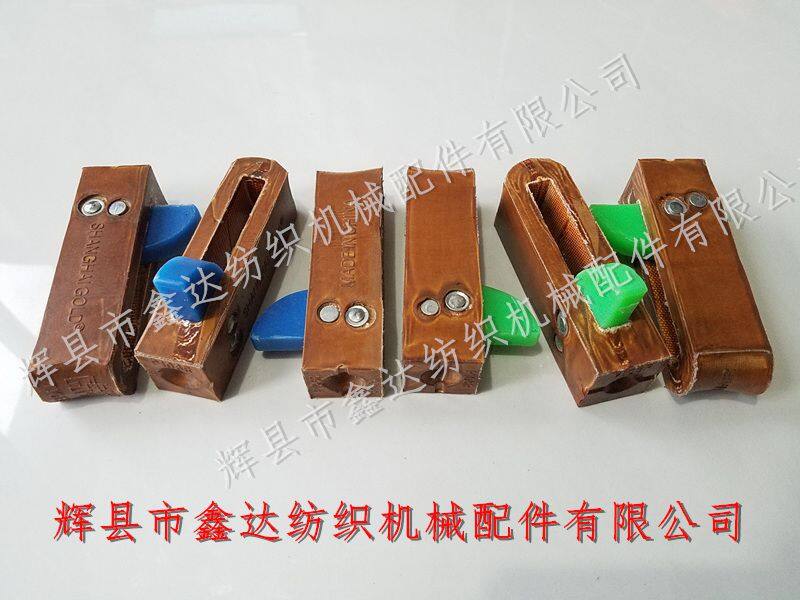

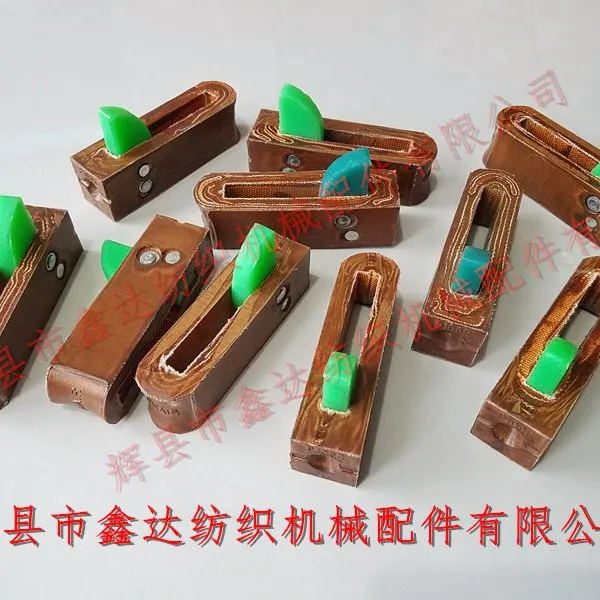

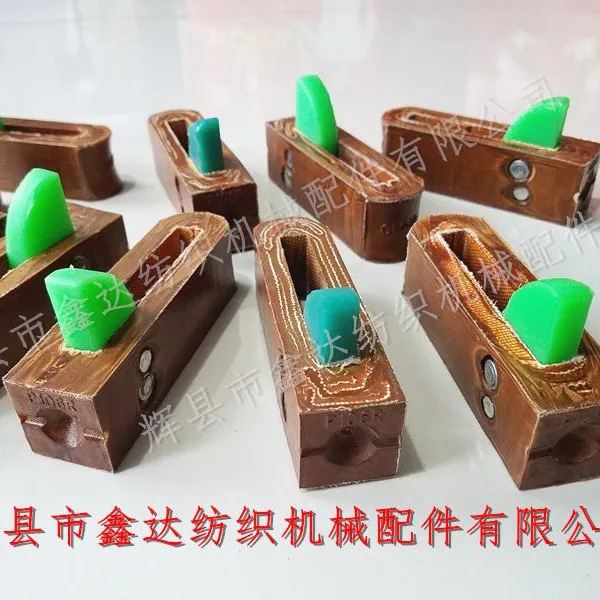

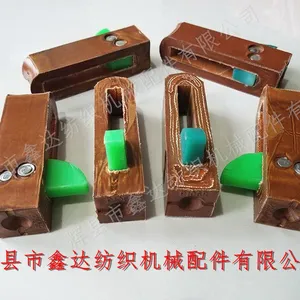

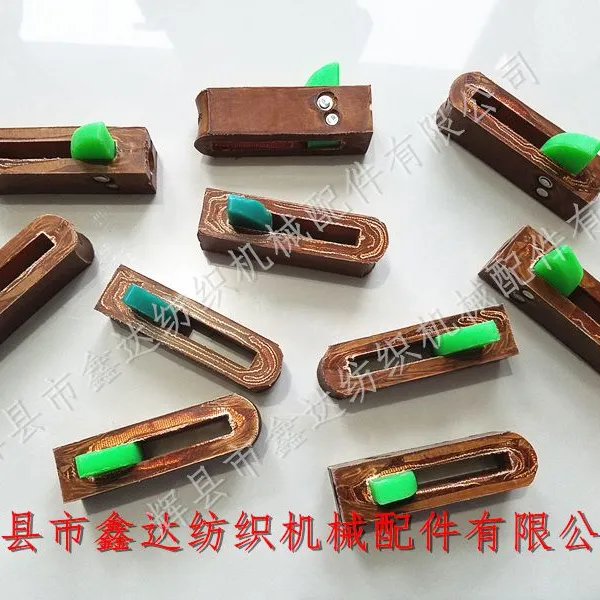

The tongue of the P106 loom picker in the above picture has two colors: green and light blue, and their models and specifications are the same. The tongue of the nylon picker is riveted on the leather knot by two rivets, and the cloth layer and rubber are evenly arranged. P106R-1 leather knot belongs to textile rubber and plastic parts or textile leather equipment, and its peripheral waist length is 97.5mm..
