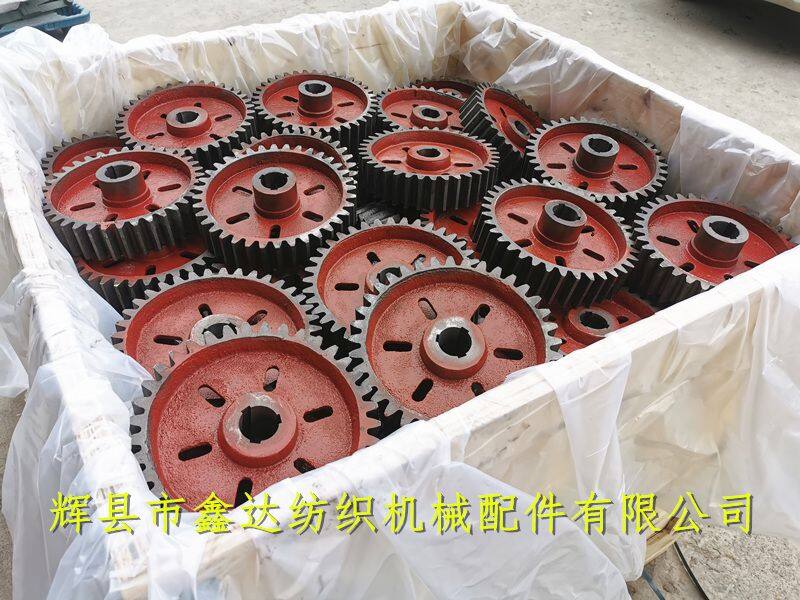

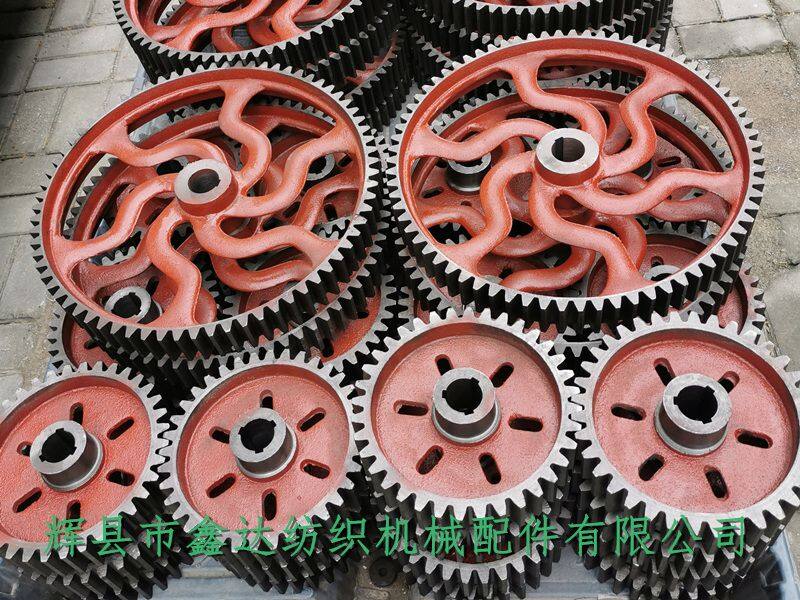

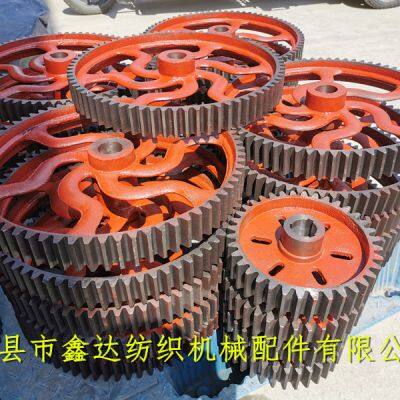

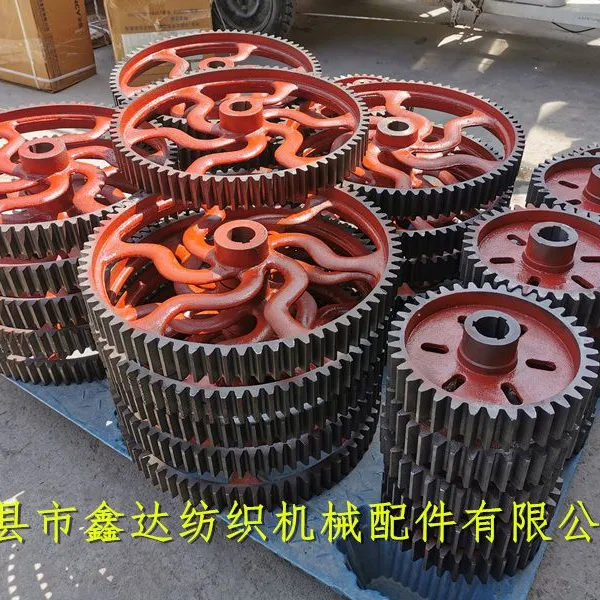

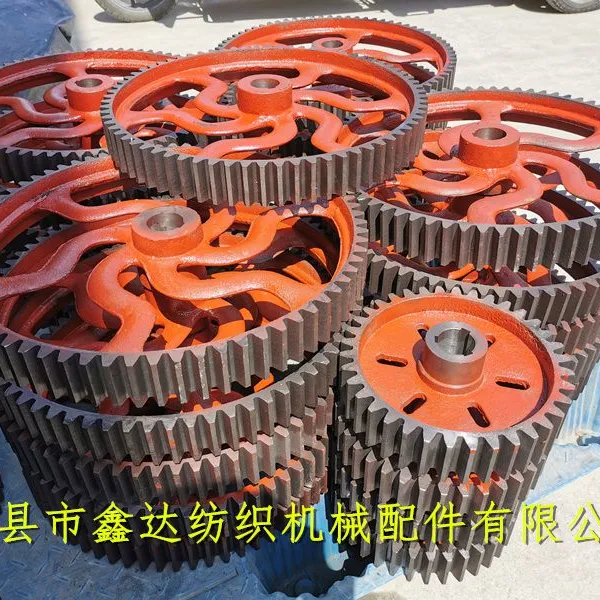

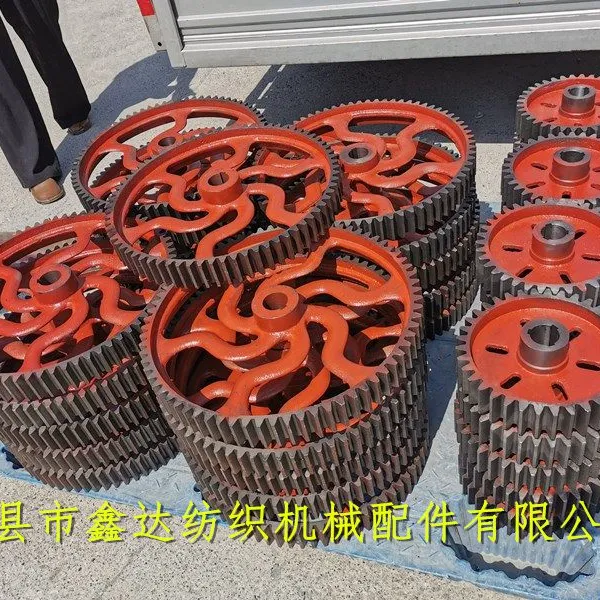

GH8 Shuttle Loom Parts 36 Tooth Crank Shaft Gear And 72 Tooth Tappet Shaft Wheel, Huixian Xinda Textile Machinery Parts Co., Ltd. has long provided inch D7 bent shaft gear(Crank Wheel) Toyota loom parts 36 tooth wheel milling teeth, made of ductile iron, processing technology: milling teeth, the number of teeth of the Japanese Toyota loom gear (Crank shaft gear) is 36, the module is 6.25, the diameter of the inner hole is 38mm, the keyway is M10, the depth is 2.4mm, the outer diameter of the curved shaft gear is 239mm, the thickness is 7.8cm, and the outer diameter of the middle protruding cone is 73mm. GH-8 Loom Parts-Crank Wheel and Tappet Shaft Wheel.

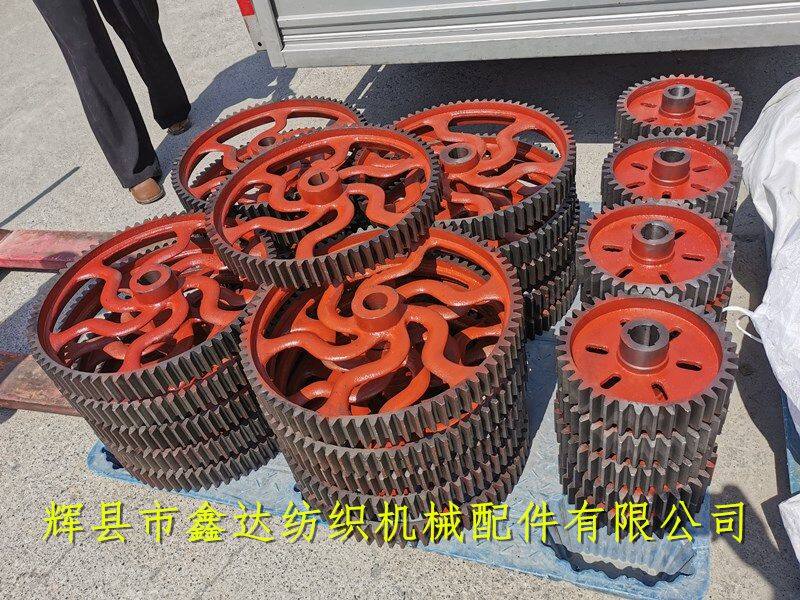

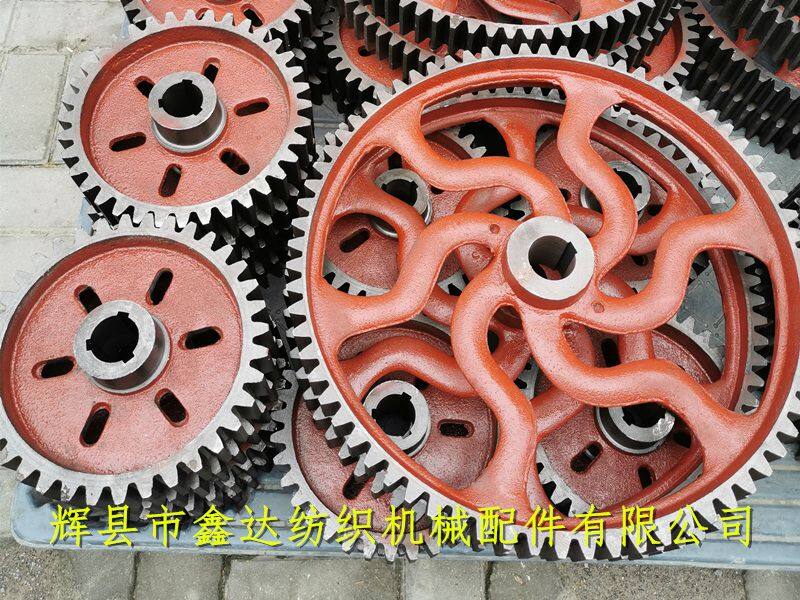

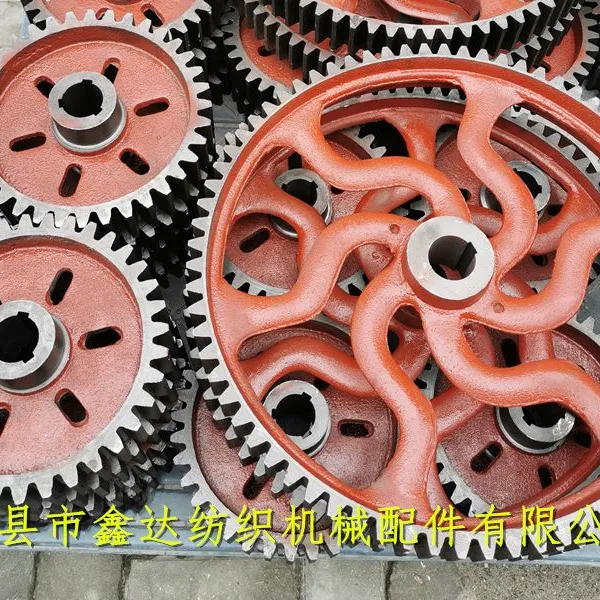

The three keyways of British D7 are in the same straight line with the six screw fixing grooves on the gear plane. The 36 tooth wheel is installed on the crank shaft (bending shaft) of the loom and connected with the 72 tooth E2 tread plate shaft gear. Loom D7 teeth casting and milling, 1515 bent shaft gear 3210, GH-8 Toyota loom accessories, GH-9 teeth milling gear, textile gear and other kinds of diverse, welcome to draw or sample processing customized.

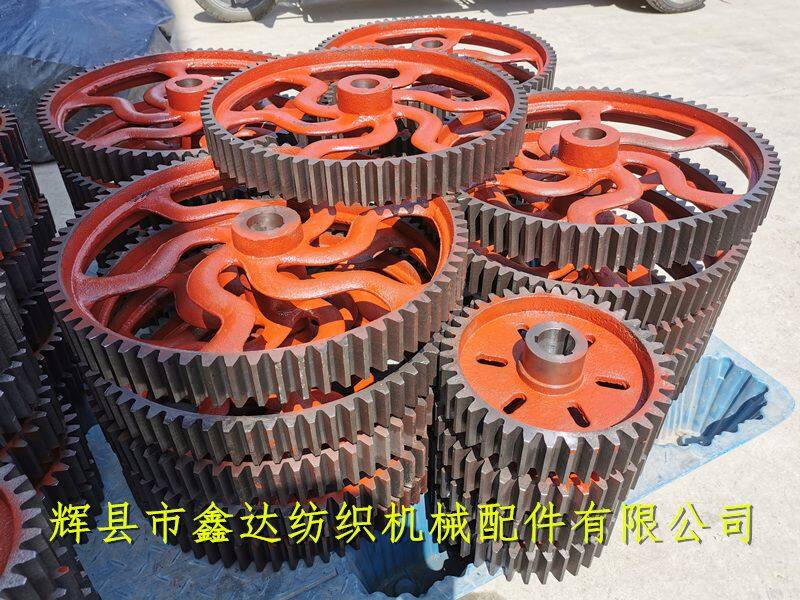

72 teeth textile gear for E2 loom treadmill shaft gear of shuttle loom. Note: E2 is 72 teeth, 0204 is 76 teeth, and the treadmill shaft gear used for 1511 and 1515 looms is a general-purpose textile accessory with 72 teeth.
Tappet Shaft Wheel,Pedal Shaft Gear,Textile Gear,Textile Accessories,Loom Gear, Before milling, the textile gear is cast with nodular iron material ratio, and the abrasion of the upper part of the teeth shall not exceed 1.6mm. Tooth missing and broken are not allowed.
The colors of 1515 textile accessories, E2 loom tread shaft gear and 1511 type 72 tooth textile gear are divided into green and red. Green is cast from pig iron and red is processed from nodular iron.
Textile Machinery Parts-GH8 Shuttle Loom Parts 36 Tooth Crank Shaft Gear And 72 Tooth Tappet Shaft Wheel.
