Huixian Xinda Textile Machinery Parts Co., Ltd. provides shuttle parts for ribbon weaving machines with handle glass rings (with tail guide yarn rings),Handle Glass Ring Ribbon Loom Shuttle Part (Textile Yarn Guide Ring Equipment), Handle Glass Ring Ribbon Loom Shuttle Part. The tail handle rod of the glass ring is used to fix the tension spring on the shuttle of the ribbon weaving machine. The handle glass ring is generally located on both sides of the shuttle cavity, and the tailless glass ring is installed on the middle guide yarn rod.

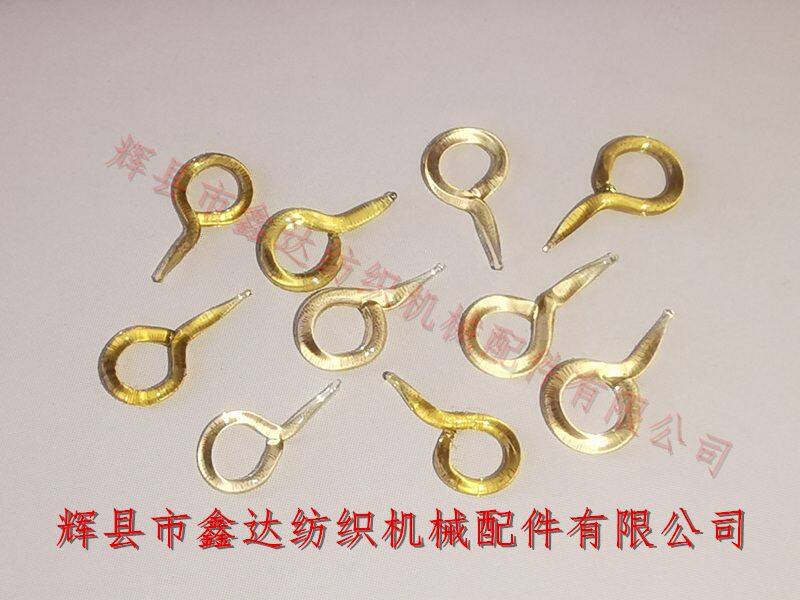

The total length of the glass ring with tail is 10.6mm, the outer diameter of the glass ring is 6mm, the inner hole diameter is 3.5mm, and the thickness is 1.4mm.
The weft yarn material used for the ribbon weaving machine has high requirements for the guide yarn, and the glass ring has the characteristics of smoothness and wear resistance, so it is often used as the guide yarn accessory for the hat belt machine shuttle.

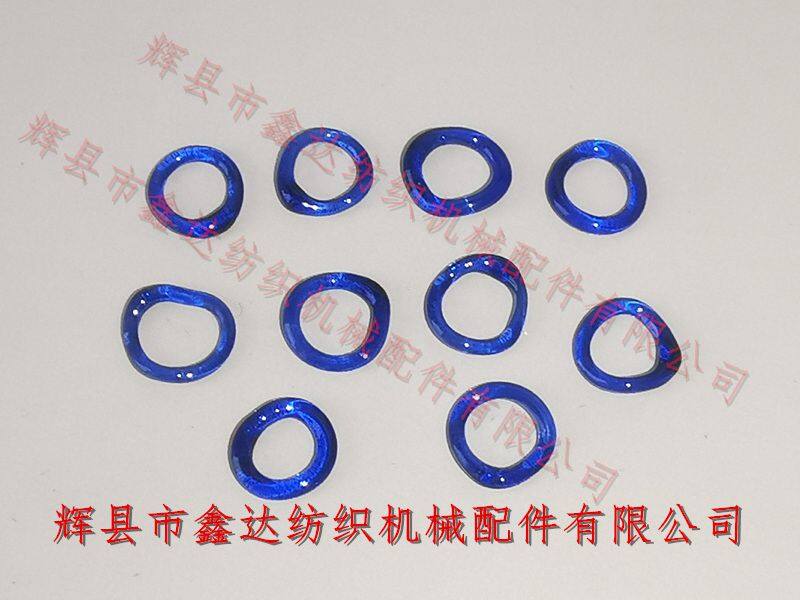

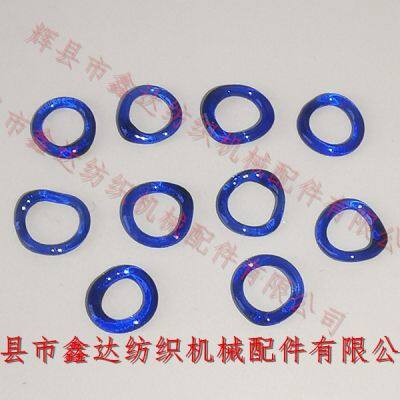

The outer diameter of the blue glass ring is 6.4mm, the inner hole diameter is 4.3mm, and the thickness is 1.4mm.

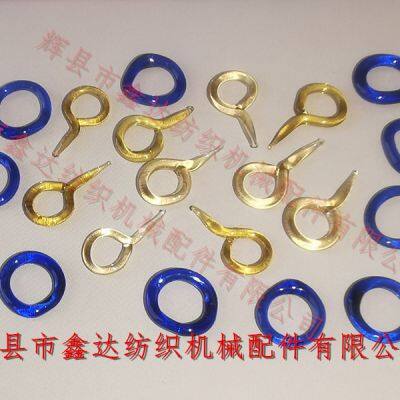

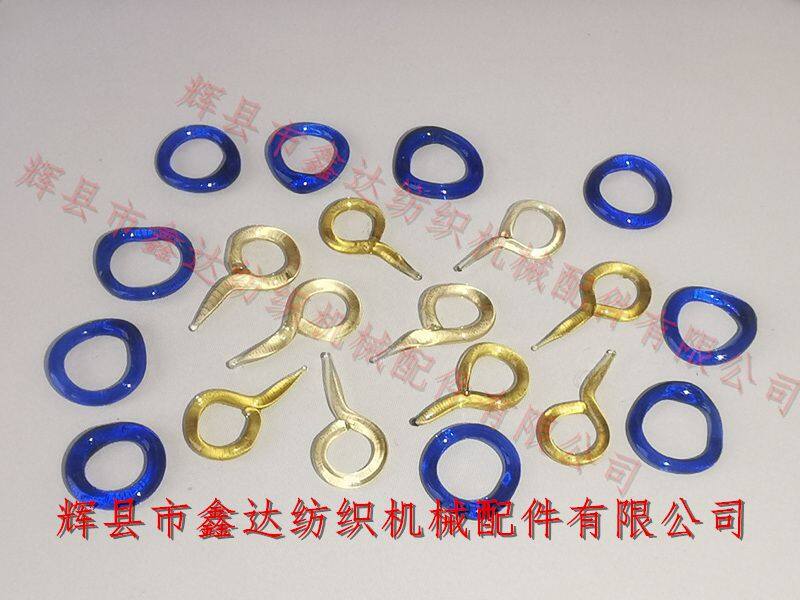

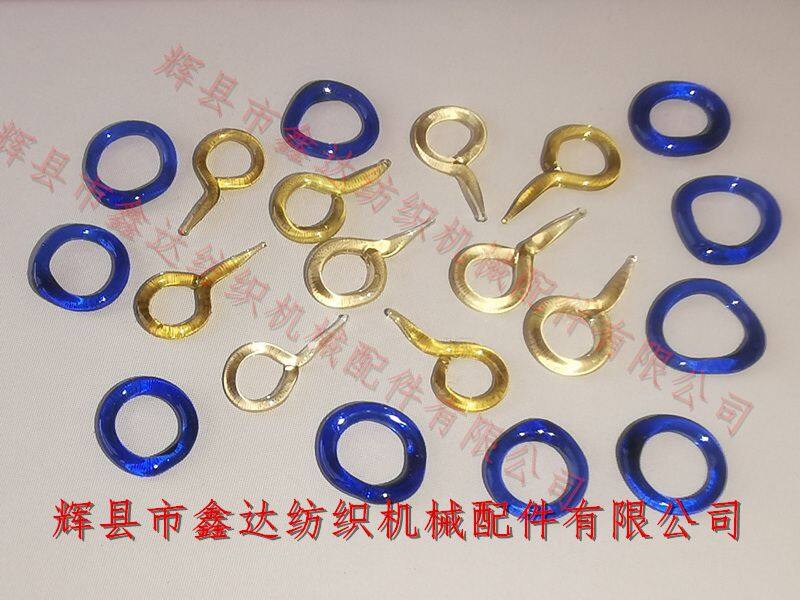

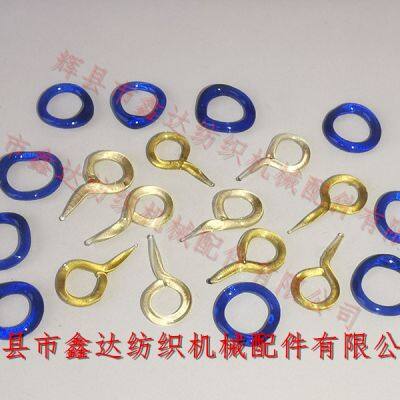

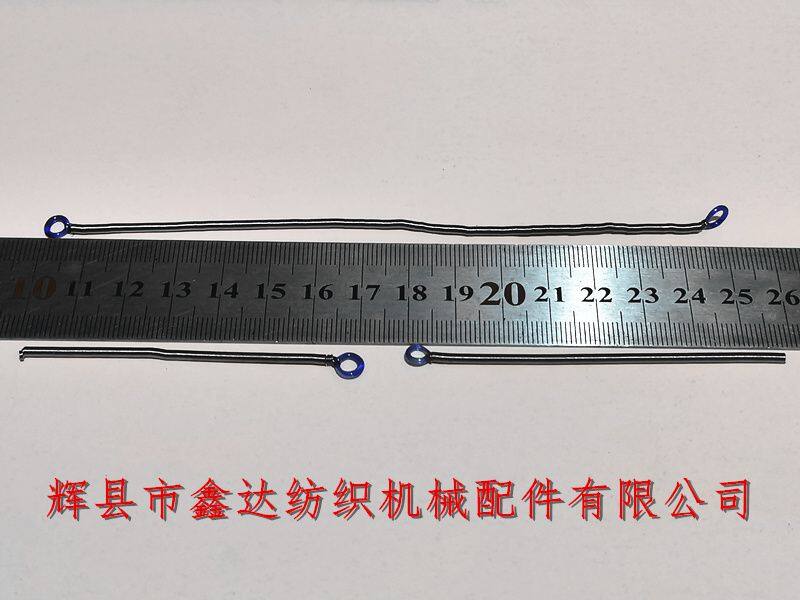

The material of the glass ring is glass, which is an accessory for the weaving machine shuttle and belongs to the textile equipment category. The above picture is a detailed photo of the glass ring. A 2mm diameter spring is inserted into the tail handle rod and rotates to clamp the glass ring.
Handle Glass Ring Ribbon Loom Shuttle Part (Textile Yarn Guide Ring Equipment).
