Help CenterShoelace Tip Covering Machine
Related Products
-
Semi-automatic Shoelace Tipping MachineNegotiableMOQ: 1 Carton -
Full-automatic Shoelace Waxing and Polishing MachineNegotiableMOQ: 1 Carton
-
Non-film of Shoelaces of Header MachineNegotiableMOQ: 1 Carton
-
Shoelace Tipping MachineNegotiableMOQ: 1 Unit
-
Fully Automatic Shoelace Waxing MachineNegotiableMOQ: 1 Piece

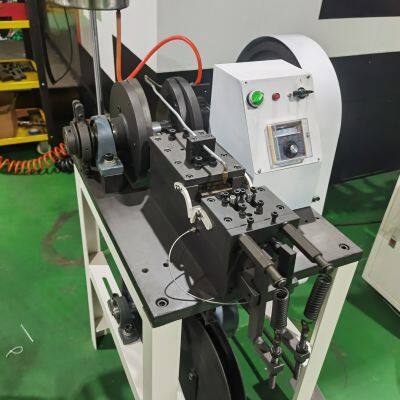

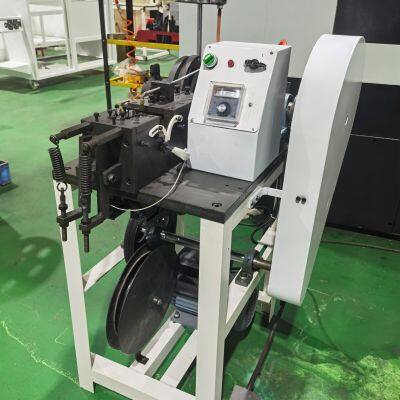

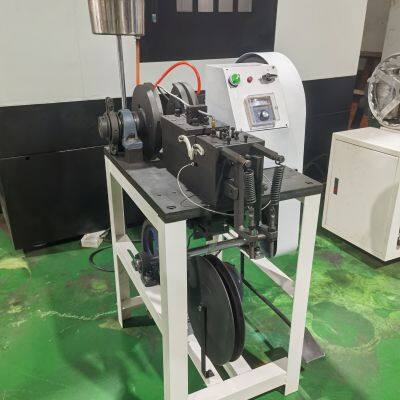

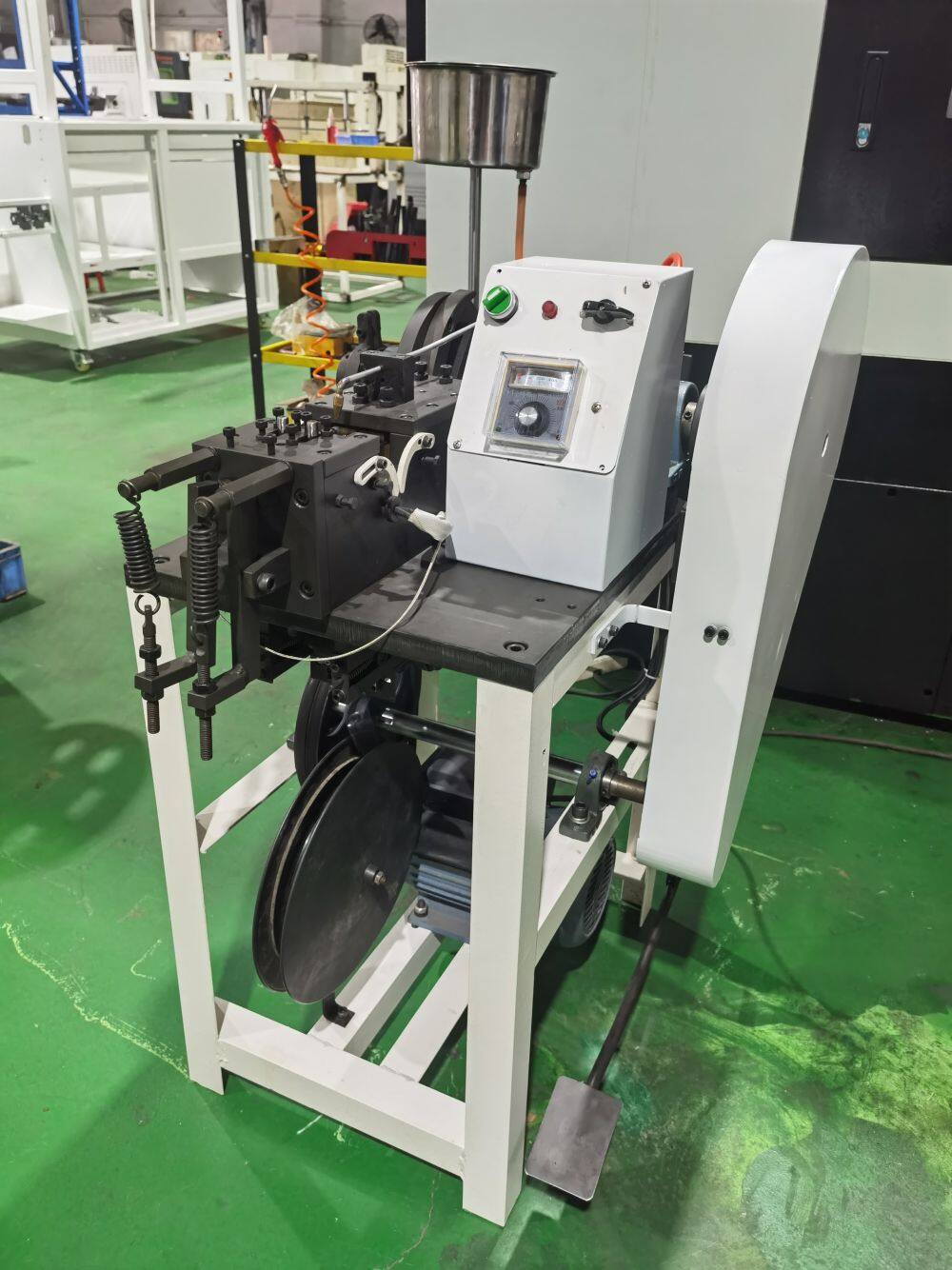

The semi-automatic shoelace tipping machine excels in film tip-cutting with reliable working hours and the highest efficiency. It features special safety devices, extended mold lifespan, and compatibility with both regular and graphic films. With a sturdy structure and noiseless operation, it can be connected to voltages ranging from 220V to 380V, ensuring safe operation. It is ideal for prototyping and small-batch production, capable of handling various specifications. It is suitable for tipping general garment tapes, shoelaces, pattern-printed films, and handbag straps. The semi-automatic shoelace tipping machine is tailored for small-batch production and prototyping, with the following characteristics:

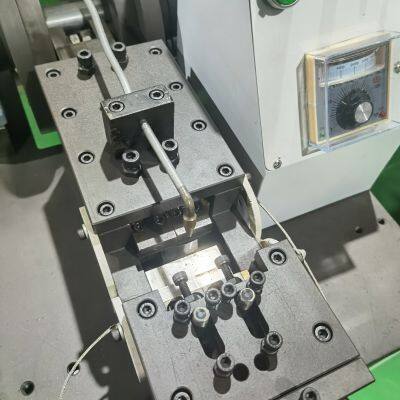

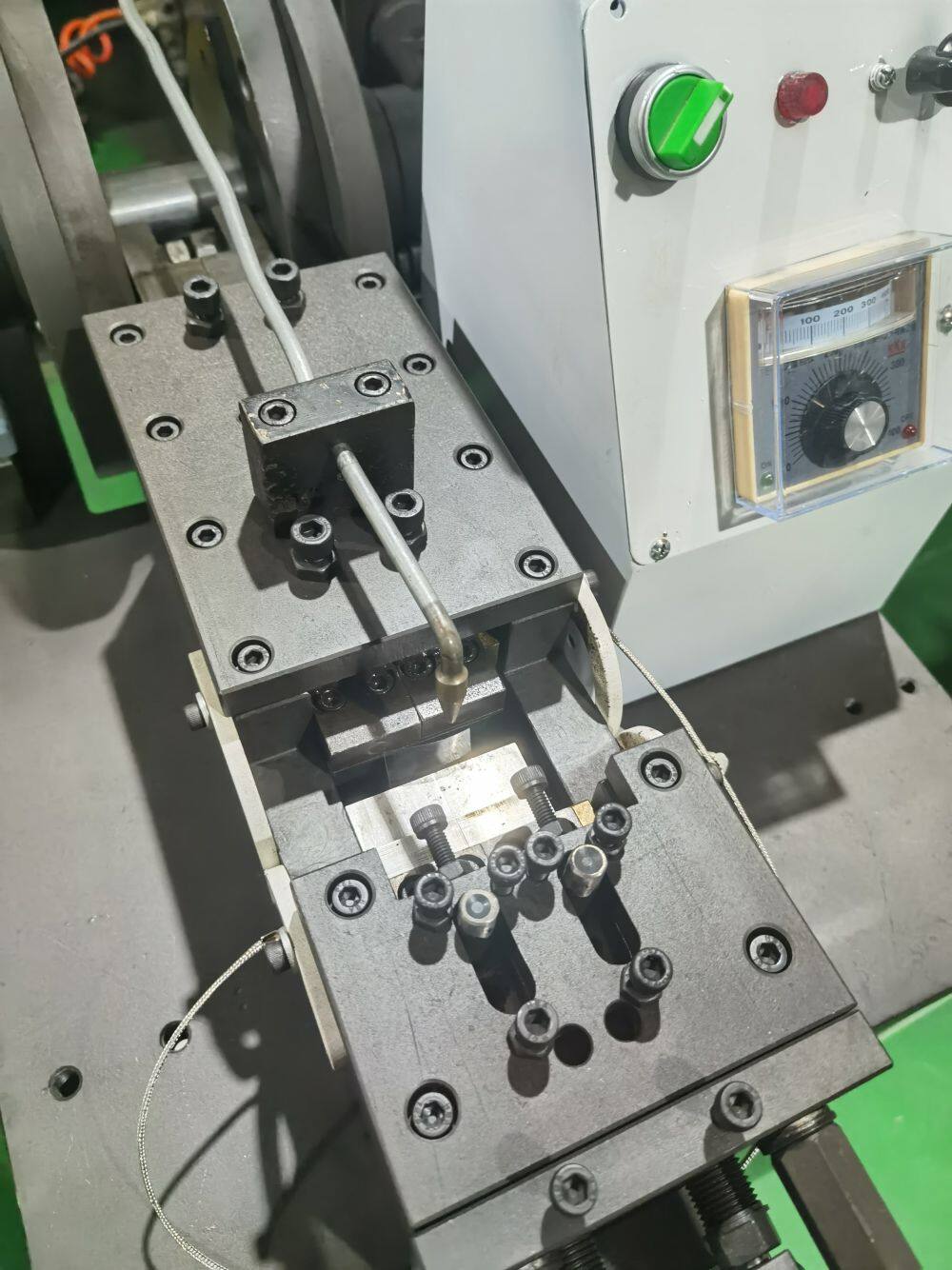

Automatic temperature adjustment, typically set between 50°C and 60°C, maintaining a stable temperature once the set point is reached.
Main motor overload protection function.
Equipped with special safety devices for extended mold lifespan.
Sturdy structure and safe operation.
Phase sequence protection to prevent damage to machine components due to reverse phase. The machine will not start if the wiring is reversed and requires rewiring for correct phase sequence.
Automatic shutdown when no film is present to prevent idle running and reduce wear and tear.
Product Specifications:
Plastic sheet material for tipping: Cellulose acetate butyrate
Plastic sheet adhesive solvent: Acetone
Power: 1.5KW
Die size: 1.8~7.0mm
Net weight: 179KG
Machine dimensions: Length 570mm * Width 750mm * Height 950mm
