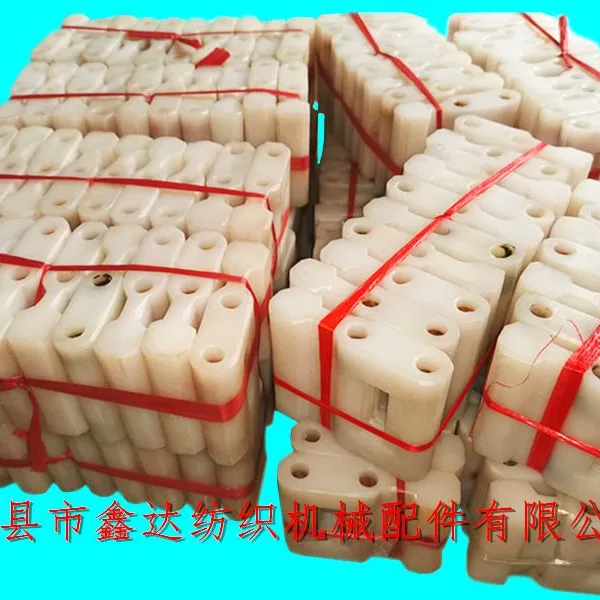

B9-3 Multi Loom Picker Dobby And Multi Machine Nylon Spare Parts

B9-3 Multi Loom Picker Dobby And Multi Machine Nylon Spare Parts, Huixian Xinda Textile accessories has long provided 1515 picker multi shuttle nylon picker,1515 loom leather knot (picking knot, code), textile code, multi shuttle picker, Plastic Picker , 1515 picking knot and various plastic textile equipment products. Series B textile picker is the picking knot used by Dobby And Multi shuttle loom.

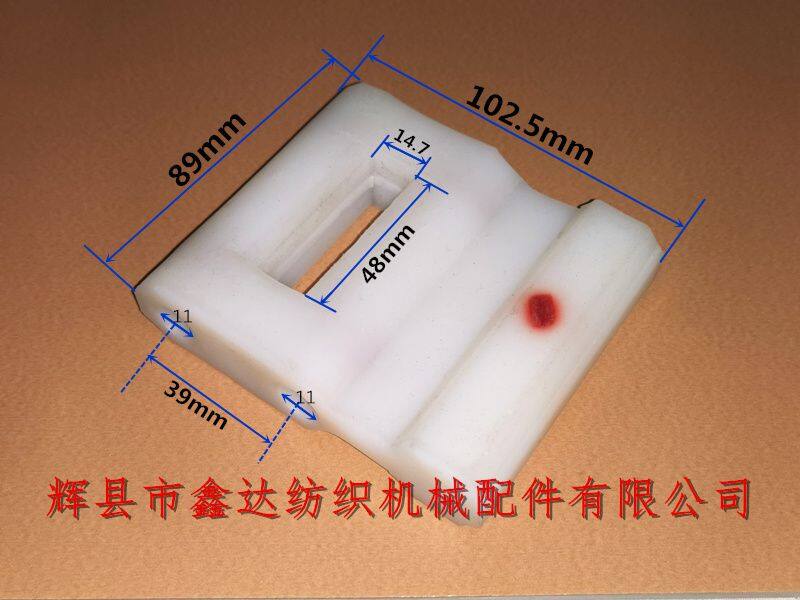

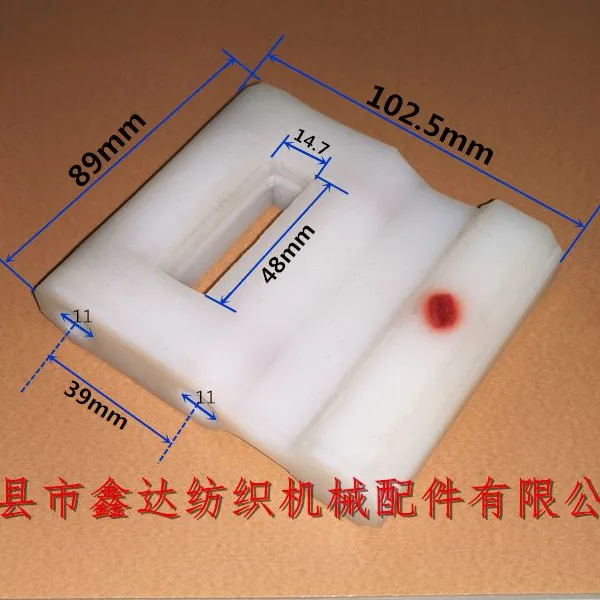

They are produced and processed with nylon polymer materials. The overall dimensions of B9-3 plastic leather knot are: length 103mm, width 86mm, and the thickness of the picking part is 24.5mm, The thickness of the guide rod hole of the loom code is 24mm, and the inner dimension of the shuttle chute is 48mm long and 14.7mm wide.

The diameter of the two guide rod holes of the B9-3 (Plastic Picker, Nylon Picker) multi shuttle fitting is 11mm, and the center distance between the two holes is 38.5mm. The white leather knot has four holes as a whole, and nylon sleeves are embedded inside the holes to enhance its wear resistance. The thickness of the connecting part of the middle depression is 12mm, which is to impact the shuttle by sliding on the guide rod to complete the picking operation.

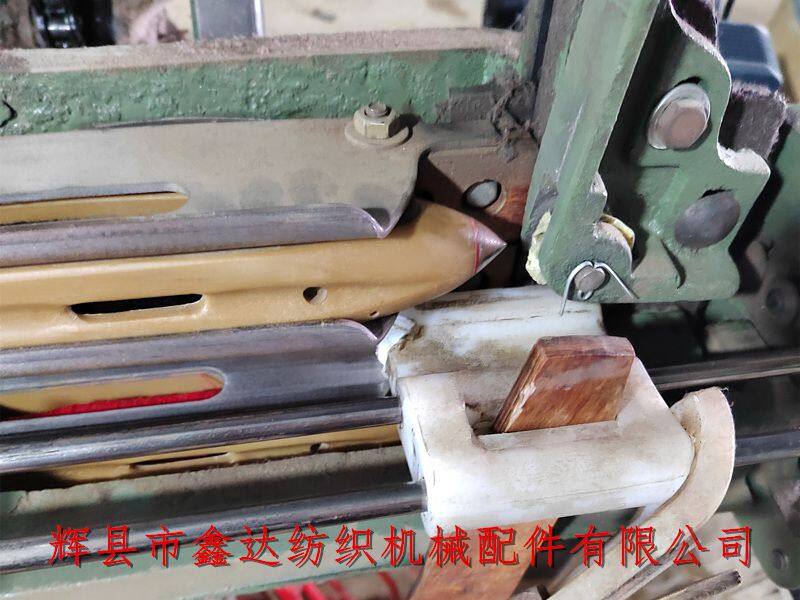

Multi shuttle devices are commonly used on looms of models 1515 and GA615 (1x4 multi shuttle looms and 4x4 multi shuttle looms). They are mainly used to weave fabrics made of weft yarns of various colors.

They are commonly used on ethnic fabric machinery such as plaid cloth, scarf, PU, Mu Zi cloth, etc. the device principle used for weft fabrics of different materials is the same. Some fabrics need to be properly modified and upgraded.

B9-3 Multi Loom Picker Dobby And Multi Machine Nylon Spare Parts, Shuttle Loom Picker, Pull Plate Textile Nylon Multi Loom Picker-Plastic Picker and Nylon Picker.
