Loom Copper Sleeve Accessories

Huixian Xinda Textile machinery accessories provides all kinds of old shuttle loom accessories, domestic textile machine parts, including 1511 loom sleeve, GA615 cloth loom copper bush, 1515 nylon bush, textile accessories, handle bearing bush, bending shaft copper sleeve, D23 spherical bearing copper sleeve, d1xd2 plug cloth machine wall plate copper sleeve, 3207x3208 hand holding copper sleeve and other kinds of shuttle loom general accessories.

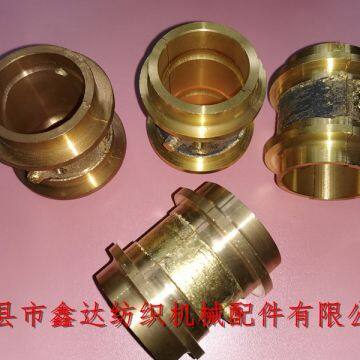

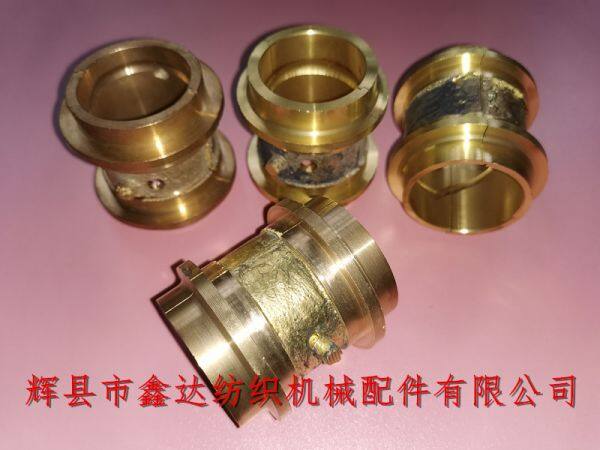

The copper sleeve bearing bush fittings d1xd2 of shuttle textile machine have a diameter of 38mm. The copper bush Bush accessories d1xd2 are mainly used for plug type loom equipment. They are fixed on the wall panels on both sides of the loom to ensure that the bending shaft of the loom rotates horizontally on the wall panel. Oil or grease should be added when installing copper parts, copper accessories of loom and copper sleeve of shuttle loom to prevent high temperature The bearing bush is burnt.

The outer edge diameter of D1x2 is 57mm, the thickness is 3.3mm, the diameter of two processing surfaces is 50mm, the total height is 91mm, the weight of single loom copper sleeve d1xd2 is 0.55kg, and there are double oil grooves inside.

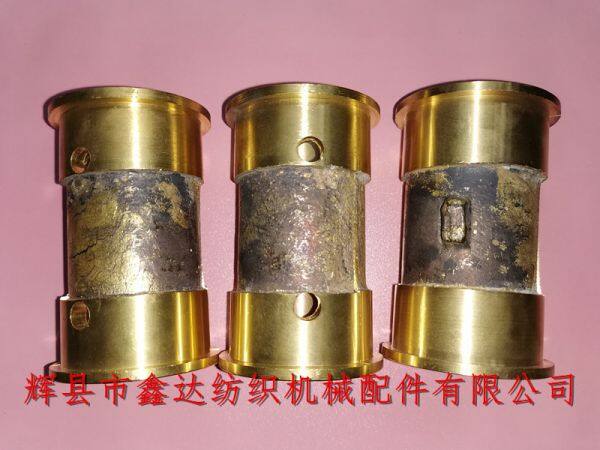

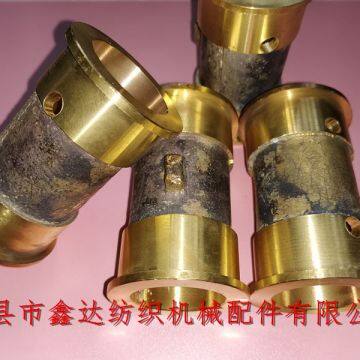

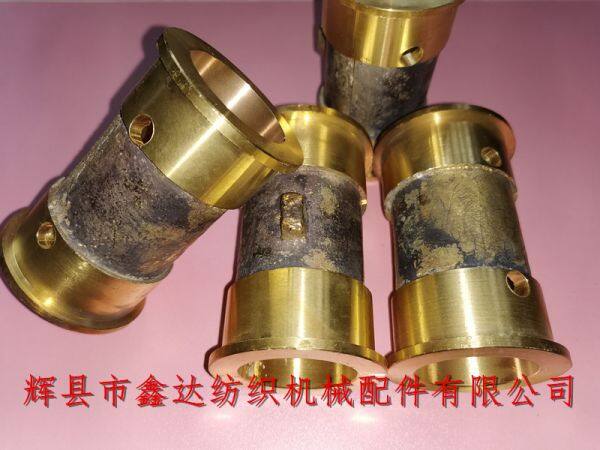

The convex position at both ends of D1x2 copper sleeve of loom is the outer edge of copper bush, which can prevent the copper sleeve from moving left and right in the wallboard of loom; the middle raised square platform is matched with the gland to prevent the copper bush from rotating with the crankshaft. There are many kinds of accessories for bearing bush of textile machine, and the requirements for bearing bush are also different due to different uses and installation positions.
