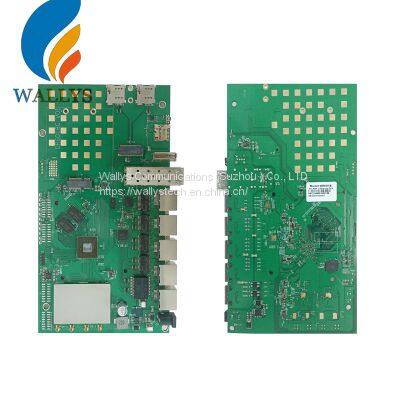

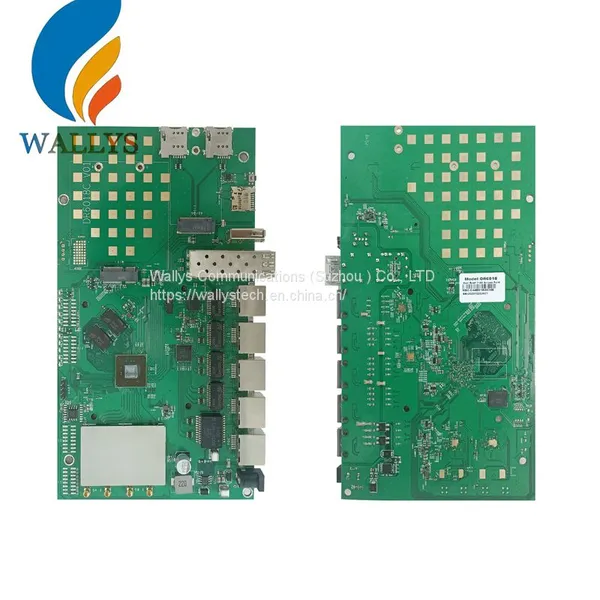

Wallystech wifi6 router DR6018C V01/Quaclomm IPQ6010/IPQ6018 OpenWRT QCN9074 WiFi 6E Card 2.4G&5G
Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook. (Web:wallystech com)
Skype/EMAIL:sales@wallystech.com
APPLICATIONS
+ Profi WiFi hotspot coverage
+ Commercial radio coverage
+ Hotel Wireless application
+ Country coverage
+ Internet for passengers (bus, train, plane, …)
+ Security Surveillance
+ Some special scene application
+ Heavy-duty industrial environment use

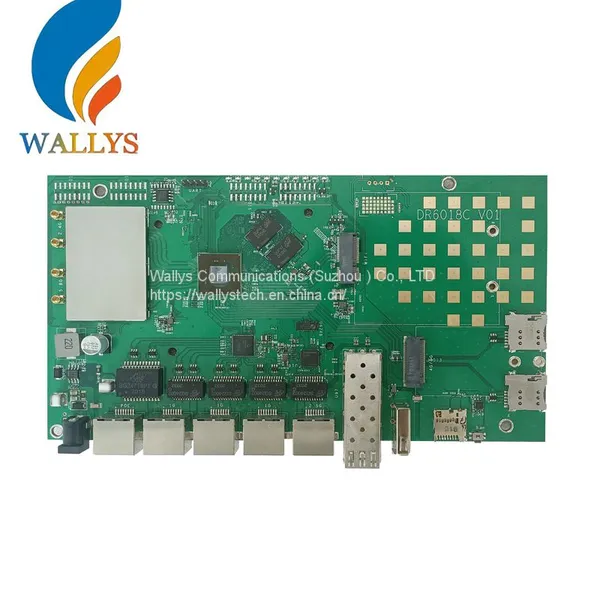

DR6018C V01
Support OpenWRT, Support:QUECTEL RM500Q-GL&Support:QCN9074 WiFi 6E Card
Support OpenWRT IPQ6010 802.11ax 2x2 2.4G&5G 2.5Gbps Ethernet Port SFP
Qualcomm-AtherosIPQ6010
Quad-core ARM 64bit A53 @1.8GHz Processor
1GB DDRL3L System Memory
32MB NOR Flash, 256MB NAND Flash
Supports Dynamic Frequency Selection (DFS)
2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate
2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate
Support: QUECTEL RM500Q-GL
Support: QCN9074 WiFi 6E Card
Absolute Maximum Rating
Parameter
Rating
Unit
Supply Voltage
24V~48
V
Operating Temperature Range
-40 to +70
ºC
Storage Temperature Range
-45 to +105
ºC
Operating Humidity Range
5 to +95 (non-condensing)
%
Hardware Specifications
Symbol
Parameter
CPU
Qualcomm-Atheros IPQ6010
CPU Frequency
Quad-core ARM 64 bit A53 @1.8 GHz processor
System Memory
1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design
Ethernet Port
1 x 1Gbps Ethernet Ports & POE3 x 1Gbps Ethernet Ports , 1x 2.5Gbps Ethernet Port
SFP Port
1x SFP port
NGFF Slot
M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0
SD Card Slot
1x SD Card Slot
USB /header
1x USB 2.0 Port
POE
24V~48V passive POE/Active POE(Suport 802.3bt)
DC Jack
24V power supply
LED header
FFC/FPC Connector
Serial Port
1x Serial Port 4 Pin Connector
Wireless
On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain
On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain
4 x MMCX Connectors
Bluetooth
CSR8811 BLE 4.2
Nor Flash
32MB
Nand Flash
256MB
DDR
256MB~512MB
Dimension
185mm x 116mm
Radio TX Specifications(5180MHz-5825MHz)
Operating Mode
Data Rate
Power
Tolerance
1 Chain
2 Chains
5Ghz 802.11ax HE20
MCS0
20dBm
23dbm
±2dB
MCS1
20dBm
23dBm
±2dB
MCS2
20dBm
23dBm
±2dB
MCS3
20dBm
23dBm
±2dB
MCS4
19dBm
22dBm
±2dB
MCS5
18dBm
21dBm
±2dB
MCS6
17dBm
20dBm
±2dB
MCS7
16dBm
19dBm
±2dB
MCS8
15dBm
18dBm
±2dB
MCS9
14dBm
17dBm
±2dB
MCS10
13dBm
16dBm
±2dB
MCS11
13dBm
16dbm
±2dB
5Ghz 802.11ax HE400
MCS0
20dBm
23dbm
±2dB
MCS1
20dBm
23dBm
±2dB
MCS2
20dBm
23dBm
±2dB
MCS3
20dBm
23dBm
±2dB
MCS4
19dBm
22dBm
±2dB
MCS5
18dBm
21dBm
±2dB
MCS6
17dBm
20dBm
±2dB
MCS7
16dBm
19dBm
±2dB
MCS8
15dBm
18dBm
±2dB
MCS9
14dBm
17dBm
±2dB
MCS10
13dBm
16dBm
±2dB
MCS11
13dBm
16dbm
±2dB
5Ghz 802.11ax HE80
MCS0
20dBm
23dbm
±2dB
MCS1
20dBm
23dBm
±2dB
MCS2
20dBm
23dBm
±2dB
MCS3
20dBm
23dBm
±2dB
MCS4
19dBm
22dBm
±2dB
MCS5
18dBm
21dBm
±2dB
MCS6
17dBm
20dBm
±2dB
MCS7
16dBm
19dBm
±2dB
MCS8
15dBm
18dBm
±2dB
MCS9
14dBm
17dBm
±2dB
MCS10
13dBm
16dBm
±2dB
MCS11
13dBm
16dbm
±2dB
Radio TX Specifications(2412MHz-2482MHz)
Operating Mode
Data Rate
Power
Tolerance
1 Chain
2 Chains
2.4Ghz 802.11ax HE20
MCS0
23dbm
26dbm
±2dB
MCS1
23dBm
26dBm
±2dB
MCS2
23dBm
26dBm
±2dB
MCS3
23dBm
26dBm
±2dB
MCS4
23dBm
26dBm
±2dB
MCS5
23dBm
26dBm
±2dB
MCS6
23dBm
26dBm
±2dB
MCS7
22dBm
25dBm
±2dB
MCS8
21dBm
24dBm
±2dB
MCS9
21dBm
24dBm
±2dB
MCS10
18dBm
21dBm
±2dB
MCS11
17dbm
20dbm
±2dB
2.4Ghz 802.11ax HE40
MCS0
23dbm
26dbm
±2dB
MCS1
23dBm
26dBm
±2dB
MCS2
23dBm
26dBm
±2dB
MCS3
23dBm
26dBm
±2dB
MCS4
23dBm
26dBm
±2dB
MCS5
23dBm
26dBm
±2dB
MCS6
23dBm
26dBm
±2dB
MCS7
22dBm
25dBm
±2dB
MCS8
21dBm
24dBm
±2dB
MCS9
21dBm
24dBm
±2dB
MCS10
21dBm
24dBm
±2dB
MCS11
19dbm
22dbm
±2dB
