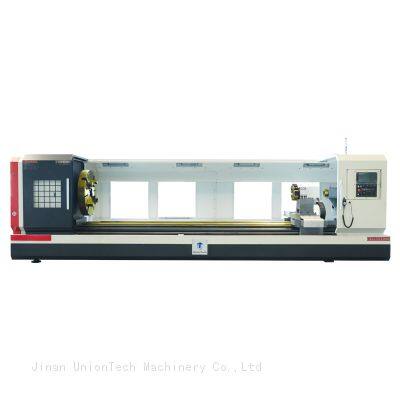

Cnc Lathe Machine CNC Turning Lathe Big Size Chuck CK61150 CK61125 Powerful CNC Lathe FANUC

Name: Cnc Lathe Machine CNC Turning Lathe Big Size Chuck CK61150 CK61125 Powerful CNC Lathe FANUC
Brand: UnionTech
Availability: InStock

FOB Price

US$ 16899 - 23599 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	UnionTech	Place of Origin	China
Model Number	CK61125X5000	Type	Horizontal
Certification	CE/SGS/ISO9001	After-sales Service Provided	Engineers available to service machinery overseas
Weight	3500KG	Dimension(LWH)	470020002200mm
Voltage	380V/3ph/50hz	Condition	New
Power(W)	11KW	Automatic Grade	Automatic
CNC or Not	CNC	Max. Swing Diameter	1250mm

Product Description

Cnc Lathe Machine CNC Turning Lathe Big Size Chuck CK61150 CK61125 Powerful CNC Lathe FANUC

Lathe

Main Technical Data	Unit	CK61125	CK61140	CK61150
Maximum turning diameter of the bed	mm	Φ1250	Φ1400	Φ1500
Maximum turning diameter on the pallet	mm	Φ850	Φ1000	Φ1100
Maximum Processing length	mm	1500/2000/3000	1500/2000/3000	1500/2000/3000
Spindle drive form		Fouth Gear	Fouth Gear	Fouth Gear
Spindle speed series		None
Spindle speed	r/min	30-84/53-150/125-350/300-835
Spindle head form		D11
Spindle hole front taper		Metric 120 1:20	Metric 140 1:20	Metric 140 1:20
Spindle through hole diameter	mm	105/130
Main motor power	kw	11/15	18/22	18/22
X/Z axis positioning accuracy	mm	0.025/0.03
Workpiece machining accuracy	mm	0.01/0.015
X fast moving speed	mm/min	4000
Z fast moving speed	mm/min	6000
Tailstock sleeve diameter	mm	100	160	160

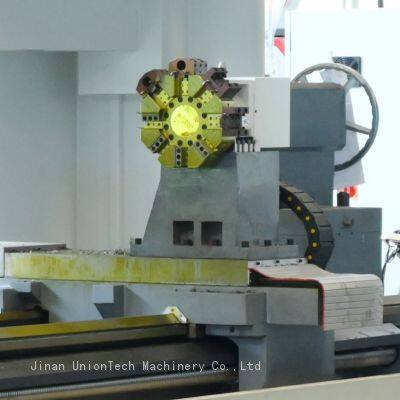

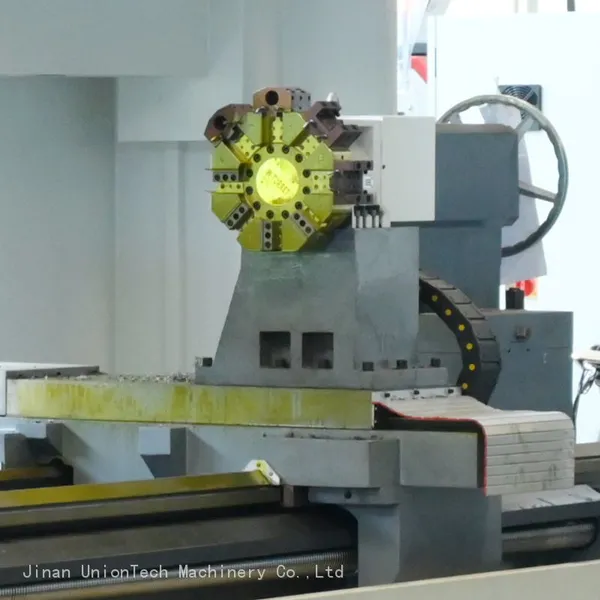

Tool Holder form		Motorized 4 - station
Tool holder maximum stroke X/Z	mm	40*40
Machine diamentions	mm	3700/4200/470020002200	4250/4750/525023002500	4600/5100/610023002600
Machine weight	kg	5.1/6.0/7.2	8.0/9.0/10.5	8.3/9.5/11.0

UnionTech Machinery Co., Ltd. is a comprehensive technology enterprise specializing in the development, manufacturing, sales, and service of CNC machine tools. The company has a professional technical team dedicated to the field of CNC machine tool manufacturing, which has set a new banner in the CNC machine tool industry with over ten years of technical experience. There are currently five mainstream product series: vertical machining center series, horizontal machining center series, CNC lathe, and gantry machining center series. The high-speed machining center machine in the vertical machining center series is our company's re promoted product. This series of machine tools has the characteristics of high speed, high rigidity, high performance, and high efficiency, and has quickly become the preferred machine tool equipment for industries such as communication, consumer electronics, automotive, and aerospace companies.

UnionTech Machinery Co., Ltd. is based and means on precision machining, precision testing, and precision assembly, persistently pursuing high-end technology, highend market, and high-efficiency goals, closely following the forefront of industry technology, high standards, high starting points, and strict requirements.

1. Your products look similar, but the prices are different. What's the difference? -The appearance are similar, but the models, parameters and configurations are different, so the prices are different. The better configuration, the higher prices. If you want to get an exact quotation, please contact customer service. 2. Can your offer customized service? -Yes, we can. Please provide the specification for the machine you need, and tell us your requirements. 3.With so many machine tools, how to choose one that suits me? -Please provide the requirements of the products you need to process: drawings, dimensions, size of workpeices etc. we will recommend the suitable model for you according to the products you need to process. 4. Is your machine tool 3-axis, 4-axis or 5-axis? -We have 3-5 axis machine tools, we need to know the size you need for 4th/ 5th rotary table, NC controller ,motor brand and models, so that we can offer the quotation to you.
