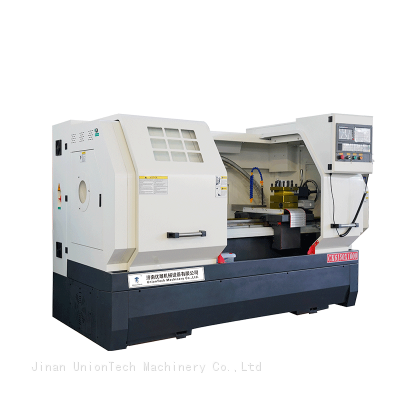

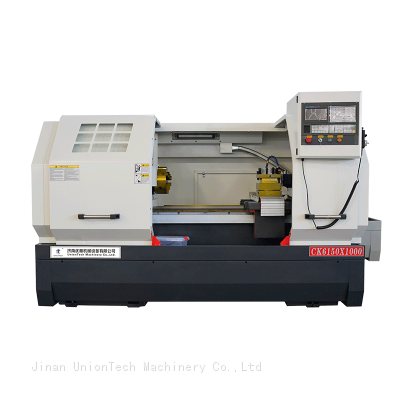

CNC Lathe Flat Bed CK6140 CK6150 Horizontal Metal Lathe Cutting Tools Lathe Machine

Name: CNC Lathe Flat Bed CK6140 CK6150 Horizontal Metal Lathe Cutting Tools Lathe Machine
Brand: UnionTech
Availability: InStock

FOB Price

5699 - 8500 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	UnionTech	Place of Origin	China
Model Number	CK6150	Type	Horizontal
Certification	CE/GKS/ISO9001	After-sales Service Provided	Engineers available to service machinery overseas
Weight	2000kg	Dimension(LWH)	250015001690mm
Voltage	380v/3ph/50hz	Condition	New
Power(W)	7500	Automatic Grade	Automatic
CNC or Not	CNC	Max. Swing Diameter	1500mm

Product Description

CNC Lathe Flat Bed CK6140 CK6150 Horizontal Metal Lathe Cutting Tools Lathe Machine

Specifications	CK6136	CK6140	CK6150	CK6160
Max. turning diameter on the bed	φ360	φ400	φ500	φ600
The Max. turning diameter of the puller	φ180	φ200	φ290	φ320
Max. processing length	750/1000/1500	750/1000/1500	750/1000/1500/2000	750/1000/1500/2000
Spindle end form	A2-6	A2-6	A2-8	A2-8
Spindle through hole diameter	52	52	82/105/130	82/105/130
Spindle hole front taper	MT5	MT5	MT6	MT6
Spindle motor power	5.5	5.5	7.5	7.5/11
Chuck size	200	200	250	250/320
Ball screw specifications	2006/4008	2006/4008	2506/4008	2506/4008
Fast moving speed (x/z)	X:6 Z:8	X:6 Z:8	X:6 Z:8	X:6 Z:8
Repeated positioning accuracy(X/Z)	±0.005	±0.005	±0.005	±0.005
Workpiece machining accuracy	IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7
Workpiece surface roughness	Ral.6	Ral.6	Ral.6	Ral.6
Tailstock sleeve diameter	60	60	75	75
Tailstock sleeve stroke	130	130	140	140
Tailstock sleeve taper	MT4	MT4	MT5	MT5
Rail form	Single+Flat Rails	Single+Flat Rails	Single+Flat Rails	Single+Flat Rails
Diameter	2150/2400/290015001650	250015001650	250015001690	260016001820
Machine weight	1800	1800	2000	2300

Performance characteristics of Flat Bed CNC Lathe

The machine is widely used in electrical appliances, instrumentation industry, automobile and motorcycle accessories, fastener bearing, phtotgraphic equipment, film machinery, hardware, various watches, cultural and educational supplies, motors, valves, gas pipes and other high-precision complex parts processing and manufacturing is the most ideal and efficient equipment in the hardware machinery processing industry.

UnionTech Machinery Co., Ltd. is a comprehensive technology enterprise specializing in the development, manufacturing, sales, and service of CNC machine tools. The company has a professional technical team dedicated to the field of CNC machine tool manufacturing, which has set a new banner in the CNC machine tool industry with over ten years of technical experience. There are currently five mainstream product series: vertical machining center series, horizontal machining center series, CNC lathe, and gantry machining center series. The high-speed machining center machine in the vertical machining center series is our company's re promoted product. This series of machine tools has the characteristics of high speed, high rigidity, high performance, and high efficiency, and has quickly become the preferred machine tool equipment for industries such as communication, consumer electronics, automotive, and aerospace companies.

UnionTech Machinery Co., Ltd. is based and means on precision machining, precision testing, and precision assembly, persistently pursuing high-end technology, highend market, and high-efficiency goals, closely following the forefront of industry technology, high standards, high starting points, and strict requirements.

1. Your products look similar, but the prices are different. What's the difference? -The appearance are similar, but the models, parameters and configurations are different, so the prices are different. The better configuration, the higher prices. If you want to get an exact quotation, please contact customer service. 2. Can your offer customized service? -Yes, we can. Please provide the specification for the machine you need, and tell us your requirements. 3.With so many machine tools, how to choose one that suits me? -Please provide the requirements of the products you need to process: drawings, dimensions, size of workpeices etc. we will recommend the suitable model for you according to the products you need to process. 4. Is your machine tool 3-axis, 4-axis or 5-axis? -We have 3-5 axis machine tools, we need to know the size you need for 4th/ 5th rotary table, NC controller ,motor brand and models, so that we can offer the quotation to you.
