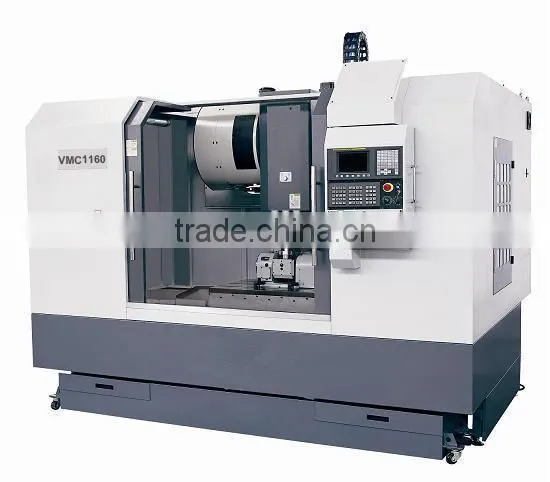

VERTICAL MACHINING CENTER VMC1160

Name: VERTICAL MACHINING CENTER VMC1160
Brand: TIMEWAY
SKU: 140796124
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

TIMEWAY

Model Number:

VMC1160

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMEWAY

Model Number VMC1160

Dimension(L*W*H) 3250x2500x2600mm

Weight 8560kg

After-sales Service Provided Engineers available to service machinery overseas

VERTICAL MACHINING CENTER VMC1160

Features:

1. Taiwan HIWIN linear guideways for X,Y axes, sliding guideway for Z axis, to make sure the machining accuracy and rigidity;

2. Taiwan high speed, high precision spindle unit (8000rpm);

3. Taiwan tool magazine with 24 stations, reliable and quick for tools exchange;

4. Cooling system adopts large fluid and high pressure coolant pump, to make sure the enough cooling under the high speed processing condition;

5. The machine adopts full close type protection guard, make the clean circumstance and safety of the operator.

6. Interval automatic type lubrication system is equipped, to make sure smooth process and long life.

Model	Unit	VMC1160
Table travel(X,Y,Z)	mm	1100x600x600
Table size	mm	1220x620
Number/Width/Distance of T-slot	mm	5-18-175
Max. load of table	kg	1000
Distance from spindle nose to table surface	mm	150-750
Distance from spindle axis to vertical guideway	mm	660
Rapid feed speed	m/min	18
Feed speed	mm/min	2.5-6000
Taper of spindle		BT40
Spindle speed range	rpm	40-8000
Spindle motor power	kw	7.5/11
Tool magazine capacity	pc	24
Max. weight of tool	kg	15
Max. dimension of tool	mm	150x300
Positioning accuracy	mm	±0.012
Repeat positioning accuracy	mm	±0.005
Min. time of tool exchange	sec	3
Overall dimension	mm	3250x2500x2600
Machine weight	kg	8560
