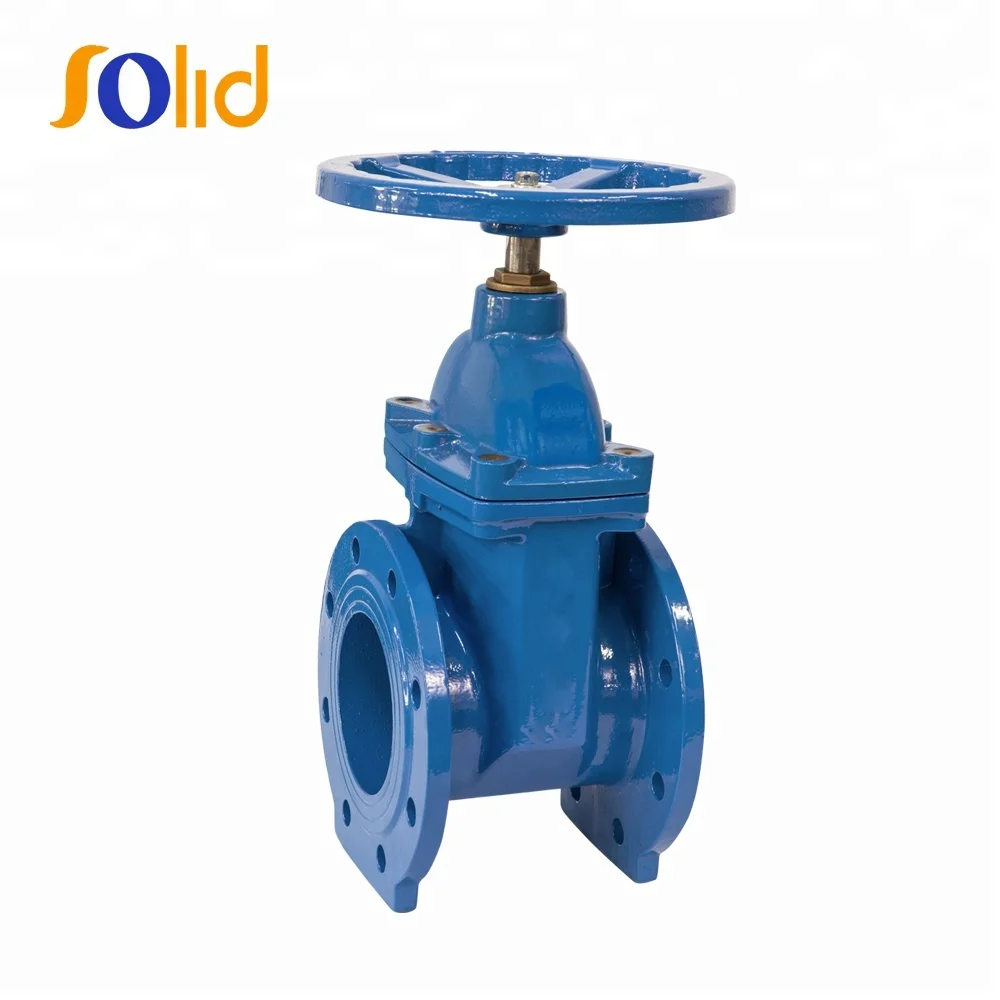

Help CenterDIN3352 Ductile Iron Cast Iron DIN3202 F4 Resilient Metal Seated Gate Valve Price List
Related Products
-
Ductile Iron PVC Socket Ends Non-rising Resilient Seated Sluice Gate ValveUS$ 10.00 - 100.00MOQ: 50 Pieces -
BS5163 Standard PN10,PN16 Ductile Iron GGG50 Rising Stem Resilient Seated Gate ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
-
PN16 DN100 Ductile Iron Resilient Seated Non Rising Stem Gate ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
-
DIN3352 F4 DN100 Ductile Iron GGG50 Resilient Seated Gate Valve Cast Iron Sluice Gate ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
-
China Manufacturer Low Pressure DI CI Non Return Spring Dual Plate Wafer Type Check ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
Resilient-seated gate valves according to European standard EN 1171 with straight, smooth and non-constricted passage. Internally enamel, externally EKB. For water, air and non-aggressive gases
Specification Details
Design Std:EN 1171
Size:DN40--DN1000
Pressure Rating: PN16,PN10
Seat: NBR,EPDM, VITON,PTFE,NEOPRENE
Face to Face: EN 558 Series 14(DIN 3202 F4)
Pressure Testing:DIN EN593/DIN EN12266-1
Body/Bonnet: Ductile iron EN-GJS-500-7/EN 1563
Flange Ends: DIN EN1092-2/Type B
Working temperature:-10 to +120℃
Gate Valve:
Standard |
DIN 3352-F4 ,DIN 3352-F5, BS5163, AWWA C509 ,AWWA C515 Flange drilling is according to DIN2501, BS4504 and ANSI B16.1 PN10,PN16,PN25 |
Type |
Flanged End , Socked End ,Mechanical Joint, non rising stem / rising stem |
Material |
Body: Ductile iron GGG40/50 or Cast IronGG25 Wedge : Ductile iron GGG40/50+EPDM/NBR or metal seated Stem: stainless steel 2Cr13 , SS304,SS316 Bolt and Nuts : Carbon Steel with zinc plated or SS304,316 |
Coating |
Internal and external with fusion bonded epoxy coating min250μm |
