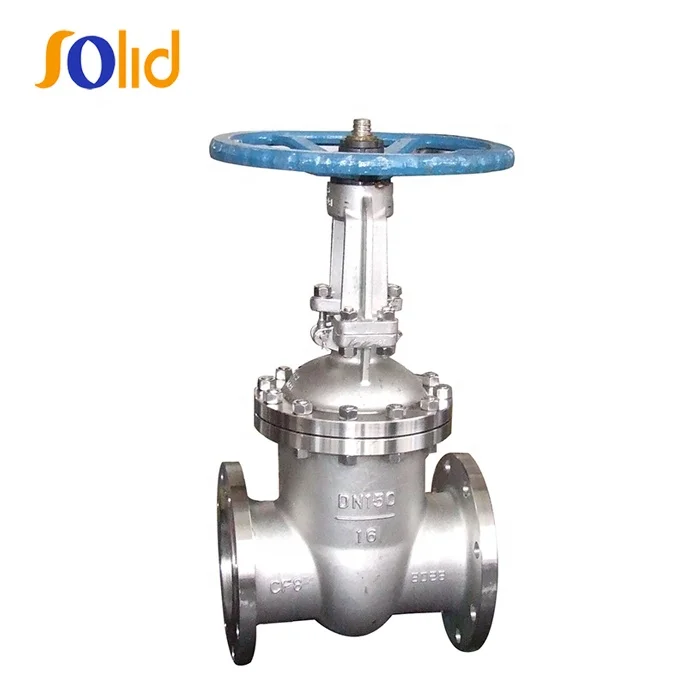

Class150~2500 Supply Forged Manual Flanged Carbon Steel Gate Valve
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN,QINGDAO,SHANGHAI
Delivery Detail:
15 days
Related Products
-
ANSI Class 300 ASTM A216 WCB Body Flanged Gate Valve With PricesNegotiableMOQ: 50 Pieces -
API600 150LB - 1500LB Industrial Flange Water WCB/CF8M/CF8 RF Gate Valve ManufacturerNegotiableMOQ: 50 Pieces
-
ANSI Flanged CLASS 150 WCB Body A216 Steel Gate ValveNegotiableMOQ: 50 Pieces
-
API DIN Standard Wcb/Stainless Steel Gate/Globe/Check/Butterfly/Ball Valve Steel ValveNegotiableMOQ: 50 Pieces
-
Gear Operated Carbon Steel Body and 304 Plate Water Flanged Knife Gate ValveNegotiableMOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Product Description
| Valve construction: | Outside screw&Yoke,Bolted Bonnet,Rising/Non-rising stem |
| Connection: | Thread,Flange,BW.SW |
| Nominal PRESS: | PN10,PN16,PN25,PN40,PN64.Class150 Class300 Class600 Class900 Class1500 Class2500 |
| Valve Body Material: | A105 A105N F304 F316 F304L F316L F321Ti F316Ti F5 F11 F22 LF2 LF3 |
| Seal Material: | A105,SS304,SS316,Stellited Facing.Hard facing. |
| Medium TEMP: | -56ºC-+580ºC |
| Working Medium: | air, steam, water, gases, oil, dust, corrosive medium, etc. |
| Driver Connection: | ISO 5211 or customerized made |
| Valve Inspection: | API598,ISO/DIN 5208-1987 |
| Standards: | GB,DIN,ANSI,JIS |
| Application Field: | Water,Oil Gas etc... |
Features:
(1), Full size or reduced size design
(2), Three bonnet types: bolted, welded, self-sealing
(3), sealing surface is not easy to wear, abrasion, good sealing performance, long life
(4), compact structure, good opening and closing, small height, convenient maintenance.
(5), Inverted sealing of the body
(6), Simple in shape, short face-to-face length, good technic in producing, and widely applied

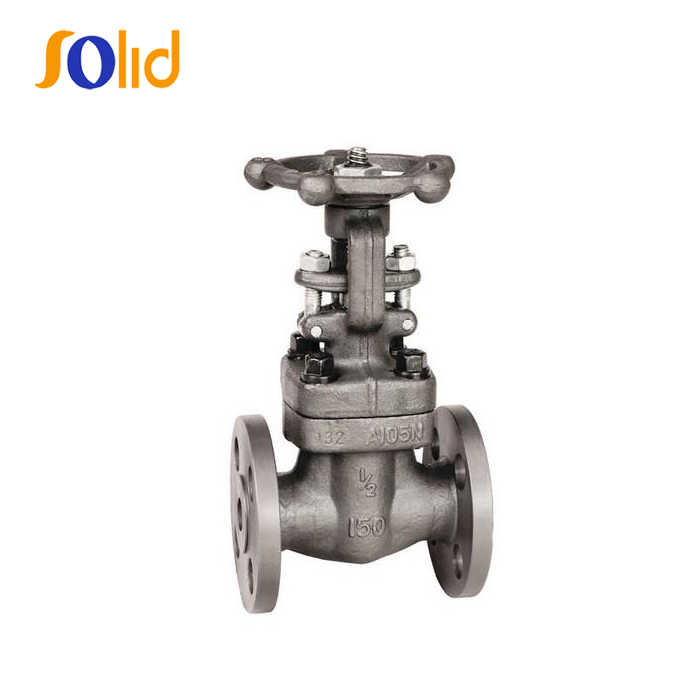

Detailed Images
