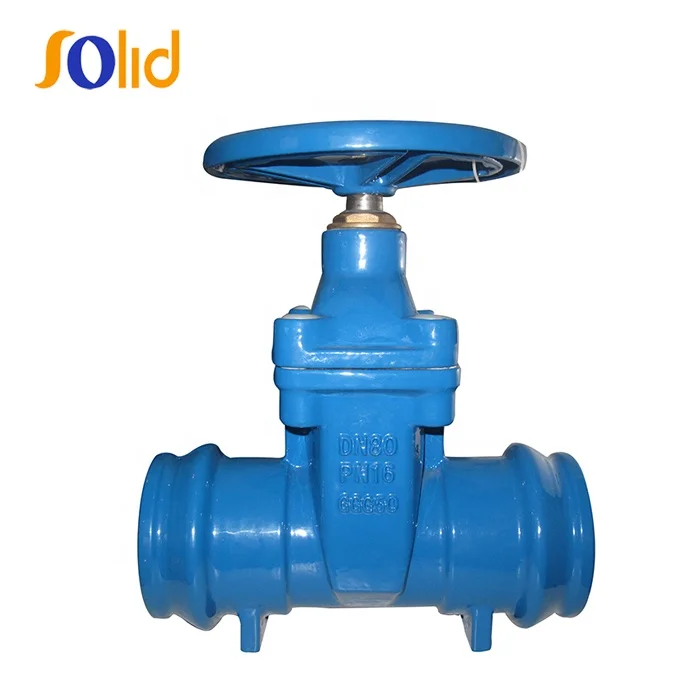

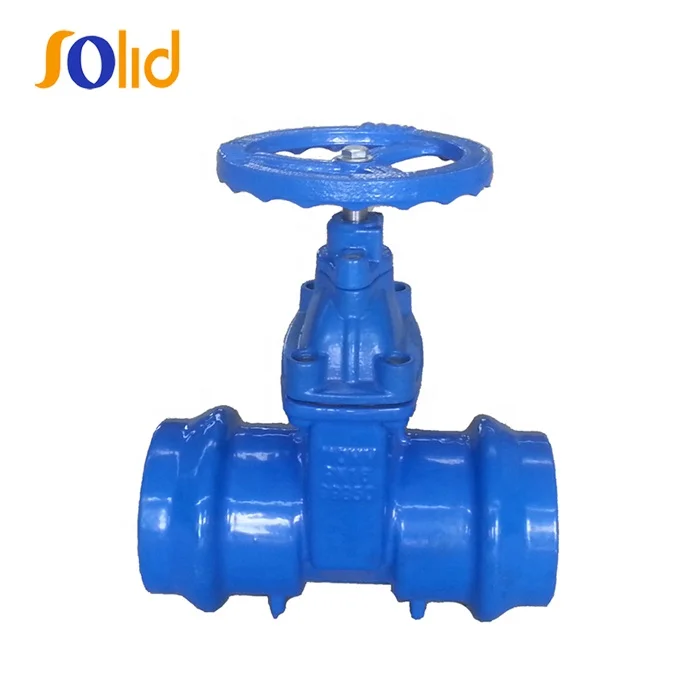

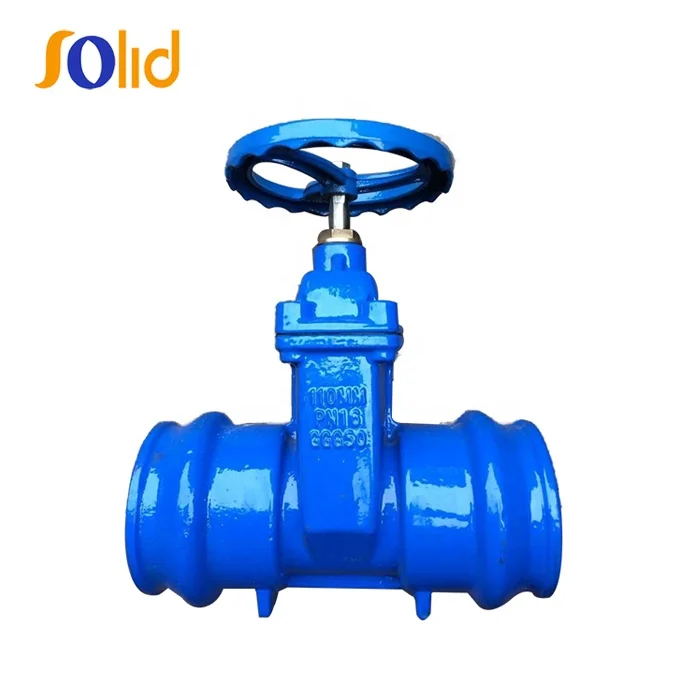

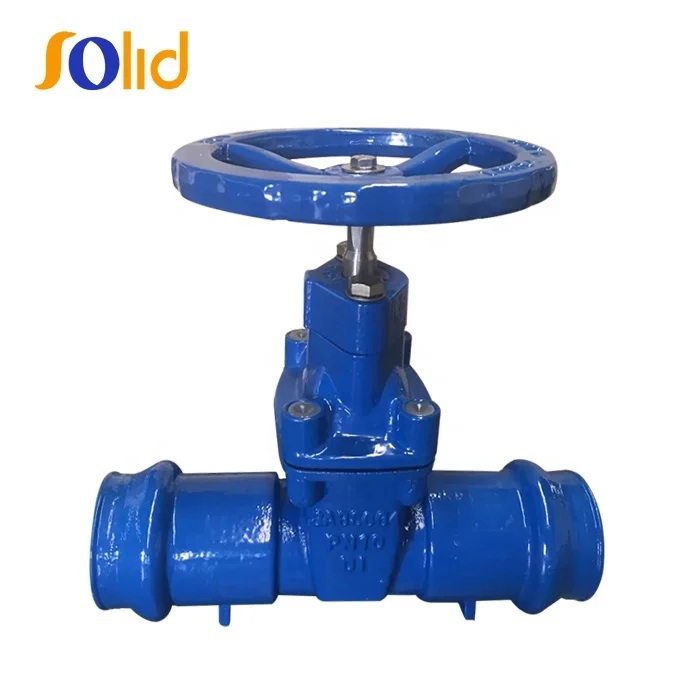

Help CenterDuctile Iron PVC Socket Ends Non-rising Resilient Seated Sluice Gate Valve
Related Products
-
BS5163 Standard PN10,PN16 Ductile Iron GGG50 Rising Stem Resilient Seated Gate ValveUS$ 10.00 - 100.00MOQ: 50 Pieces -
PN16 DN100 Ductile Iron Resilient Seated Non Rising Stem Gate ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
-
DIN3352 F4 DN100 Ductile Iron GGG50 Resilient Seated Gate Valve Cast Iron Sluice Gate ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
-
China Manufacturer Low Pressure DI CI Non Return Spring Dual Plate Wafer Type Check ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
-
DIN Standard Cast Steel WCB CF8M Stainless Steel F5 Gate ValveUS$ 15.00 - 60.00MOQ: 50 Pieces
Features:
Outside stem and yoke (OS&Y)
Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside, blue RAL 5017 ≥ 250 Micron thick
Working pressure 250 PSI/17.2 Bar Non-Shock Cold
Technical Specification:
Valve design according to DIN 3352 / SABS 664
Face to face dimensions according to DIN 3202 F5/ SABS 664
Socket Ends dimensions comply ISO 4422,ISO 4422.2
Hydraulic test according to ISO5208
Ductile iron resilient seated gate valve for PVC pipes(gate valve with socket ends)
Gate valve body materials:ductile iron
Connect type:double socketed
Pressure:PN16
Size:DN100,Tube size:110mm
Seal:resilient seat
Coating:blue epoxy powder outside and inside of the gate valve,250micron thick minimum
Standard:DIN3352 F5
Face to Face Dimension:F5
Application:
Resilient seated socket end gate valves are suitable for PVC pipeline for drinking water and waste water ,which can be installed under or above ground.easily installed.
