China Manufacturer Low Pressure DI CI Non Return Spring Dual Plate Wafer Type Check Valve
US$ 10.00 - 100.00
/ Piece
50 Pieces(Min. Order)
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
PN16 ANSI DIN Cast Iron Body Ductile Iron Stainless Steel Dual Plate Check Valve Wafer Type
-
Cast Iron Double Disc Door Wafer Type Dual Plate Check Valve
-
Ductile Iron Flanged Tilting Disc Non Return Hydraulic Sewage Check Valve
-
Design API 594 Industrial Valves Ductile cast iron Wafer Dual Plate non return Check Valve
-
Ductile iron GGG40/50 Wafer Type Dual Plate Check Valve
-
DIN BS Standard Fusion Bonded Epoxy coated Ductile Iron Industrial Ball Check Valve with Flanged Ends
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description

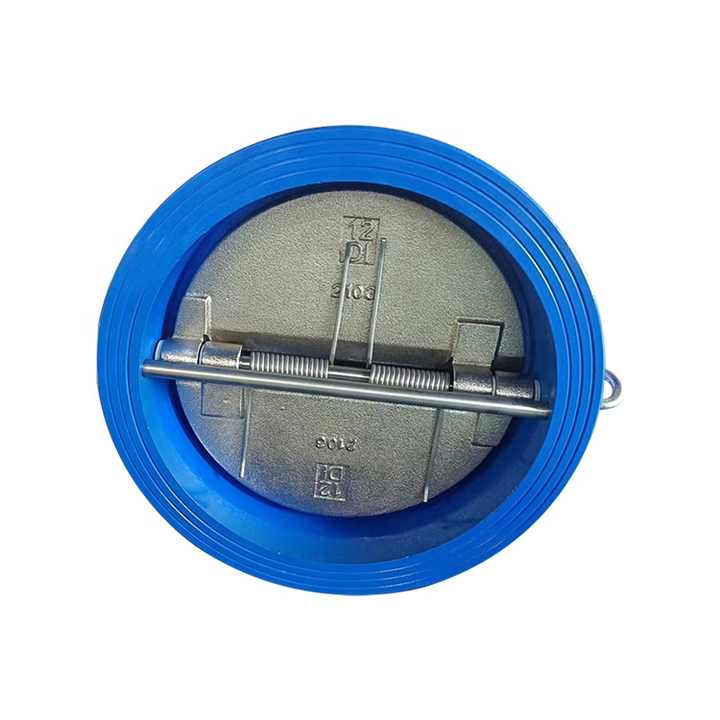

Cast Iron Double disc wafer check valve
•Size:DN50~DN600
•Body material available in Cast iron/Stainless steel
•Face to face dimension to EN558-1 (DIN3202 K3)
•Working Pressure:PN10,PN16
•Working Temperature: -20ºC to 120ºC for EPDM seat
-10ºC to 82ºC for NBR seat
| Size | ØD | PN10 | PN16 | ||||||
| PN10 | PN16 | ANSI150 | E | ØD0 | Ød | Ød0 | L | ||
| DN50 | 107 | 101 | 43 | 66 | 48 | 59 | 43 | ||
| DN65 | 127 | 121 | 46 | 80 | 59 | 72 | 46 | ||
| DN80 | 142 | 134 | 46 | 95 | 72 | 86 | 64 | ||
| DN100 | 162 | 171 | 52 | 117 | 90 | 112 | 64 | ||
| DN125 | 192 | 193 | 56 | 145 | 110 | 130 | 70 | ||
| DN150 | 218 | 219 | 56 | 170 | 135 | 160 | 76 | ||
| DN200 | 273 | 276 | 60 | 224 | 175 | 205 | 89 | ||
| DN250 | 328 | 336 | 68 | 265 | 220 | 265 | 114 | ||
| DN300 | 378 | 406 | 78 | 310 | 260 | 310 | 114 | ||
| DN350 | 438 | 444 | 448 | 78 | 360 | 302 | 350 | 127 | |
| DN400 | 489 | 495 | 511 | 102 | 410 | 346 | 400 | 140 | |
| DN450 | 541 | 555 | 546 | 114 | 450 | 385 | 440 | 152 | |
| DN500 | 594 | 618 | 603 | 127 | 505 | 435 | 487 | 152 | |
| DN600 | 696 | 735 | 714 | 154 | 624 | 516 | 580 | 178 | |
Packaging & Shipping
Package : cartons and wooden cases
