Home > Products > Gate Valve > DIN3352 F4 DN100 Ductile Iron GGG50 Resilient Seated gate valve cast iron sluice gate valve
DIN3352 F4 DN100 Ductile Iron GGG50 Resilient Seated gate valve cast iron sluice gate valve
US$ 10.00 - 100.00
/ Piece
50 Pieces(Min. Order)
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
API/ANSI/DIN/JIS/ASME/Awwa EPDM PTFE PFA Rubber Lining Ductile Iron Cast Iron Wafer Lug Butterfly Valves
-
BS EN593 Ductile Iron Resilient Seat Double Flanged Double Eccentric Butterfly Valve with Gear Box
-
Pn16, JIS10k, ANSI150 Ductile Iron Cast Iron Lug Type Butterfly Valve
-
Large Size Ductile Iron Electric Double Flanged Eccentric Butterfly Valve
-
OEM Industrial DN40-DN1200 Pn16 Ductile Iron Manual Wafer Type Butterfly Valve
-
Good Selling Ductile Iron Cast Iron Water Industry Wafer Type Butterfly Valve
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description

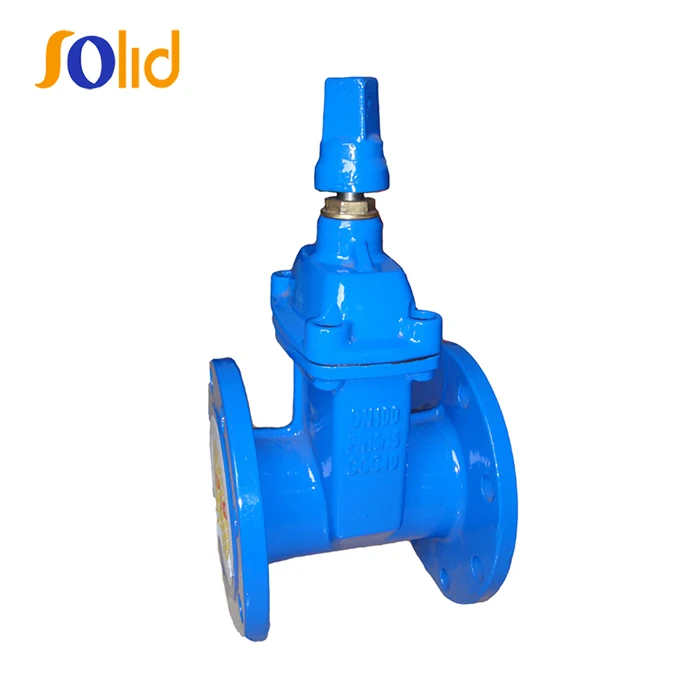

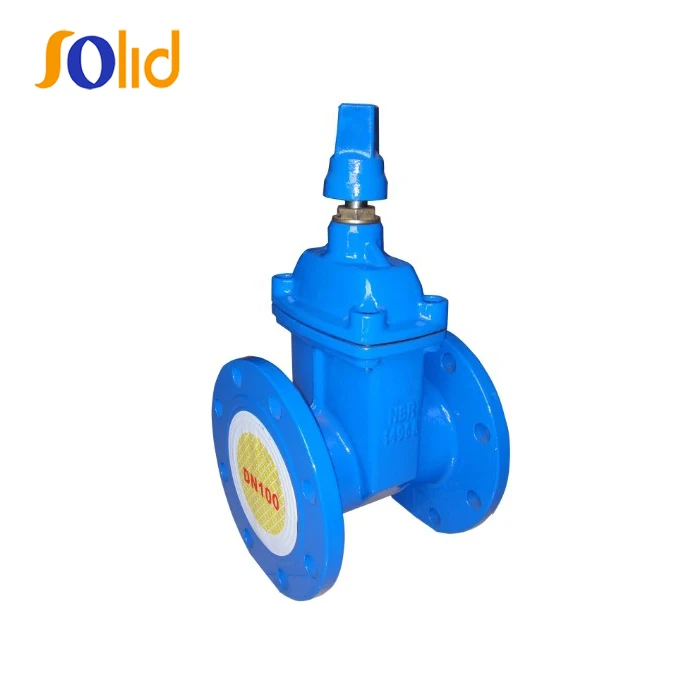

Ductile Iron DIN3352 F4 Resilient Seated gate valve PN16
Price for other sizes,please contact us for detailed price list.
1.Products: DIN 3352 F4 Small type Resilient Seated Gate Valve
2.Material Of Construction: Ductile cast Iron
3.Dimensions: DN50-DN300
4.Pressure: PN16
5.Connection type: Flanged,DN2501,PN16
6.Seal Type: Soft seal(EPDM Rubber or NBR)
7.Design Standard:DIN3352 F4
8.Face to face dimensions: DIN3202(Equal to ISO5752)
9.Each valve be tested according to test standard: DIN3230
10. Work Temperature: NBR≤80°C,EPDM≤120°C
11.Media:water
12.Stem type:non-rising stem
13.Length of valve: DIN3352 F4
Detailed Images
