Home > Products > Gate Valve > DIN3352 F4 DN65 PN16 Resilient Seated Double Flanged End Sluice Gate Valve

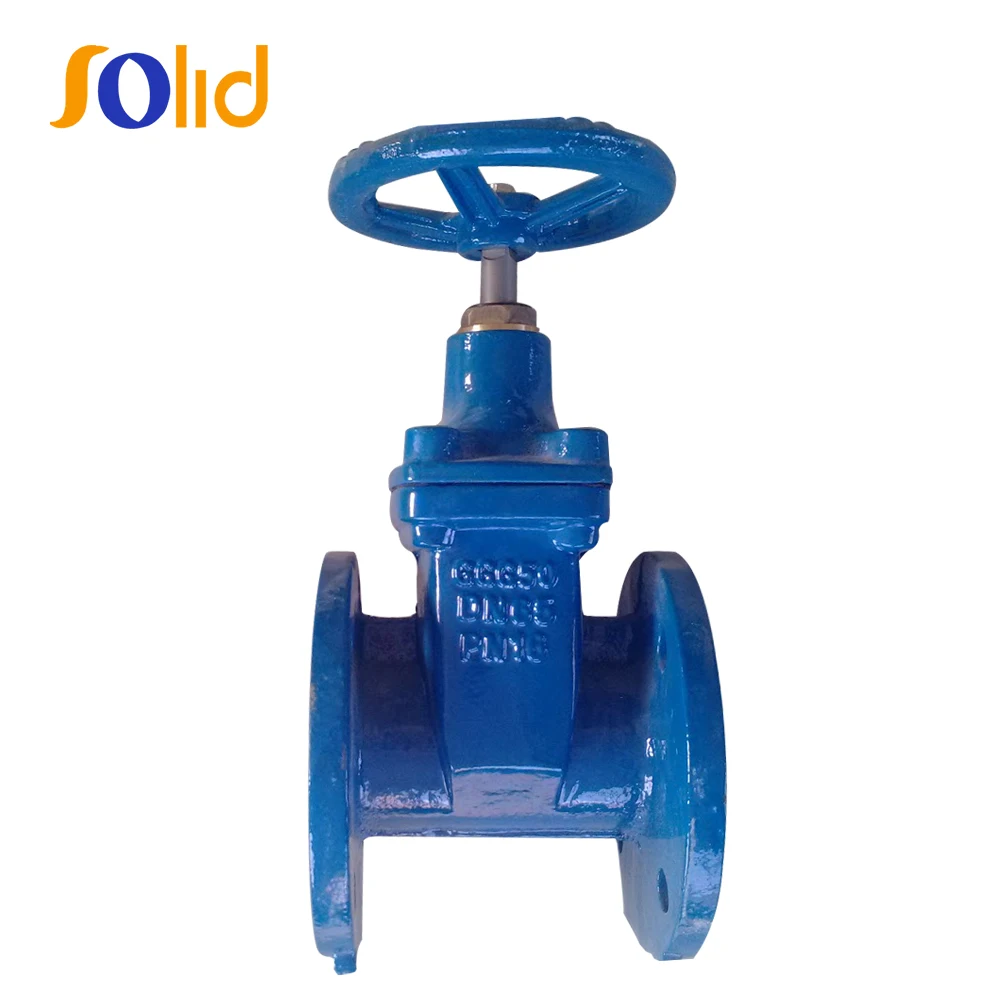

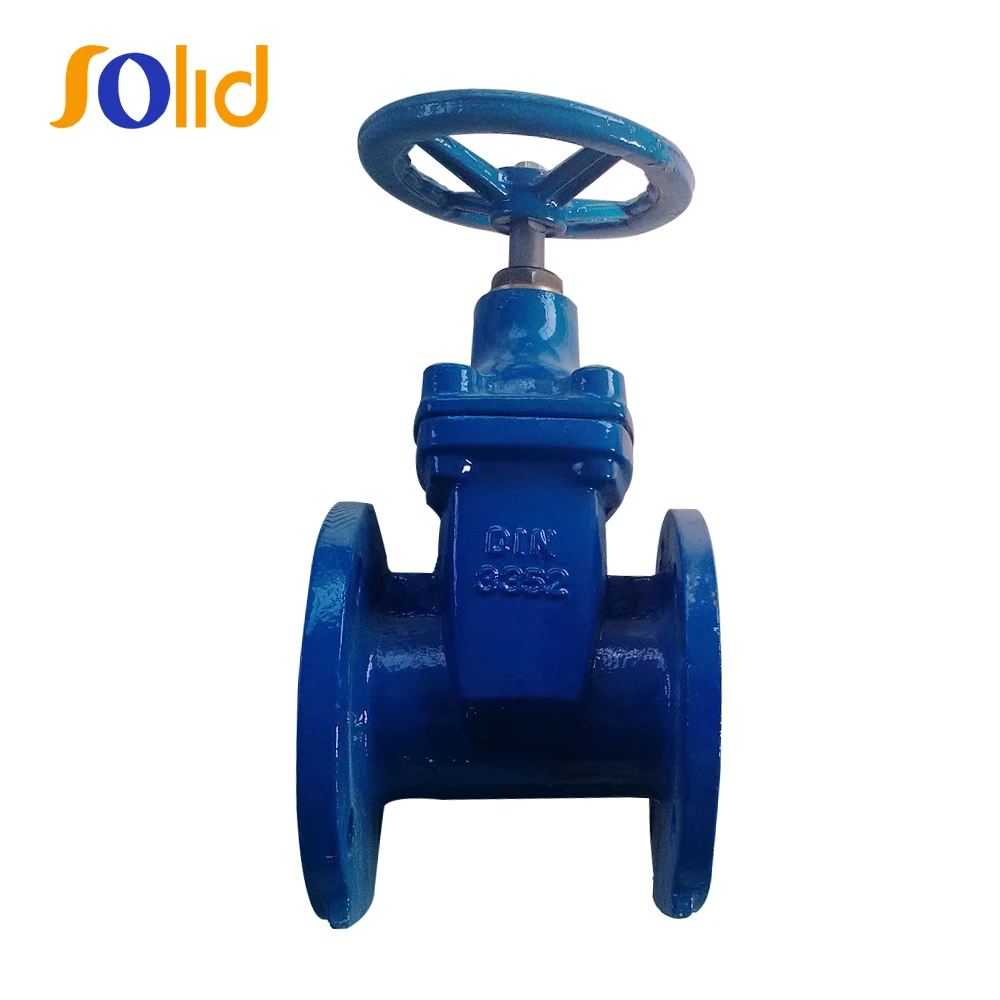

DIN3352 F4 DN65 PN16 Resilient Seated Double Flanged End Sluice Gate Valve
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
DIN 3352 BS5163 Ductile Iron Doule Flanged Resilient Seat Gate Valves
-
BS 5163 PN16 DN150 Ductile Iron Soft Seal Non Rising Stem Resilient Seated Gate Valve DN300
-
DIN 3352 F4 DN50 PN16 Ductile Iron Cast Iron CI OS&Y Resilient Seated Flange End Gate Valve
-
DIN 3352 F4 DN200 PN16 Ductile Cast Iron Gate Valve
-
Ductile Iron DIN3352 F4 DN40-DN800 NON-Risng Stem Resilient Soft Seated Gate Valve
-
DIN 3205 F5 Ductile Iron Cast Iron Manual Slide Resilient Seated Gate Valve Price
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
1) Product information: the gate valves supplied are mainly used for adjusting water, steam, oil, gas, and natural gas in chemical industries
2) Standards: AWWA, DIN3352 F4/F5, BS5163, BS5150
3) Connection type: flanged type, push-on type, mechanical joint type, plain ends type
4) Material:
a) Body : Ductile Iron GGG500-7
b) Wedge : D/I , core fully vulcanized with NBR or EPDM rubber
c) Wedge Nut : Brass
d) Stem : Stainless steel , BS970 431S29 or DIN17440x20Cr13
e) Gasket : NBR
f) Bonnet : GGG500-7
g) O ring : NBR
h) Washer : Carbon steel or Stainless steel .
5) Size: 50-400mm/2" - 16"
6) Pressure grade: PN10, PN16
7) Coating:
a) Fusion-bonded epoxy 200-250 microns inside and out side
b) Coating as per customers' requirement
8) Package : carton for each item , wooden boxes outside .
