Home > Products > Gate Valve > Ductile Cast Iron Electric Resilient Seat Gate Valve DN300 PN10 DIN3352 F4 Gate Valve

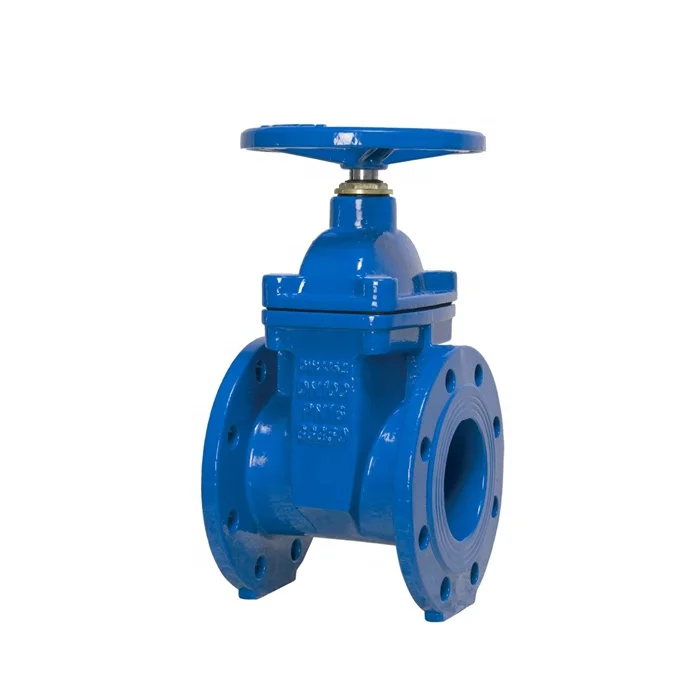

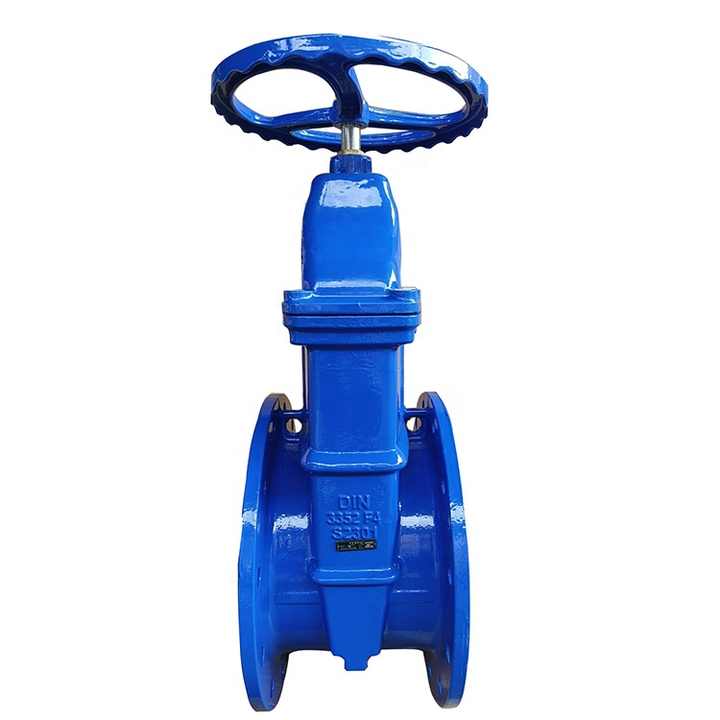

Ductile Cast Iron Electric Resilient Seat Gate Valve DN300 PN10 DIN3352 F4 Gate Valve
Negotiable
/ Piece
50 Pieces(Min. Order)
- TIANJIN,QINGDAO,SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
Soft Seal Resilient Seat Ductile Iron Pn10 Knife Gate Valve With Hand Wheel
-
Ductile Iron Ggg50 Factory Rubber Seat Manual Operated Water China Slurry Sluice Knife Gate Valve
-
DIN3352 F4/F5 DN300 Flanged Resilient Seated Gate Valve With CE Certificate
-
DIN3352 63mm-315mm NRS Hand Wheel Ductile Iron Double Socket End Gate Valve for PVC Pipe
-
DIN PN10 PN16 Ductile Cast Iron GGG50 Hand Wheel Resilient Seated Water Seal Gate Valve
-
DIN BS Standard Cast Steel and Cast Iron Gate Butterfly Check Valve Ductile Iron Valves
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description
Features:
Outside stem and yoke (OS&Y) Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC
Technical Specification:
VValve design according to EN 1171/DIN3352 Hydraulic test according to EN 12266,ISO5208 Groove dimensions comply with UL213,CJ/T 156
Detailed Images
