Repair PVC PE Pipe Gibault Joint With O Ring and Flat Gasket
US$ 25.00 - 65.00
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin
Delivery Detail:
15 days
Related Products
-
Flexible Coupling With O Ring and Flat Gasket Ductile GGG50 Repair PVC PE Pipe Swivel Gibault JointUS$ 25.00 - 65.00MOQ: 50 Pieces -
Pipeline Compensator Flexible Pipe Ductile Iron Pipe Power Double Flange Transmission Dismantling JointUS$ 12.00 - 55.00MOQ: 50 Pieces
-
High Quality Single Sphere Pipe Flexible Rubber Flange Bellow Expansion Joint PriceUS$ 10.00 - 80.00MOQ: 50 Pieces
-
ISO 2531/En545 Ductile Iron/Cast Iron Gibault Joint for PVC Pipe (O Type or A Type EPDM Ring)US$ 8.00 - 35.00MOQ: 50 Pieces
-
ISO2531/EN545 DCI Ductile Iron Gibault Joint for PVC Pipe/ Steel Pipe/ AC PipeUS$ 8.00 - 35.00MOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Product Description

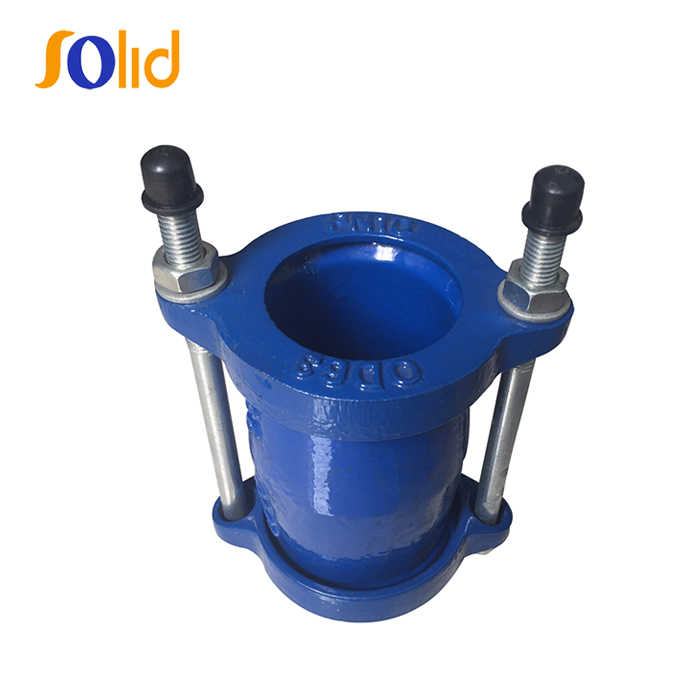

Gibault joints
This joints are a coupling designed to provide an efficient and economical mechanical joint for white PVC and AC sized pipes.
He Standard Gibault joint is designed to join/repair pipeline materials and fittings that are relatively inert, ie. Ductile Iron, Cast Grey Iron, Asbestos Cement. The sleeve length of the Standard Gibault joint sleeve is relative to the material it has been designed to join. When joining/repairing pipelines of different material it is strongly recommended that an Elongated or SWB Gibault joint be utilised.
| Dimensions(mm) | |||||
| Item No. | Size | Bolt | A | H | |
| L | QTY | mm | mm | ||
| 1 | 63 | 160 | 2 | 125 | 147 |
| 2 | 75 | 160 | 2 | 125 | 147 |
| 3 | 90 | 160 | 3 | 125 | 165 |
| 4 | 110 | 180 | 3 | 145 | 185 |
| 5 | 125 | 180 | 3 | 145 | 200 |
| 6 | 140 | 180 | 4 | 145 | 215 |
| 7 | 160 | 220 | 4 | 185 | 236 |
| 8 | 180 | 220 | 4 | 185 | 255 |
| 9 | 200 | 220 | 4 | 185 | 276 |
| 10 | 225 | 230 | 6 | 185 | 285 |
| 11 | 250 | 230 | 6 | 185 | 340 |
| 12 | 280 | 230 | 6 | 185 | 345 |
| 13 | 315 | 230 | 6 | 185 | 352 |

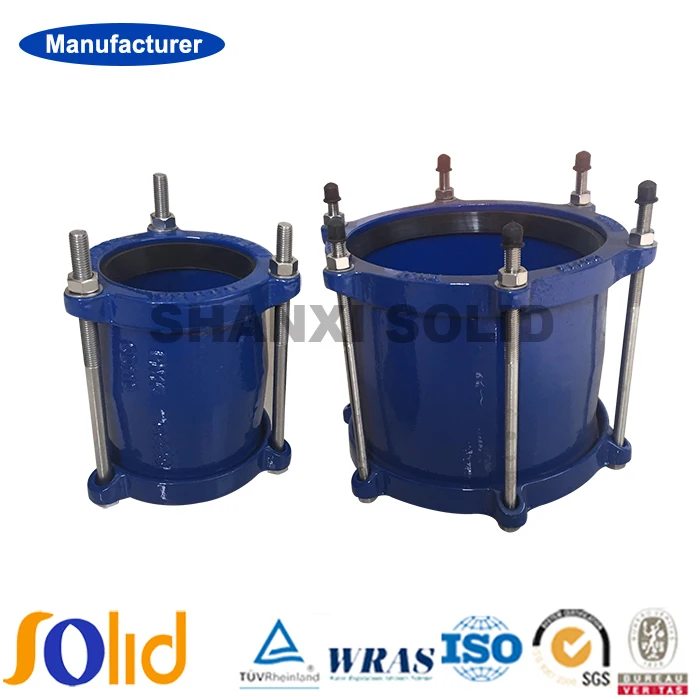

Universal Coupling
Features:
1.Ductile Iron GGG50 material with FBE coated.
2.PN10,PN16 working pressure.
3.Equipped with galvanized steel bolts,nuts.
4.EPDM or NBR rubber seals
5.High Tolerance Mechanical Pipe Fittings.
6.Angular deflection +/- 6°
7.Other size and range are available on request.
Material Specification:
| Parts Name | Material |
| Gland | Ductile Iron |
| Gasket | EPDM/NBR |
| Center Sleeve | Ductile Iron/Steel |
Dimensions (mm)
| Size | Range (mm) | Boltings x No. | ||
| Inch | DN | Min | Max | |
| 1 1/2" | DN40 | 48 | 58 | M12 x 2 |
| 2" | DN50 | 59 | 73 | M12 x 4 |
| 2 1/2" | DN65 | 72 | 85 | M12 x 4 |
| 3" | DN80 | 88 | 103 | M12 x 4 |
| 4" | DN100 | 109 | 128 | M12 x 4 |
| 5" | DN125 | 132 | 154 | M12 x 4 |
| 6" | DN150 | 159 | 182 | M12 x 4 |
| 7" | DN175 | 192 | 210 | M12 x 4 |
| 8" | DN200 | 218 | 235 | M12 x 4 |
| 10" | DN250 | 266 | 291 | M12 x 6 |
| 12" | DN300 | 315 | 332 | M12 x 6 |
| 14" | DN350 | 374 | 391 | M12 x 8 |
| 16" | DN400 | 417 | 437 | M12 x 8 |
| 18" | DN450 | 480 | 500 | M12 x 10 |
| 20" | DN500 | 526 | 546 | M12 x 12 |
| 24" | DN600 | 630 | 650 | M12 x 12 |
Detailed Images
