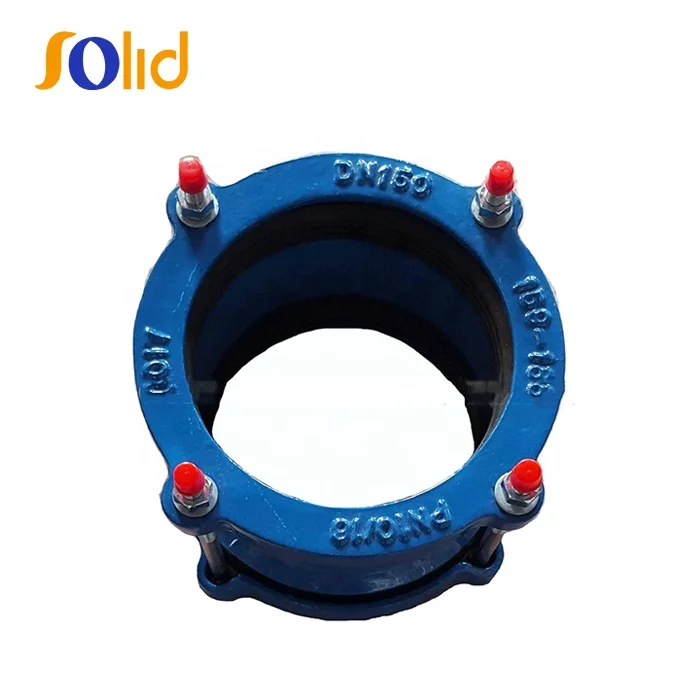

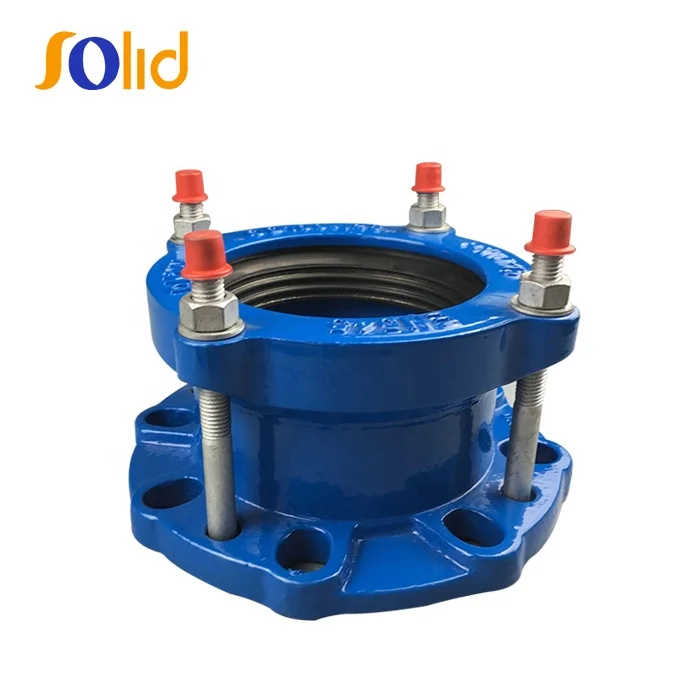

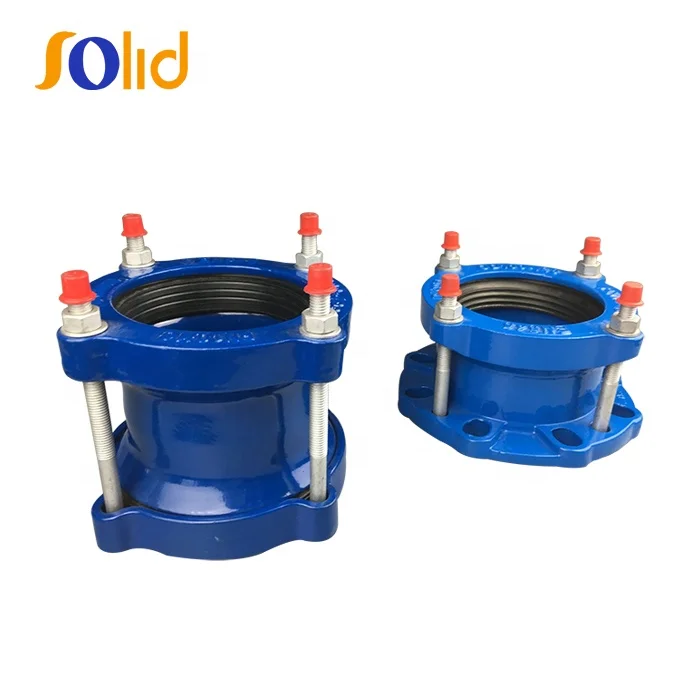

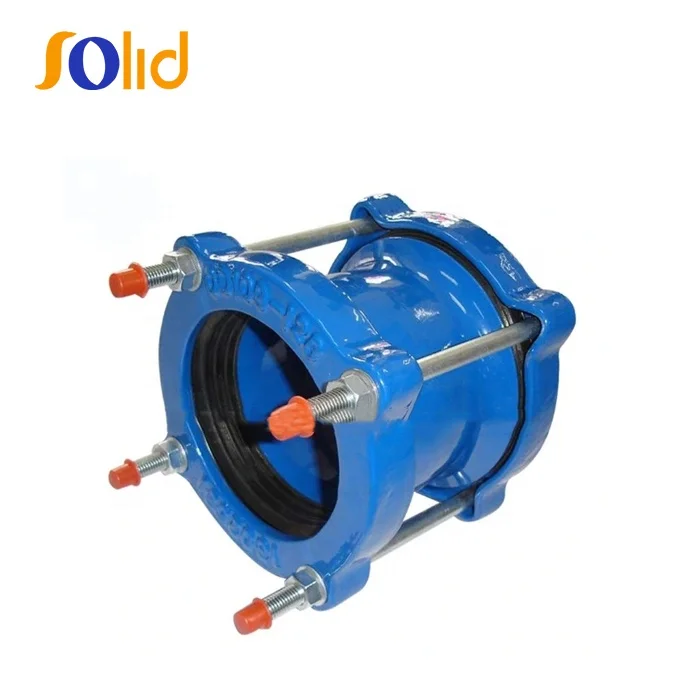

SOLID Wide Range Ductile Cast Iron Pipe Fittings Universal Flexible Pipe Coupling Joint
US$ 8.00 - 25.00
/ Piece
50 Pieces(Min. Order)
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 30 days
You May Like
-
ISO2531,EN545 Ductile Iron DI Restrained Flange Adaptors Coupling for PE Pipe
-
High Quality Double Flange Carbon Steel Ductile Iron PN10/16/25/40 Dismantling Joint
-
Hot Selling Ductile Iron GGG50 Universal Double Flange Wide Range Dismantling Joints
-
Hot Sale ISO2531 EN545 Blue Epoxy coated ductile cast iron dismantling joint
-
PN10, PN16 Flange metal bellow expansion ductile iron carbon steel Dismantling joints
-
ISO2531 Ductile iron pipe fittings dismantling joints for ductile iron pipes,PVC pipes
Product Details
| Brand Name | solid | Place of Origin | China |
Product Description
Product Description
Universal coupling is designed to transfer the pressure thrust of connected pipes and compensate pipe error, reduce the damage of axial thrust against pipe and pipe.Universal coupling is normally used together with pump, valve and other pipe lines in the fields of water supply and drainage, water treatment and water projects. Prosper Flow is special in supplying the universal coupling with sizes of DN40mm to DN600mm.
1. Application :
* used for pipe connection .
* suit for Ductile Iron Pipe, Cast Iron Pipe, Steel, AC, Plastic pipe
* Working pressure: PN10 / PN16
* Suit for Water, Neutral Liquids and Sewage
2. Features :
* wide range of tolerance
* corrosion resistance
* allow angular deflection of +/- 4°
3. DIMENSION SHEET
* used for pipe connection .
* suit for Ductile Iron Pipe, Cast Iron Pipe, Steel, AC, Plastic pipe
* Working pressure: PN10 / PN16
* Suit for Water, Neutral Liquids and Sewage
2. Features :
* wide range of tolerance
* corrosion resistance
* allow angular deflection of +/- 4°
3. DIMENSION SHEET
| S/N | Size | O.D Range |
| mm | mm | |
| 1 | DN40 | 48-60 |
| 2 | DN50 | 59-73 |
| 3 | DN65 | 72-85 |
| 4 | DN80 | 88-103 |
| 5 | DN100 | 96-116 |
| 6 | 108-120 | |
| 7 | 109-128 | |
| 8 | DN125 | 132-146 |
| 9 | 138-153 | |
| 10 | DN150 | 158-172 |
| 11 | 159-182 | |
| 12 | DN175 | 192-210 |
| 13 | DN200 | 198-225 |
| 14 | 218-235 | |
| 15 | DN250 | 242-262 |
| 16 | 250-267 | |
| 17 | 250-274 | |
| 18 | 272-289 | |
| 19 | DN300 | 315-332 |
| 20 | 322-339 | |
| 21 | DN350 | 340-360 |
| 22 | 351-378 | |
| 23 | 374-391 | |
| 24 | DN400 | 390-410 |
| 25 | 398-430 | |
| 26 | 417-437 | |
| 27 | 425-442 | |
| 28 | DN450 | 450-463 |
| 29 | 455-475 | |
| 30 | 476-500 | |
| 31 | DN500 | 500-508 |
| 32 | 500-533 | |
| 33 | 526-546 | |
| 34 | DN600 | 600-630 |
| 35 | 608-636 | |
| 36 | 630-650 | |
| 37 | DN700 | 710-739 |
| 38 | DN800 | 816-842 |
