PN10, PN16 Flange Metal Bellow Expansion Ductile Iron Carbon Steel Dismantling Joints
US$ 8.00 - 25.00
/ Piece
50 Pieces(Min. Order)
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 30 days
You May Like
-
ISO2531 Ductile Iron Pipe Fittings Dismantling Joints for Ductile Iron Pipes,PVC Pipes
-
ISO2531/En545 Cast Iron Expansion Flanged Universal Dismantling Joint
-
Ductile Iron Tapping Saddle With Stainless Steel Band Strapped for DI/Steel Pipe
-
Carbon Steel Universal Flanged Rubber Single Ball Sphere Flexible Expansion Joint
-
JIS 10K EPDM or NBR Rubber Seal Flexible Single Arch Ball Rubber Expansion Joint for Pipe
-
Ductile Iron Quick Flange Adaptor Joint Coupling for PE or PVC Pipe (DN50-DN500)
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description
Dismantling joint is suitable for all flanged piping materials above ground or in chamber . It enables easy installation and dismantling of isolating valves , non return valves , flow metering equipment , pumps etc.It compensates for axial displacement of the pipe during installation.

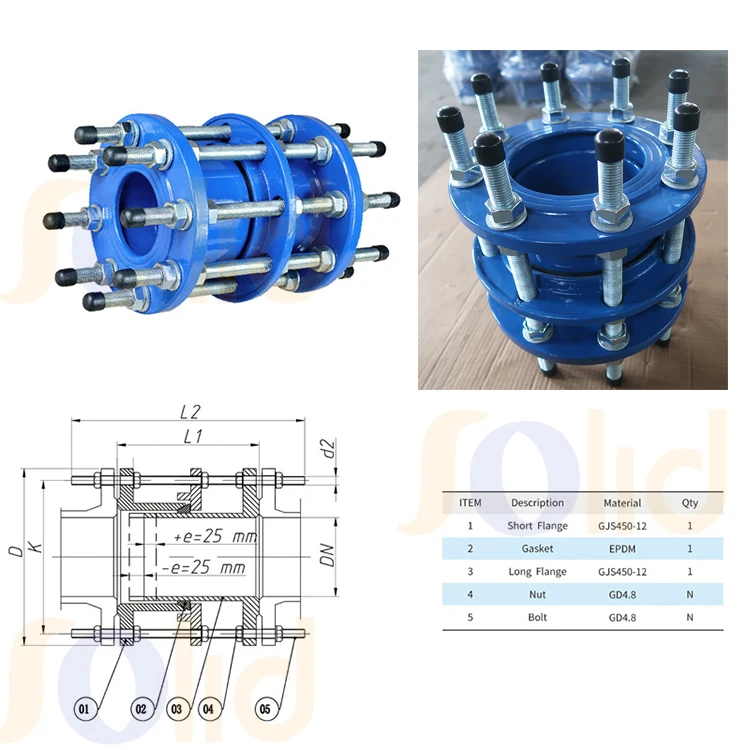

| MATERIALS | ||
| ITEM | PARTS | MATERIAL |
| 1 | Body | BSEN1563 EN-GJS(QT)-450-10 |
| 2 | Seals | EPDM/NBR |
| 3 | Fasteners | Stainless Steel/Carbon Steel with Dacromet Coating/GAL Carbon Steel |
| 4 | Coating | Fusion Bonded Epoxy |
| materials | ductile iron GGG50 or ASTM A536 65-45-12 |
| bolts&nuts | carbon steel with hot dip galvanized, electric galvanized or dacroment suface. |
| gasket | EPDM |
| standard | ISO2531, EN545 |
| size | DN50 to DN2200 |
| surface | epoxy coating with RAL5015 or RAL5017 |
| flange drilled | PN10/PN16/PN25 according to BS4504 |
| hardness | maximum≤250HB |
| proof stress | minimum≥300MPa |
| tensile strength | minimum≥420MPa |
| elongation | minimum≥12 |
The dismantling joint enables easy installation and dismantling of isolating valves , non return valves , flow metering equipment , pumps etc.
It compensates for axial displacement of the pipe during installation/dismantling .
All the materials of the body is ductile iron according to GGG500-7 and the bolts and nuts are hot galvanized coating .The rubber seal is EPDM For drinking water.
Packing : plywood cases ,pallets or according to the requirment of buyers'

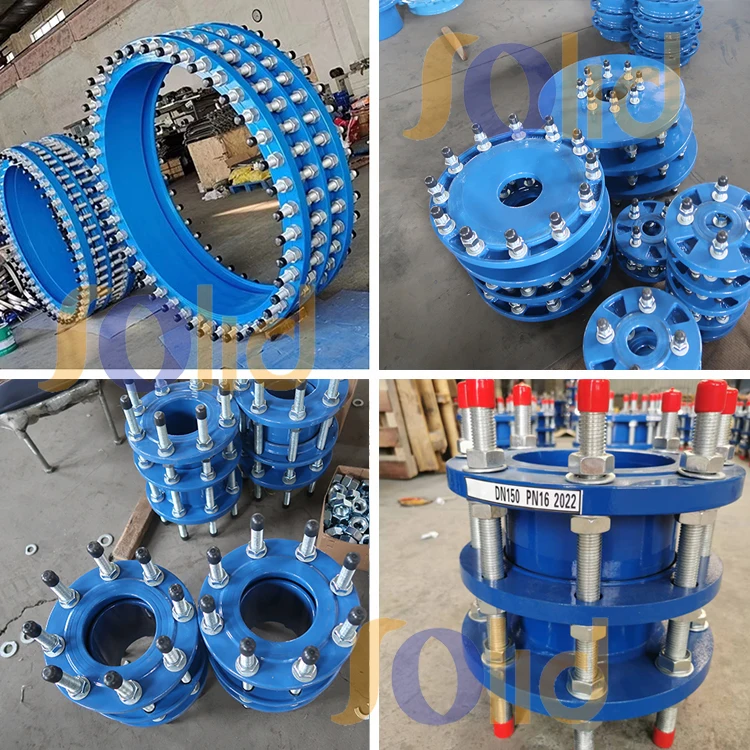

Detailed Images
