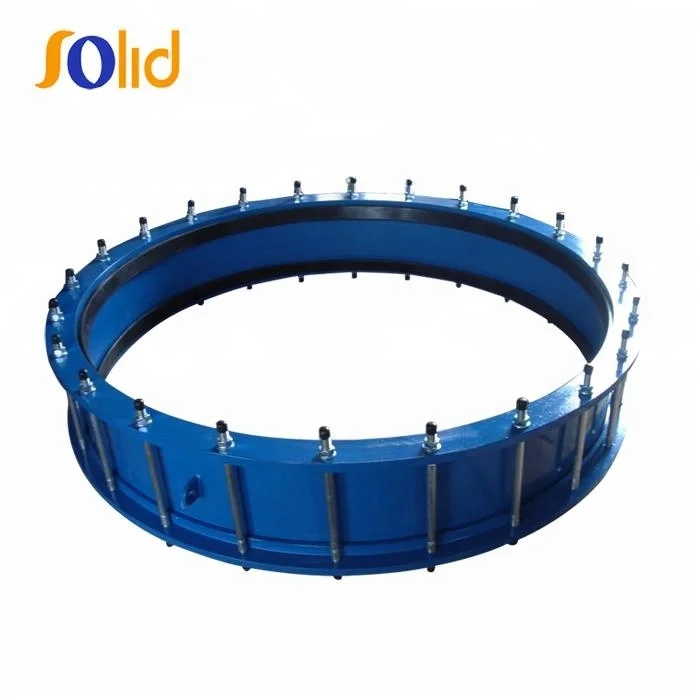

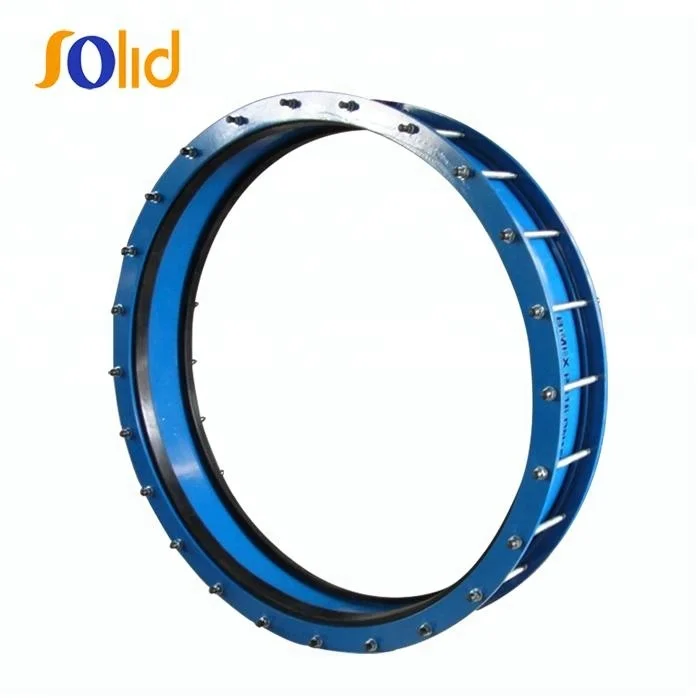

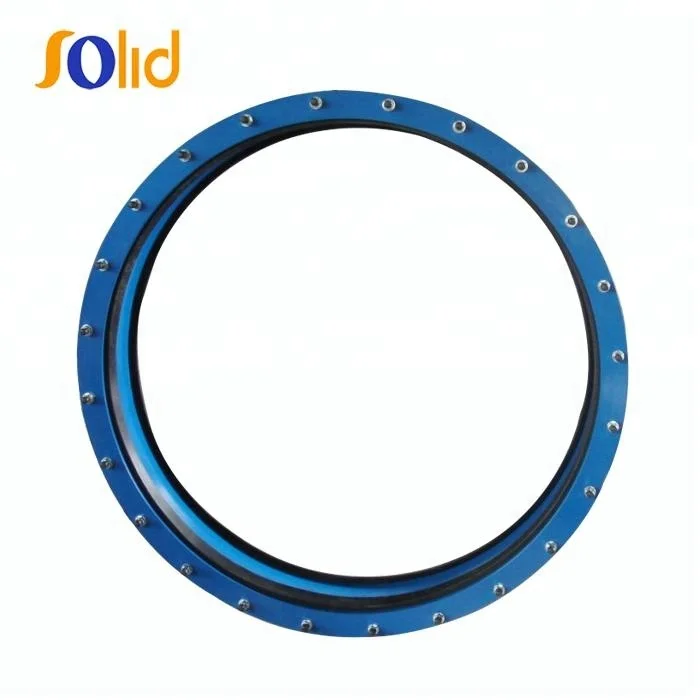

Hot Sale ISO2531 EN545 Blue Epoxy Coated Ductile Cast Iron Dismantling Joint

Standard: ISO2531,EN545, ASTM

Pressure: PN10/PN16/PN25/PN40/PN64

Body material: Ductile iron with FBE ( fusion bonded epoxy) coating or Epoxy painting;

Gaskets are NBR or EPDM;

Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316

Package: wooden cases and protection layer.

Application:

Dismantling joint is suitable for all flanged piping materials above ground or in chamber.

It enables easy installation and dismantling of isolating valves, non return valves, flow metering equipment , pumps etc. It compensates for axial displacement of the pipe during installation.

Available Range
From DN40mm - DN1600mm.

Material of Construction
End Rings - Ductile Iron to BS2789 Grade 420/12 , 500/7
Sleeves - Ductile Iron to BS2789 Grade 420/12 , 500/7
Flanges - Ductile Iron to BS2789 Grade 420/12 , 500/7
Coating - Fusion Bonded Epoxy to SABS 1217 , minimum thickness 250 microns, colors in

RAL5005, RAL5015 , RAL3009 , RAL9005, RAL9011 or others .
Bolts - Steel to BS970 Grade 070M20 , Carbon steel Grade 8.8, SS304 or SS316

bolts available upon requests.
Bolt coating - Galvanized
Rubber Seal - E.P.D.M. Grade E to BS2494 1990 Type W&D
