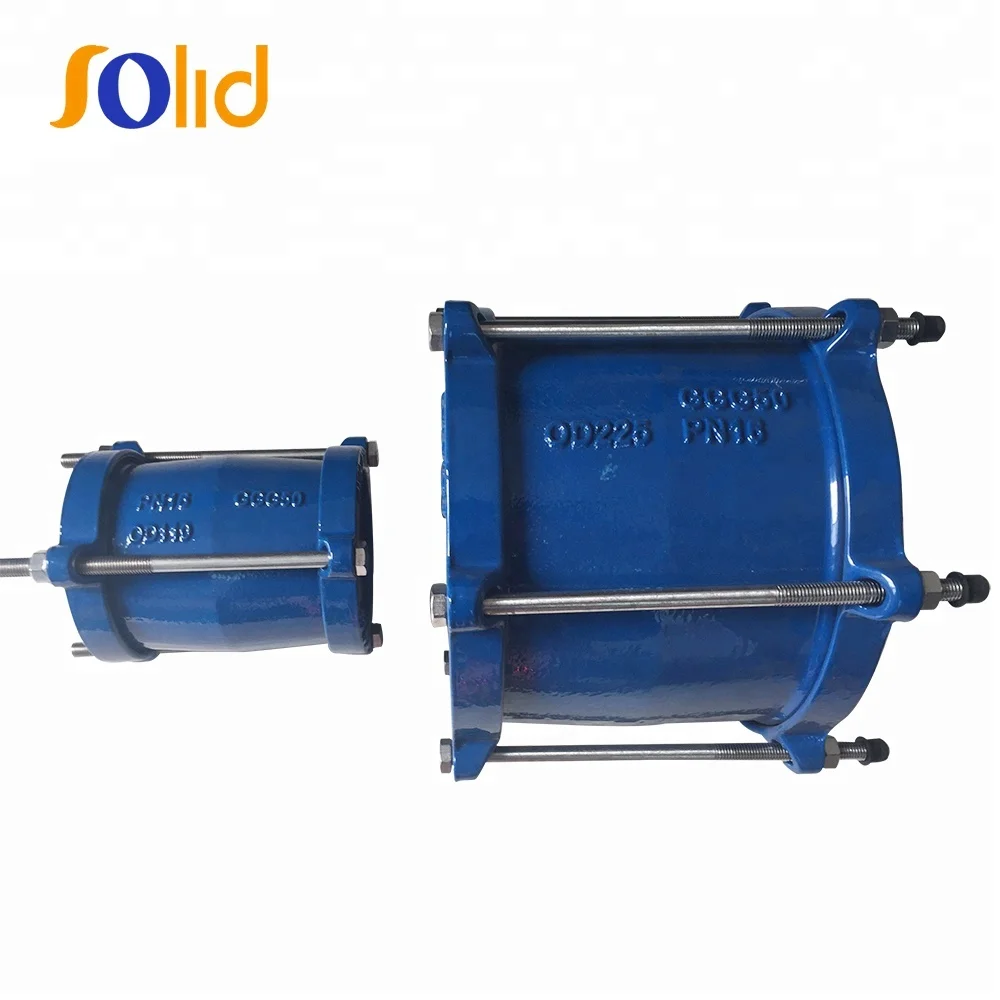

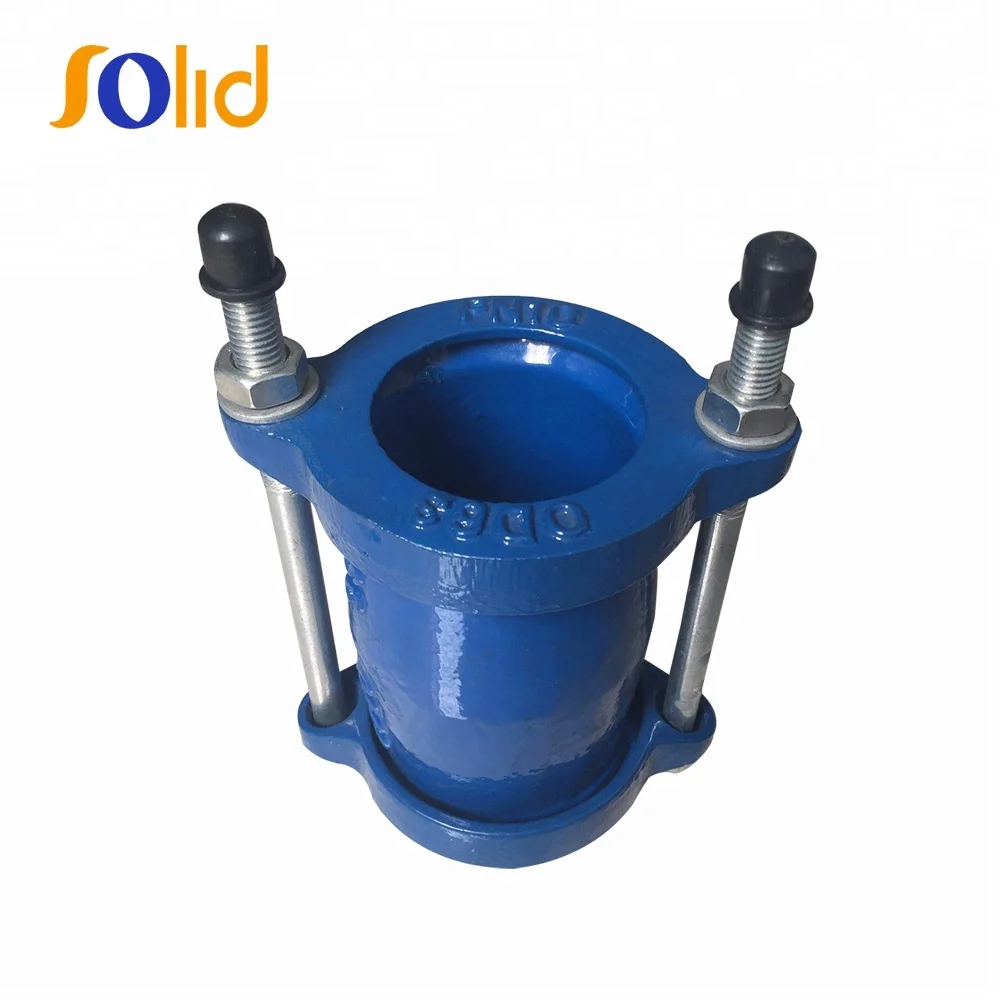

Flexible Coupling with O Ring and Flat Gasket Ductile GGG50 Repair PVC PE Pipe Swivel Gibault Joint
USD $25.00 - $65.00
/ Piece
50 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
Full SS Repair Clamp/Repair Collar Stainless Steel Repair Pipe Clamp
-
Stainless Steel Water Pipe Single/Double Band Repair Clamp For CI, DI, Steel,PE And PVC Pipe
-
DI double bands Water Pipe Repair Clamp For DI PE And PVC Pipe
-
DI double bands Water Pipe Repair Clamp For DI PE And PVC Pipe
-
ISO9001 CE Certificate Ductile Iron Jaw Stainless Steel Band Pipe Leak Repair Clamp
-
Stainless Steel/ SS Pipe Band Repair Clamp
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description
Gibault joints
This joints are a coupling designed to provide an efficient and economical mechanical joint for white PVC and AC sized pipes.
| Dimensions(mm) | |||||
| Item No. | Size | Bolt | A | H | |
| L | QTY | mm | mm | ||
| 1 | 63 | 160 | 2 | 125 | 147 |
| 2 | 75 | 160 | 2 | 125 | 147 |
| 3 | 90 | 160 | 3 | 125 | 165 |
| 4 | 110 | 180 | 3 | 145 | 185 |
| 5 | 125 | 180 | 3 | 145 | 200 |
| 6 | 140 | 180 | 4 | 145 | 215 |
| 7 | 160 | 220 | 4 | 185 | 236 |
| 8 | 180 | 220 | 4 | 185 | 255 |
| 9 | 200 | 220 | 4 | 185 | 276 |
| 10 | 225 | 230 | 6 | 185 | 285 |
| 11 | 250 | 230 | 6 | 185 | 340 |
| 12 | 280 | 230 | 6 | 185 | 345 |
| 13 | 315 | 230 | 6 | 185 | 352 |
Universal Coupling
Features:
1.Ductile Iron GGG50 material with FBE coated.
2.PN10,PN16 working pressure.
3.Equipped with galvanized steel bolts,nuts.
4.EPDM or NBR rubber seals
5.High Tolerance Mechanical Pipe Fittings.
6.Angular deflection +/- 6°
7.Other size and range are available on request.
Material Specification:
| Parts Name | Material |
| Gland | Ductile Iron |
| Gasket | EPDM/NBR |
| Center Sleeve | Ductile Iron/Steel |
Detailed Images
