Sample Free 10 Pairs Krone LSA Profile Switching Module With Wire Guide From China Factory TAEPO

    Service & Certificate

    Descriptions

TAEPO -Your Professional Switching Module Manufacturer
10 Pair Profile Swithcing Module, Get the Best Price from TAEPO Now!

What is a 10 pair profile Swithcing Module?
10 pairs LSA profile switching module with wire guide (TP-1241-10P) is used in the main distribution frames (MDF). It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.

It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

This 10 pairs krone LSA profile switching module uses a normally open two piece contact, thus the MDF protector must be inserted into the module for continuity, and against over-votage over currentl meantime. A test cord can be inserted into a pair to test each side of the circuit independently. This greatly accelerates fault identification.

    Main Features

• Insulation Displacement Contact (IDC): it is designed to make electrical connections without the need for stripping wires or using separate connectors, by using a sharp blade or wedge to penetrate the insulation of the wire and make contact with the conductor.

• Compact size: The module is designed to be small and space-saving, making it ideal for use in crowded telecommunications cabinets or enclosures.

• High-density connection: The 10 pairs LSA disconnection module allows for the connection of multiple cables in a single location, making it easier to manage and maintain the telecommunications infrastructure.

• Disconnection capability: The module has a disconnection function, which allows individual cables to be disconnected without affecting other cables connected to the module.

• Easy installation: The module can be quickly and easily installed using insetion tool by one-push and and back mount frame for modular installations.

• Excellent conductivity: The module features a high-quality copper alloy construction that provides excellent conductivity, ensuring a strong and reliable connection.

• Durability: The LSA disconnection module is designed to be durable and withstand the rigors of daily use.

• Versatility: The LSA disconnection module can be used in a wide range of applications, including data centers, telecommunications networks, and security systems.

• Compatibility: The LSA disconnection module is compatible with a wide range of wiring systems, making it a versatile and flexible solution for many different applications.

• Profile Design: The module's profile design enhances accessibility during installation and maintenance, allowing for efficient handling and organization of connections.

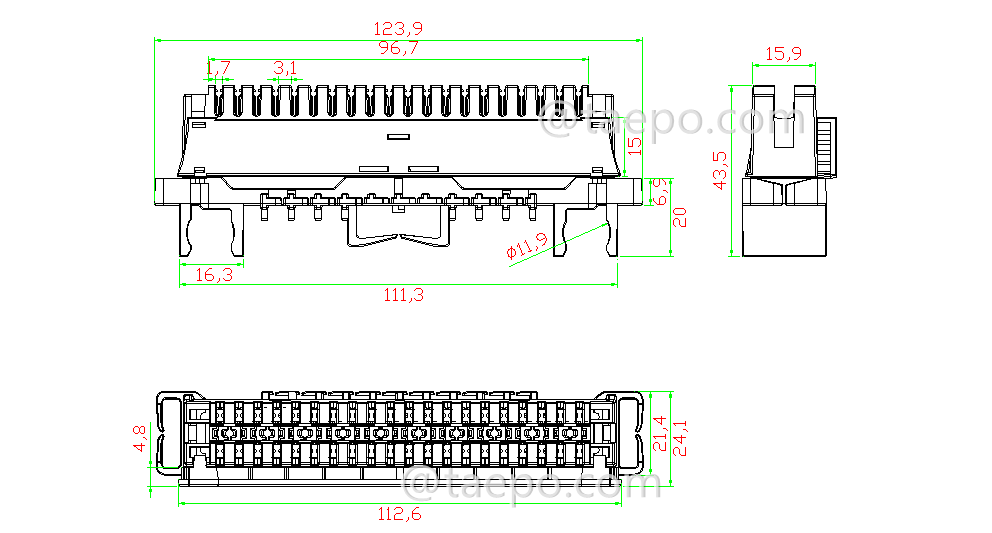

    Schematic Diagrams

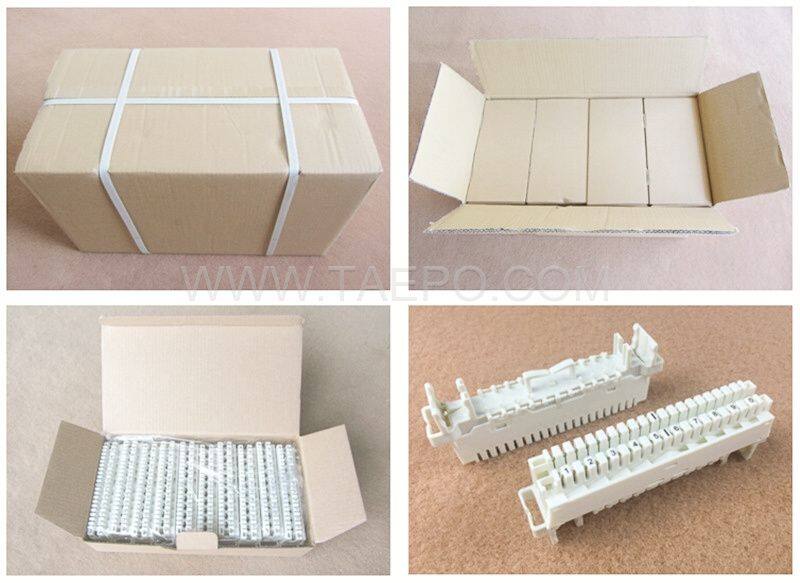

    Packing Pictures

    Order Data
