Descriptions
Disconnection module is a component used in telecommunications and networking infrastructure.

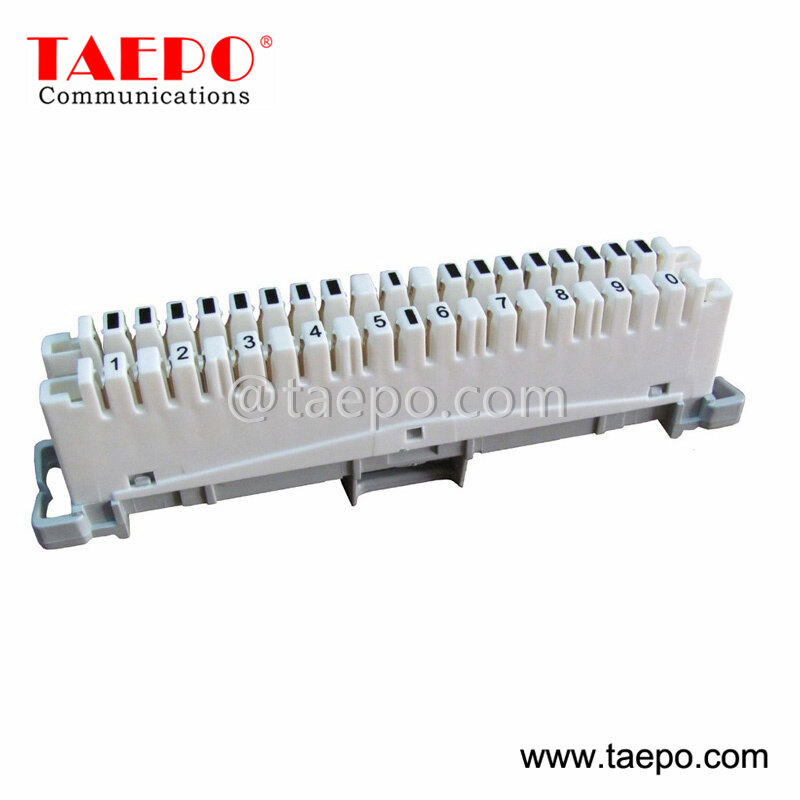

10 pairs LSA disconnection module (TP-1201-10) is used throughout the distribution level, in the main distribution frames (MDF), in the cross connection cabinets (CCC) or in the distribution point (DP) boxes. It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.
Overall, the 10 pair Krone LSA plus disconnection module is a convenient and efficient tool for managing telecommunications connections in various applications, offering reliability and flexibility in network setups.
Main Features
The 10 pair LSA disconnection module has several key features that make it a valuable component in telecommunications and networking:
High-Density Termination:
Supports termination of up to 10 pairs of wires in a compact module, allowing efficient use of space in distribution frames and network cabinets.
Reliable Connection:
The LSA Plus (Lötfrei, Schraubfrei, Abisolierfrei - solderless, screwless, stripless) technology ensures a secure, reliable connection without the need for soldering, screws, or stripping of insulation.
Disconnection Capability:
The module allows for easy disconnection and reconnection of lines, facilitating maintenance, testing, and troubleshooting without disturbing the wiring.
Durable Construction:
Made with high-quality materials that provide robust mechanical stability and long-lasting performance even in demanding environments.
Easy Installation:
Quick and straightforward installation process using a special punch-down tool, which pushes the wire into the contact slot and cuts off any excess wire in one action.
Compatibility:
Compatible with standard 19-inch rack systems and other Krone distribution frames and accessories, allowing for flexible integration into existing infrastructure.
Testing Access:
Includes test access points for each wire pair, enabling easy testing and monitoring of individual connections without disrupting the entire system.
Cross-Connect Functionality:
Facilitates cross-connecting between different pairs, allowing for easy rerouting of lines within the network setup.
Protection Options:
Can be equipped with overvoltage protection modules to safeguard the network against electrical surges and spikes.
Standards Compliance:
Meets international standards for telecommunications infrastructure, ensuring compatibility and reliability in various applications.
These features make the Krone LSA Plus disconnection module an essential component for efficient and reliable telecommunications and data network management.

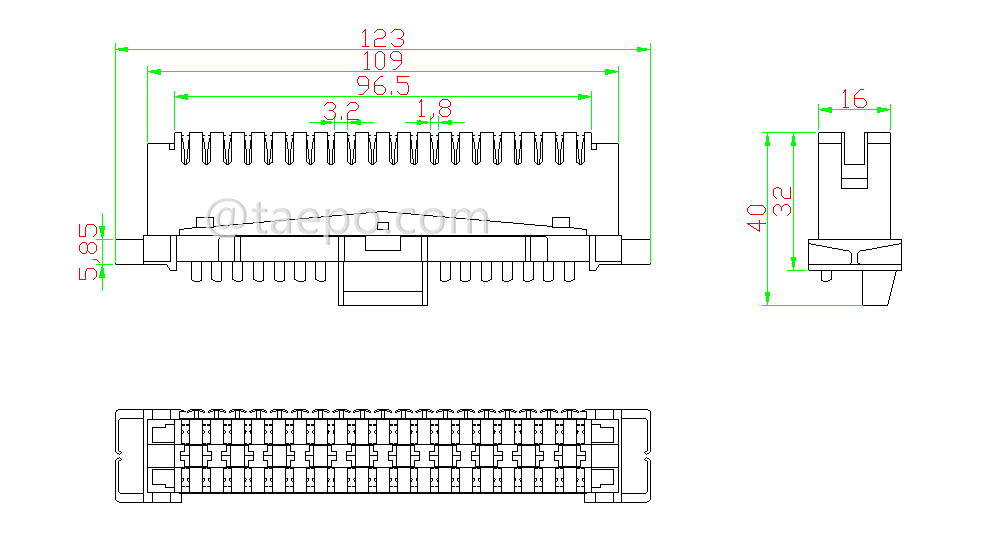

Schematic Diagrams

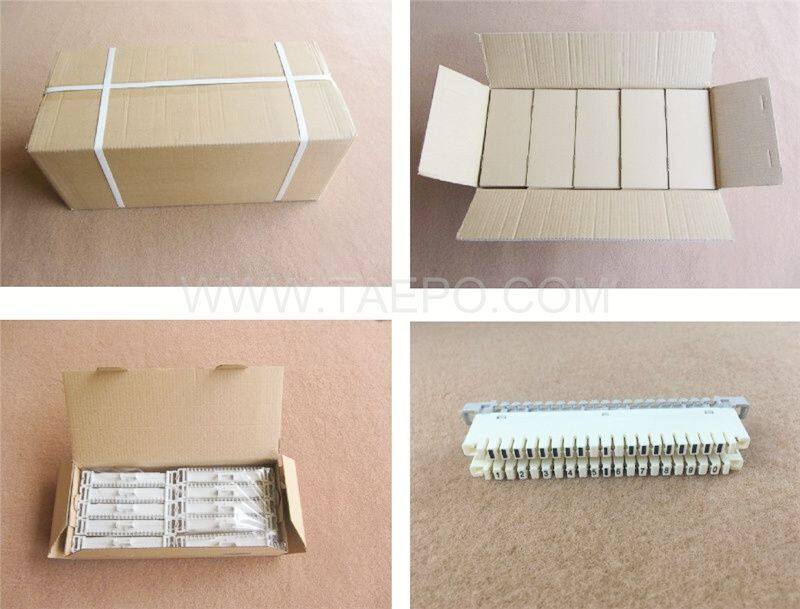

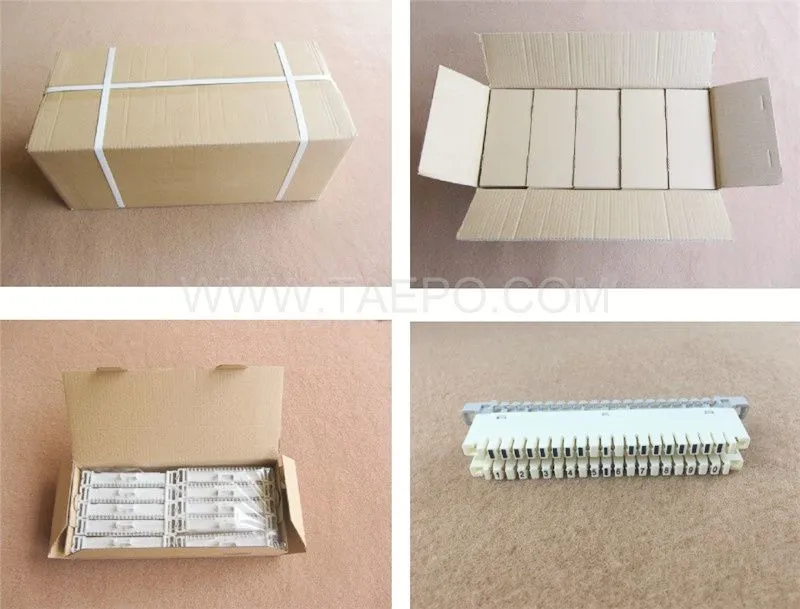

Packing Pictures
Order Data
| Item NO | Desciptions |
| TP-1201-10 | 10 pairs LSA disconnection module |
