Sample Free 10 Pairs LSA Telephone Connection Module With Color Label From China Factory TAEPO

TP-1202-10CL LSA connection module is used throughout the distribution level, in the main distribution frame (MDF), in the cross connection cabinet (CCC) and in the distribution point (DP) boxes. It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.



It adopts IDC (Insulation Displacement Connection) technique, which means that no soldering, wire-stripping or the use of screws is necessary, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity.

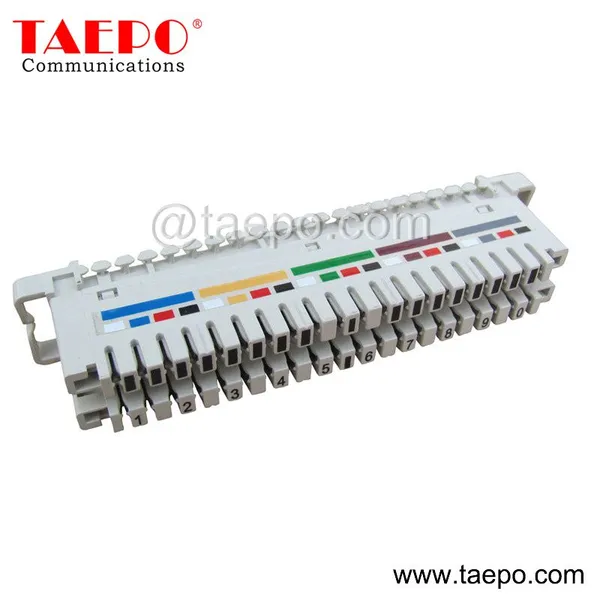

TP-1202-10CL LSA connection modules use one piece contact.

 Insulation Displacement Connection
 No Wire-stripping, screw and solder free
 Reliable connections
 Clear labeling
 Flame retardant performance
 Modular design and installations
 Gas tight connection
 Two wires per contact
 One push wire insertion
 No Wire-stripping, screw and solder free
 Only one inexpensive tool required
