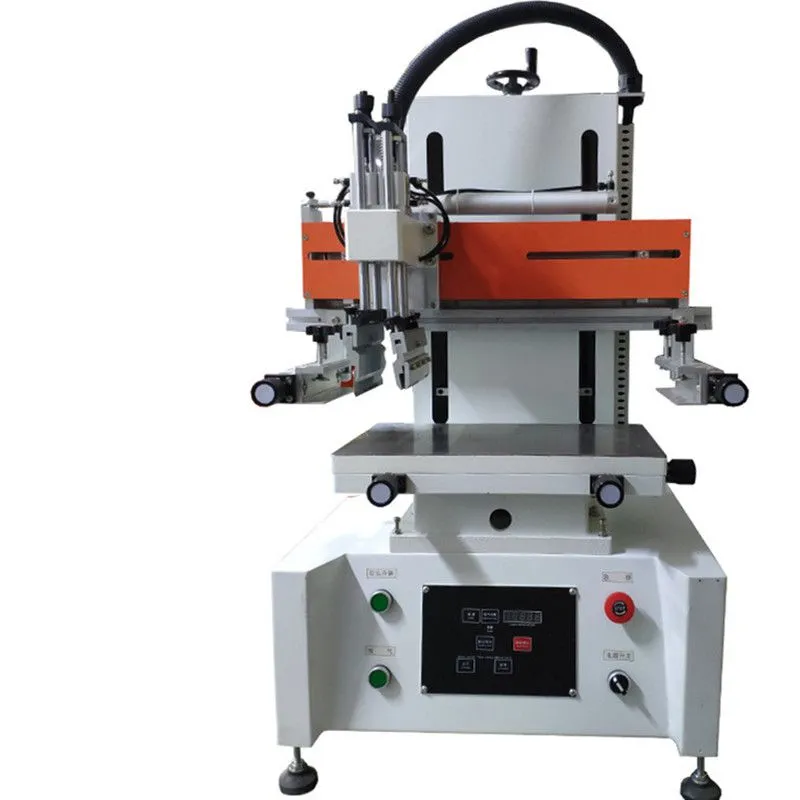

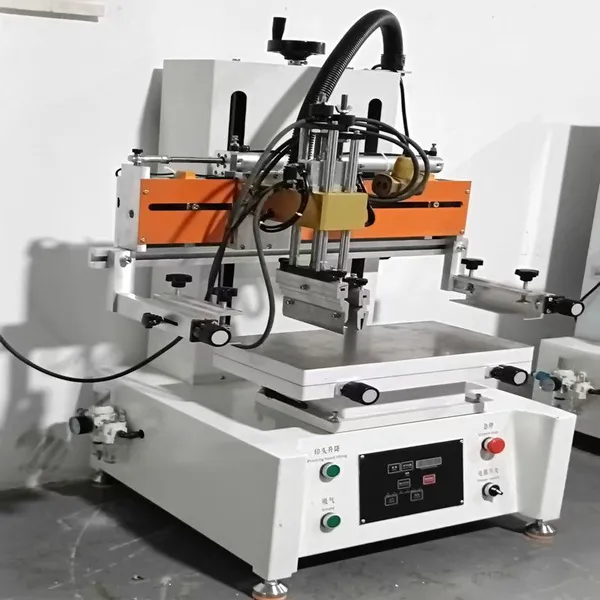

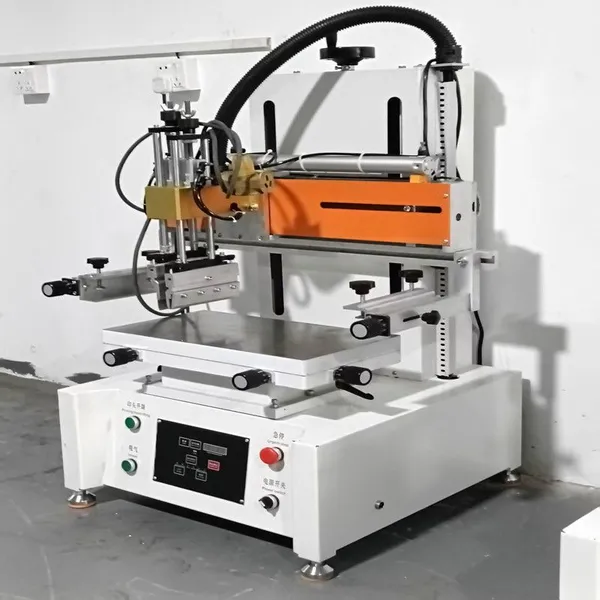

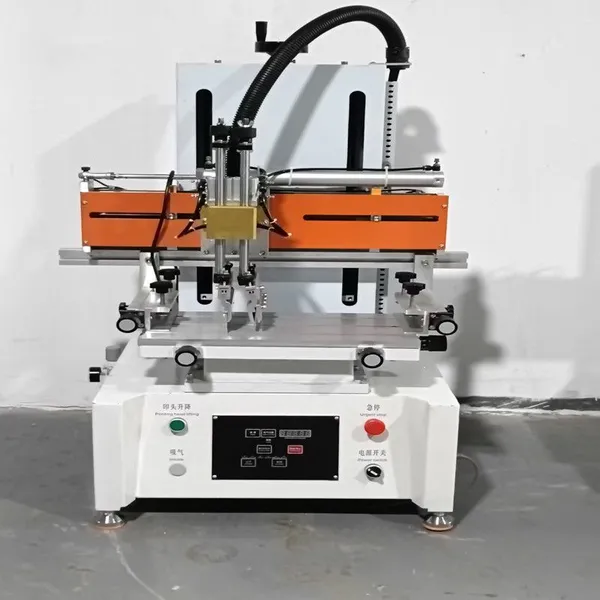

Small Flat screen printing machine
1. specification
Model NO.：MC-2030
Printing area：200*300mm
Printing speed：1500pcs/h
Power：110/220V 50w
Size: 60*75*110cm
Weight：92KG
2. Application

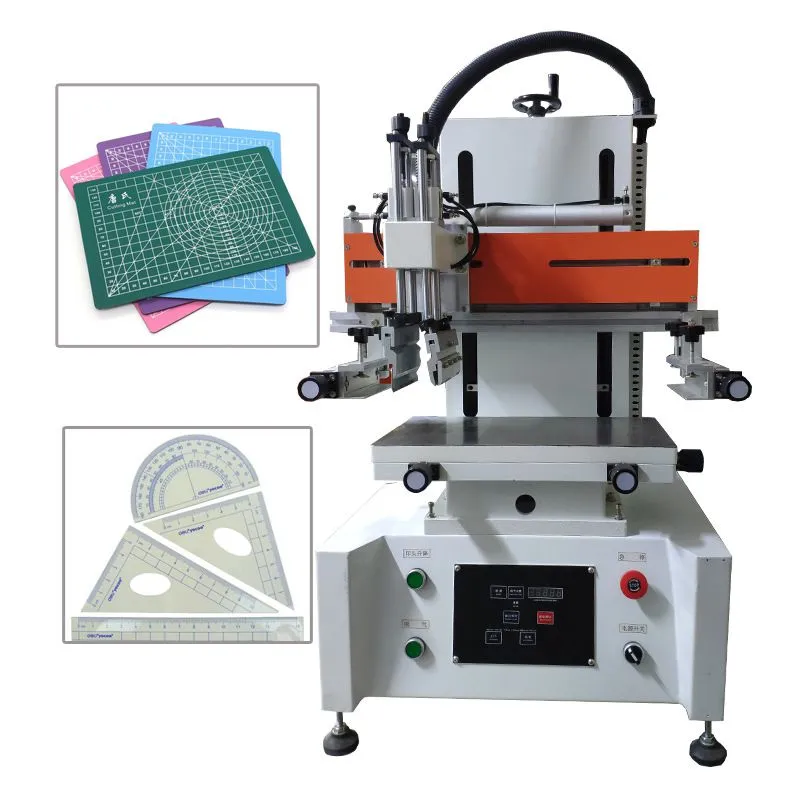

It is suitable for flat printing on glass, VCD, nameplates, stickers, credit cards, ceramic decals, wooden toy puzzles, PCB in the electronics industry, SMT solder paste, membrane switches, etc. It is also suitable for flat printing on products with high requirements for overprint accuracy using gold and silver cardboard, metal sheets, PVC, etc. as substrates.
3. Technology parameter
1. Microcomputer control each function action, high degree of automation |
14. The mesh plate quick lifting device makes it quick and convenient to change the mesh plate |
2. Automatic four-digit counter to count the number of prints |
15. with long suction and automatic suction function |
3. Fully cast aluminum body, with metal painting on the surface |
16. Action mode selection: fully automatic/semi-automatic/manual |
4. Double-column lifting structure, stable and precise height |
17. Pneumatic mode: panel/foot switch |
5. Left and right stroke can be adjusted |
18.Left and right drive mode: pneumatic |
6. The Angle of scraper and reinker can be adjusted |
19. Up and down drive mode: pneumatic |
7.Constant pressure device of scraper ensures stable pressure during printing |
20. Scraper pressure control: constant pressure with pressure regulating valve |
8. up and down stroke:125mm |
21. Left and right stroke：350mm |
9. The position of the frame can be adjusted front and back, left and right, and horizontally |
22. Table front and back, left and right, rotation Angle fine turning |
10. Suction stainless steel table, adsorption of various film products |
23. Equipped with high-quality buffer to eliminate printing vibration |
11. scraping size :10*50mm |
24. Maximum height of the plate：150mm |
12. The machine running speed is fast, stable, low noise |
25.Work plate area:250*450mm |
13.Original high quality components, quality assurance |
26. Maximum frame size：300*650mm |
FAQ
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 8 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 8 years and has a reputation for delivering high-quality products and excellent
customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on returns and refunds?
A: We have a flexible returns and refunds policy that allows customers to return products within 7 days of purchase for a full
refund or exchange. We also offer warranties on our products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including ISO9001 and BSCI and ISO14001
