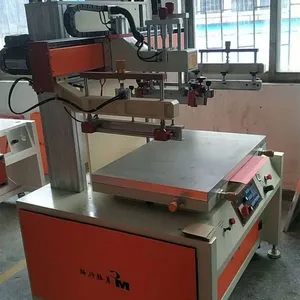

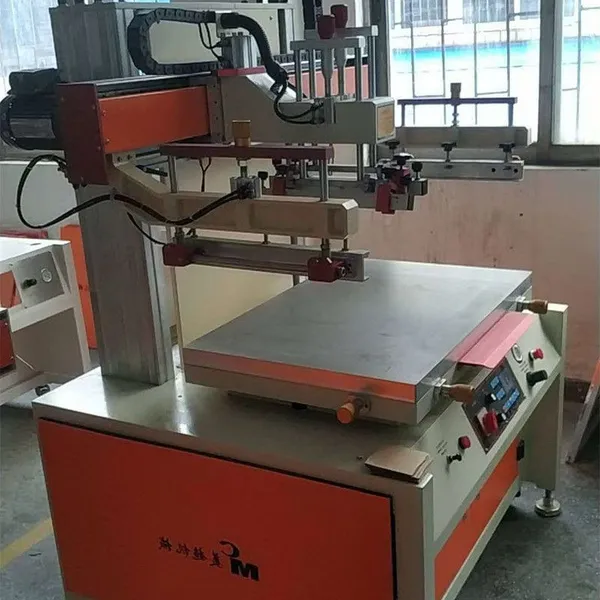

Desktop flat screen printing machine
1. specification
Model No.：MC-4060
Printing area：300*500mm
Printing speed：800pcs/h（1time/4.5s）
Power：110/220V 50w
Size: 78*98*100cm
Weight：300KG
2. Application
1. It is suitable for the flat printing of lucid CD,lucid nameplate, lucid self-adhesive, electronic industry PCB, SMT plate, film etc. It is also suitable for the flat printing of products with high overprinting precision.
3. Technology parameter
1. Microcomputer control each function action, high degree of automation |
14. The mesh plate quick lifting device makes it quick and convenient to change the mesh plate |
2. Automatic four-digit counter to count the number of prints |
15. with long suction and automatic suction function |
3. Fully cast aluminum body, with metal painting on the surface |
16. The Angle of scraper and can be adjusted |
4. Double-column lifting structure, stable and precise height |
17. Pneumatic mode: panel/foot switch |
5. Left and right stroke can be adjusted |
18.Left and right drive mode: pneumatic |
6.Equipped with high-quality buffer to eliminate printing vibration |
19. Up and down drive mode: pneumatic |
7.Constant pressure device of scraper ensures stable pressure during printing |
20. Scraper pressure control: constant pressure with pressure regulating valve |
8. up and down stroke:150mm |
21. Left and right stroke：500mm |
9. The position of the frame can be adjusted front and back, left and right, and horizontally |
22. Table front and back, left and right, rotation Angle fine turning |
10. Suction stainless steel table, adsorption of various film products |
23.Action mode : fully automatic/semi-automatic |
11. scraping size :10*50mm |
24. Maximum height of the plate：150mm |
12. The machine running speed is fast, stable, low noise |
25.Work plate area:400*600mm |
13.Original high quality components, quality assurance |
26. Maximum frame size：400*850mm |
FAQ
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 8 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 8 years and has a reputation for delivering high-quality products and excellent
customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on returns and refunds?
A: We have a flexible returns and refunds policy that allows customers to return products within 7 days of purchase for a
full refund or exchange. We also offer warranties on our products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including ISO9001 and BSCI and ISO14001
