Small single color pad printing machine
1. Specification
Model number：MC-4*4
Printing area：70*70mm
Printing speed：2000pcs/h
Power：220V 50-60mhz/30w
Size：60*43*120cm
Weight：60KG
2.Application

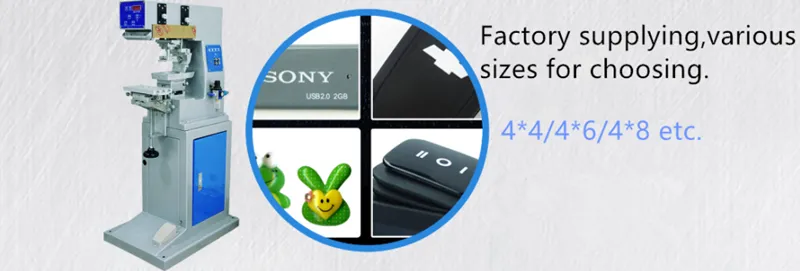

Monochrome pad printing machine is the main model of pad printing processing, there are four specifications to choose from to meet the needs of different printing areas

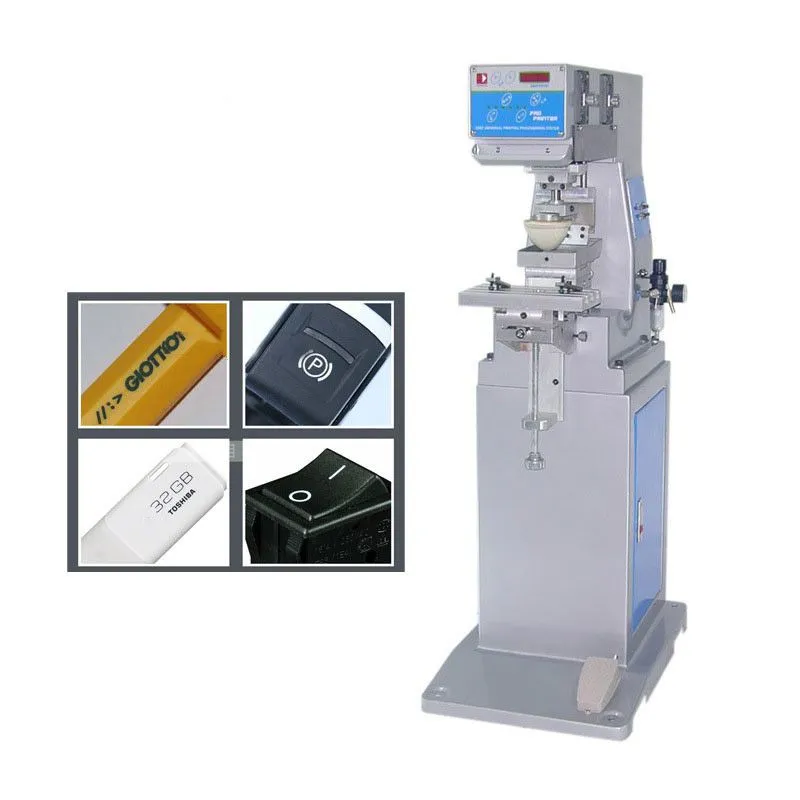

Oil tray structure, simple operation, easy to adjust the machine, by the industry users love, widely used in plastic, hardware,
Electronics, toys, gifts and other industry products surface LOGO, character, pattern printing.
3.Technology parameter
1. Standard steel size：100*100mm
2. Max customized size of steel：200*100mm
3. Glue head up and down stroke：50mm
4. Glue head front and back stroke：125mm
5. Glue head adjusted angle：360°
6. Working plate adjusted angle：±5°
7. Work piece max height：200mm
8. Glue head printing pressure：62.8kgf/cm
9. Original setting ：Can be lifted
FAQ
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 8 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 8 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on returns and refunds?
A: We have a flexible returns and refunds policy that allows customers to return products within 7 days of purchase for a full refund or exchange. We also offer warranties on our products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including ISO9001 and BSCI and ISO14001
