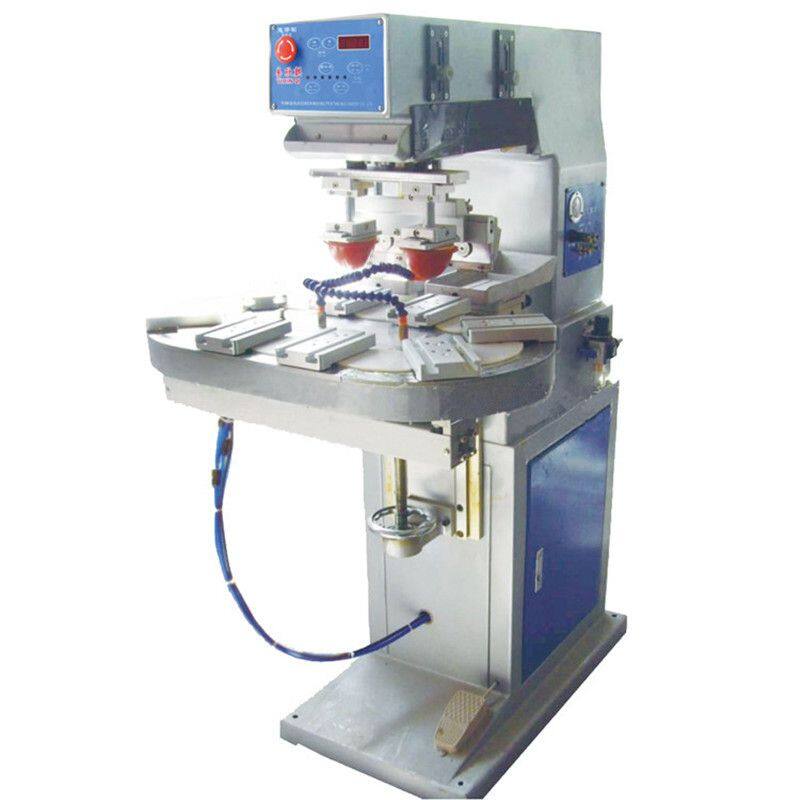

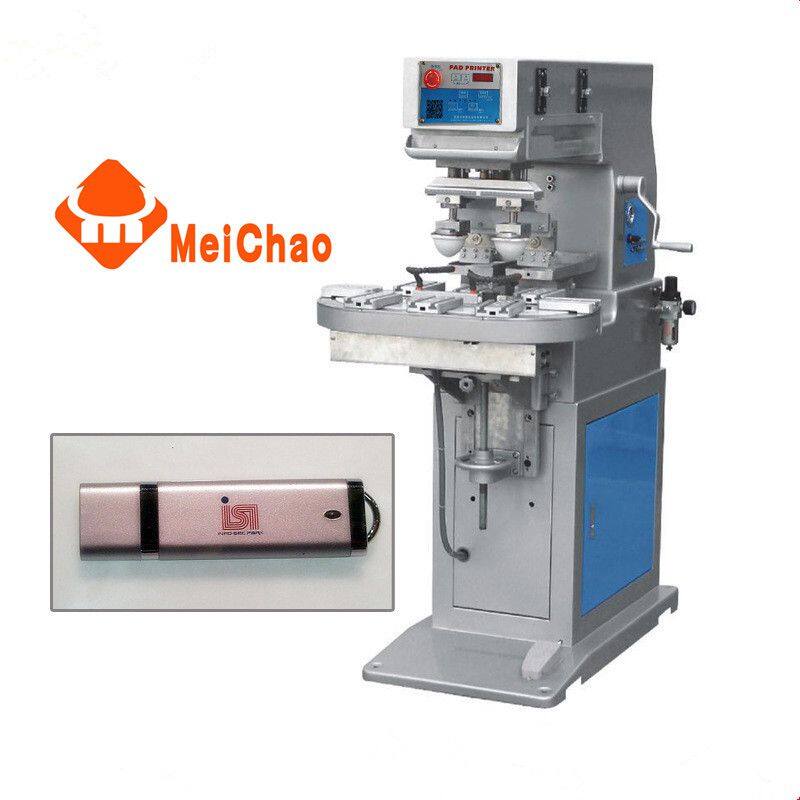

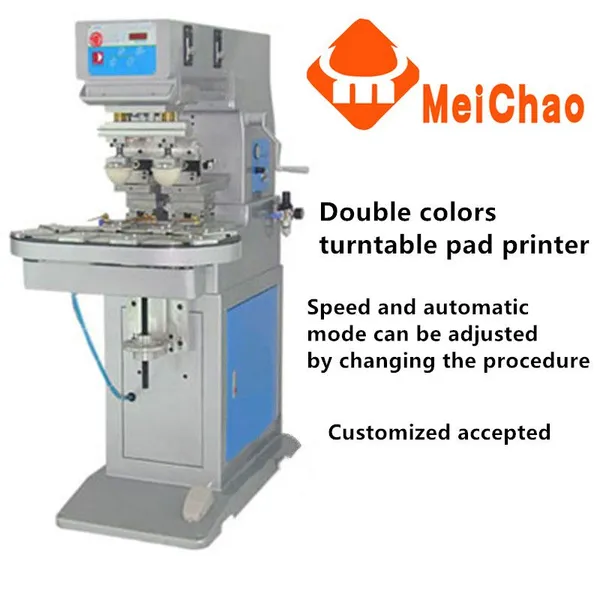

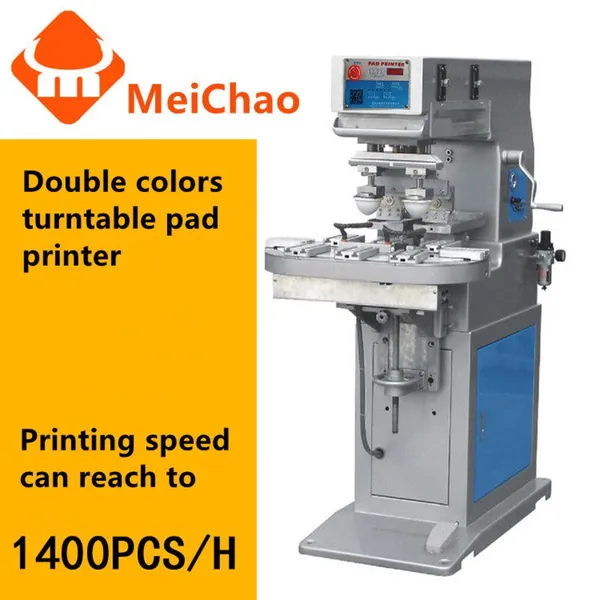

Double color turntable pad printing machine
1. Application
High-speed rotary plate printing machine, in a production cycle to achieve multiple color overprinting, the rotary plate can be turned a box to print a product using high-precision CNC processing rotary, fast speed, high precision, stable performance, can be equipped with hot air system. Suitable for electronic products, plastic shell, stationery, toys and other surface pattern LOGO printing.
2. Technology parameter
|
M2/C |
P4/C |
|
Normal standard steel size |
100*150mm |
100*200mm |
100*150mm |
Maximum printing area |
70*170mm |
70*120mm |
|
Glue head up and down distance |
75mm |
75mm |
75mm |
Glue head front and back distance |
160mm |
200mm |
160mm |
Glue head adjusted angle |
360° |
360° |
360° |
Printing colors |
2 |
2 |
4 |
Maximum height of the plate |
140mm |
140mm |
|
Printing speed |
1400pcs/h |
1200pcs/h |
1200pcs/h |
Power source |
220V 50-60mhz/30w |
22V 50-60mhz/30w |
22V 50-60mhz/30w |
Size |
92*46*138cm |
95*63*150cm |
122*92*138cm |
Weight |
95KG |
160KG |
150KG |
FAQ
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 8 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 8 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on returns and refunds?
A: We have a flexible returns and refunds policy that allows customers to return products within 7 days of purchase for a full refund or exchange. We also offer warranties on our products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including ISO9001 and BSCI and ISO14001
