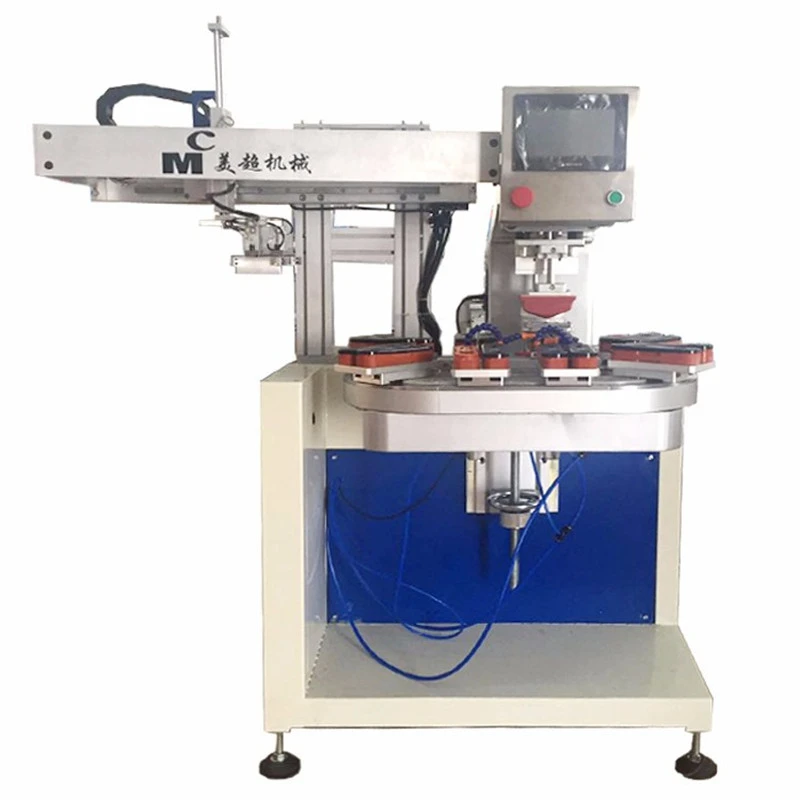

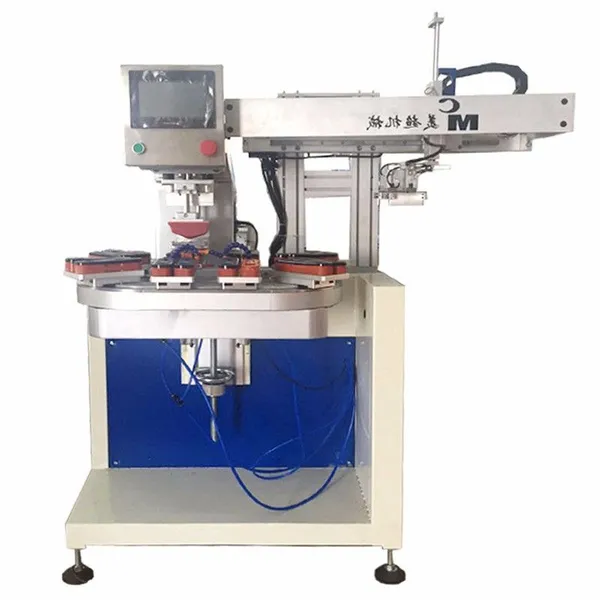

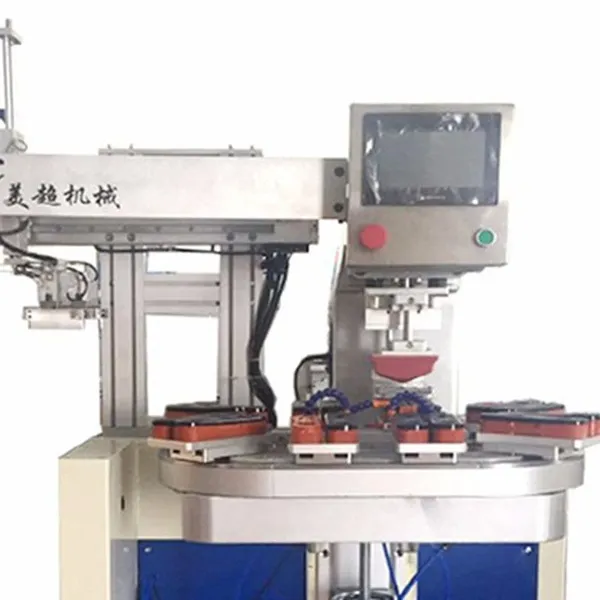

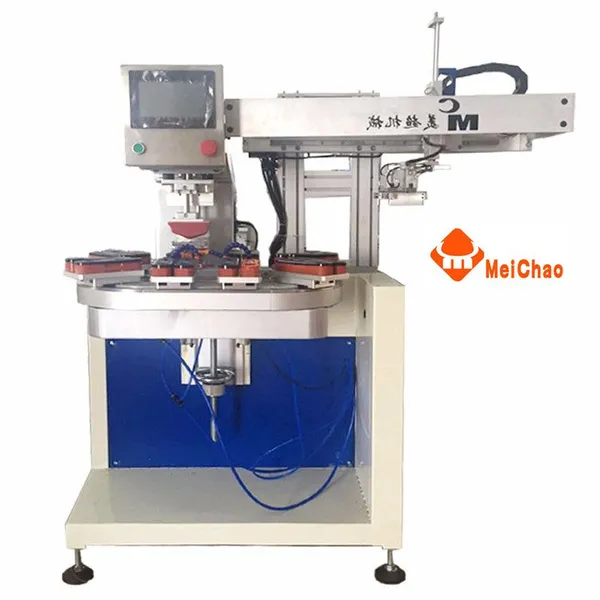

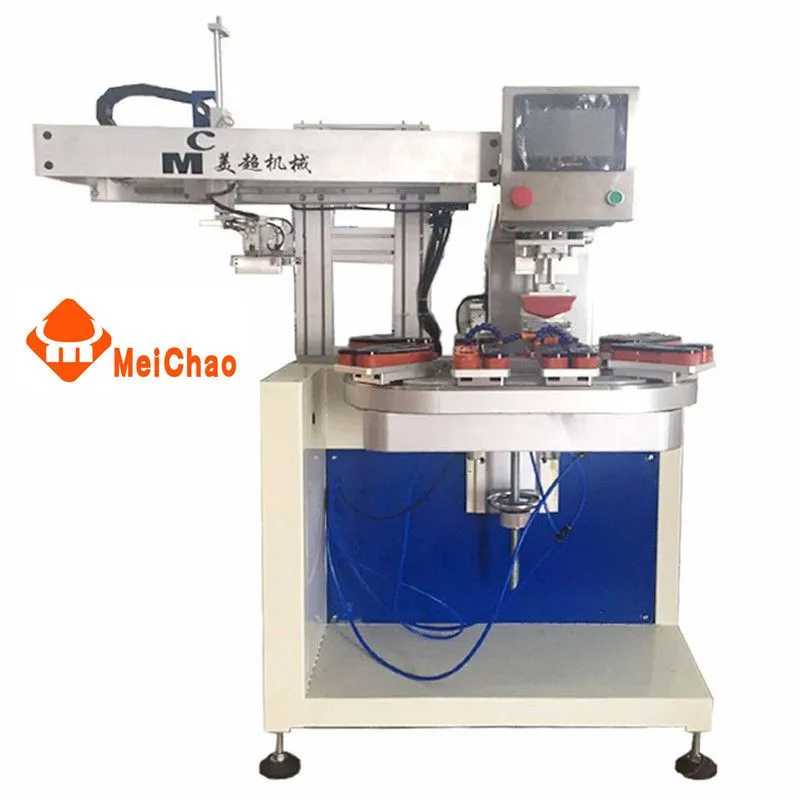

Help CenterMeichao Single Color Eight Stations Automatic Rotary Pad Printing Machine
Related Products
-
Meichao Four Colors Automatic Shuttle Pad Printing MachineUS$ 1750 - 1930MOQ: 1 Piece -
Meichao Six Colors 18 Stations Automatic Rotary Turntable Pad Prining Machine With Auto FeederUS$ 4300 - 4500MOQ: 1 Piece
-
Meichao Six Colors Semi-automatic Shuttle Pad Printing MachineUS$ 2857 - 3000MOQ: 1 Piece
-
Meichao 8 Colors 22 Stations Automatic Rotary Carousel Pad Prining Machine With Auto Feeder For Toys Tub Cup Usb and Sim Card PrintingUS$ 6000 - 6250MOQ: 1 Piece
-
High Accuracy 8 Station Semi-Automatic New Type Tampography Pad Printer 8 Color Auto Rotation Fixture Special for Irons PrintingUS$ 4280 - 4700MOQ: 1 Piece
Product name: New arrival pad printing machine
1. specification
Model No.：MC-P2/CA
Printing Area：75*120mm
Printing speed：1600pcs/h
power：110/220V 50w
size: 86*95*135cm
weight：300KG
2. Technology parameter
1.MCU IC compiler action program, a variety of printing mode selection
2. Automatic four-digit counter to count the number of prints
3. The position of workbench, glue head and oil cup can be adjusted by X.Y.Z axis
4. Oil cup design, environmental protection and prevent ink solidification
5. Unique fuselage design, easy to adjust and replace the steel plate
6. Maximum height of workpiece: 140mm
7. Steel plate size: 100*150mm
8. Glue head up and down stroke: 75mm
9. Front and back stroke of the Glue head: 160mm
10. Printing station 1 /2 optional (speed 1600pcs/h 3200pcs/h)
11. Manual feeding, mechanical hand feeding (can do automatic or manual loading and unloading)
12. The overall running speed is fast, stable and low noise
13.pneumatic method：panel/foot switch
14.Glue head fixing method: wood screw lock
15. Choose durable "Taiwan Silver" brand screw, guide rail simple oil cup assembly and disassembly, no need to move glue
16. The cutting manipulator adopts servo drive, digital input, and photoelectric detection of the machine is accurate
17. Adjustable printing speed to meet different printing requirements
18. The table can be lifted up and down to adapt to the printing of different workpieces
19. The body is cast with high quality aluminum alloy, light and durable
20.PLC computer program master, simple touch control interface
21. The whole machine is equipped with safety cover, safe and beautiful
FAQ
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 8 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 8 years and has a reputation for delivering high-quality products and excellent
customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on returns and refunds?
A: We have a flexible returns and refunds policy that allows customers to return products within 7 days of purchase for a full
refund or exchange. We also offer warranties on our products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including ISO9001 and BSCI and ISO14001
