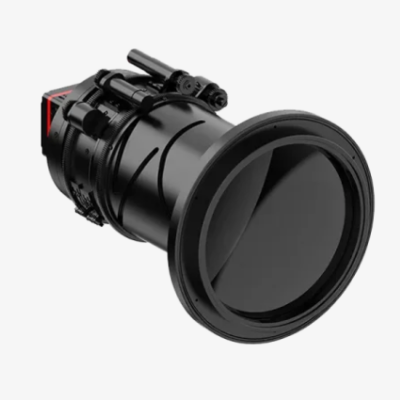

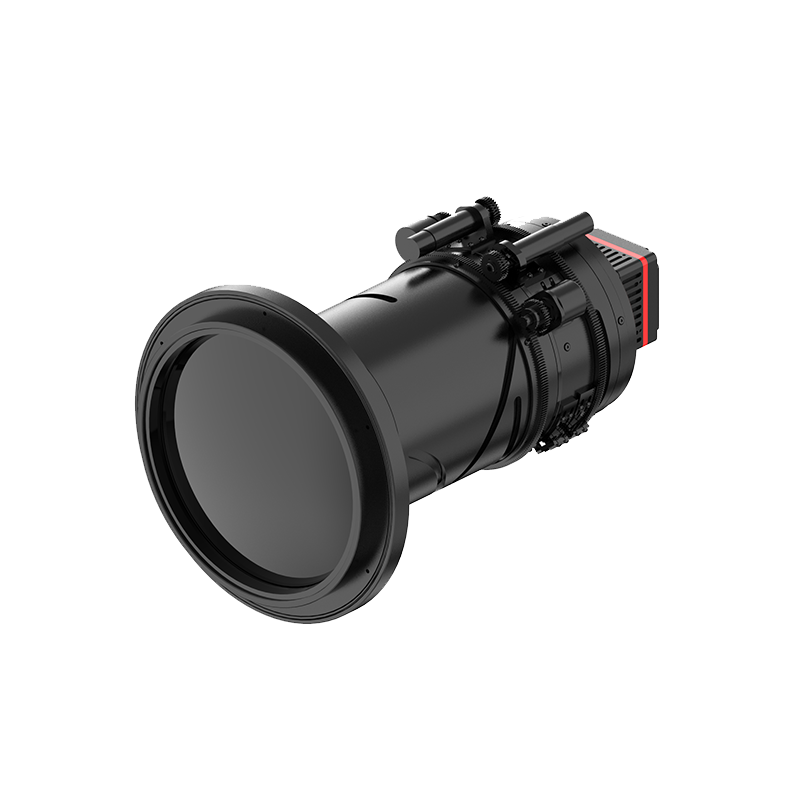

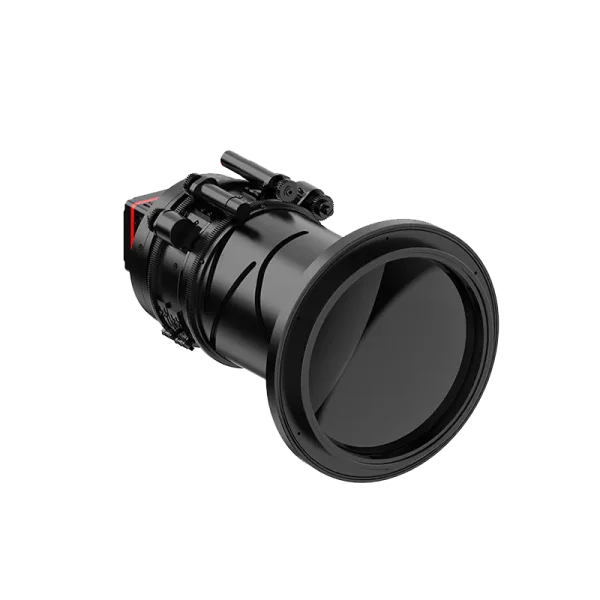

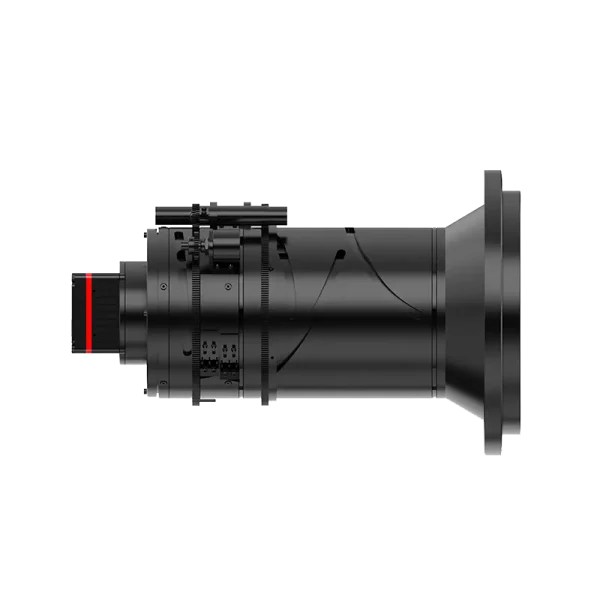

Turing F1280 Uncooled Infrared Module
The Turing F1280 uncooled infrared module has a built-in high-sensitivity VOx infrared detector, providing a consistently high-performance kernel, ultimate image algorithms, and technology of lens control, bringing a new experience for long-distance monitoring. The product can be widely used in application scenarios such as perimeter security, high-altitude observation, forest fire prevention, water area monitoring, and industrial temperature measurement.
Feature
Powerful Detector Performance
It has a built-in high-sensitivity VOx infrared detector, providing a consistently high-performance kernel, ultimate image algorithms, and technology of lens control, bringing a new experience for remote monitoring.
The product can be widely used in application scenarios such as perimeter security, high-altitude observation, forest fire prevention, water area monitoring, and industrial temperature measurement.
Upgraded Image Algorithm
The module has upgraded the image algorithm to the new generation and optimized it for special scenarios, such as forests, sea, sky, rainy, and foggy weather, providing customers with clear and sharp infrared images.
Providing Optimized Lens
It supports athermalized prime lenses, prime electric focusing lenses, and continuous zoom lenses.
It can realize electric focus, continuous zoom, automatic focus, and defocusingcompensation functions, etc.
Multiple Network Interfaces
It provides interface, BT.601, BT.1120, and other video output interface options.
Expandable SDI, USB, Cameralink, and HDMI interfaces
It provides an SDK, which is simple and easy to use, shortening the development cycle, improving efficiency, and reducing secondary development costs
Specification
| Performance Indicators | |
|---|---|
| Detector TypeUncooled VOx infrared detectorResolution1280×1024Pixel Pitch12μmDetector Frame Rate30HzSpectral Band8~14μmNETD≤50mK@25℃,F#1.0 | |
| Image Adjustment | |
| PaletteSupport (20 types)Digital Zoom1.0~4.0× continuous zoom (step size: 0.1)Brightness/Contrast AdjustmentManual/Auto 0/Auto 1Image ProcessingNon-uniformity correction/digital filter noise reduction/digital detail enhancementMirroringHorizontal/Vertical/Diagonal | |
| Network Function | |
| Network ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS, and other network protocols.Platform AccessONVIF, GB28181, SDKSimultaneous Previewed VideosUp to 20 channelsUser ManagementUp to 20 users, 3 levels: administrator, operator and userBrowserSupports IE8+ and various languages. | |
| Intelligent Functions | |
| Fire Point DetectionSupportIntelligent VideoSupportIntelligent AlarmAbnormality detection for network cable failure, IP address conflict, full memory, memory error and illegal access, and linkage alarm.Intelligent DetectionSupports Tripwire, border-crossing and regional intrusion detections, and other intelligent video analysis functions.Alarm LinkageVideo taking/image capture/Email/linked PTZ/alarm output | |
| Lens | |
| Lens TypeAthermalized/Motorized fixed-focus /Continuous zoomFocus ModeManual/AutomaticElectric FocusingSupportElectric ZoomingSupport | |
| Digital | |
| Power Supply Range5-24V DC (Recommended voltage of 12V DC)Typical Power Consumption at 25°C＜2.6WDigital VideoLVCMOS/LVDS/BT.1120/SDICommunication InterfaceRS-232/RS-485Weight168±10g (without lens)Size55mm×55mm | |
| Network Type | |
| Power Supply Range9-15V DC (Recommended voltage of 12V DC)Typical Power Consumption at 25°C＜3.8WCommunication InterfaceOne RJ45 10M/100M adaptive Ethernet port, one RS-485Alarm InterfaceOne alarm input, one alarm outputAudio InterfaceOne audio input, one audio outputWeight220±10g (without lens)Size55mm×55mm | |
| Interface | |
| Analog Video1-channel PAL system | |
| Environment Adaptability | |
| Operating Temperature-40℃～+60℃Storage Temperature-45℃～+85℃Humidity5-95%, non-condensingProduct CertificationRoSH2.0 | |
Application Scenarios
| Border and Sea Defense | Forest Fire Prevention | Industrial Temperature Measurement | Security Monitoring |
