Wall-mounted Touch Screen Display 21.5 Inch Embedded Industrial Display TKUN

Size/Proportion

21.5 inch 16:9

Model

P215WUGA

P215WUGA-A

Brightness

450cd/㎡

1000cd/㎡

Resolution

1920*1080

Contrast

1000:1

Display color

16.7M

Response time

2-5ms

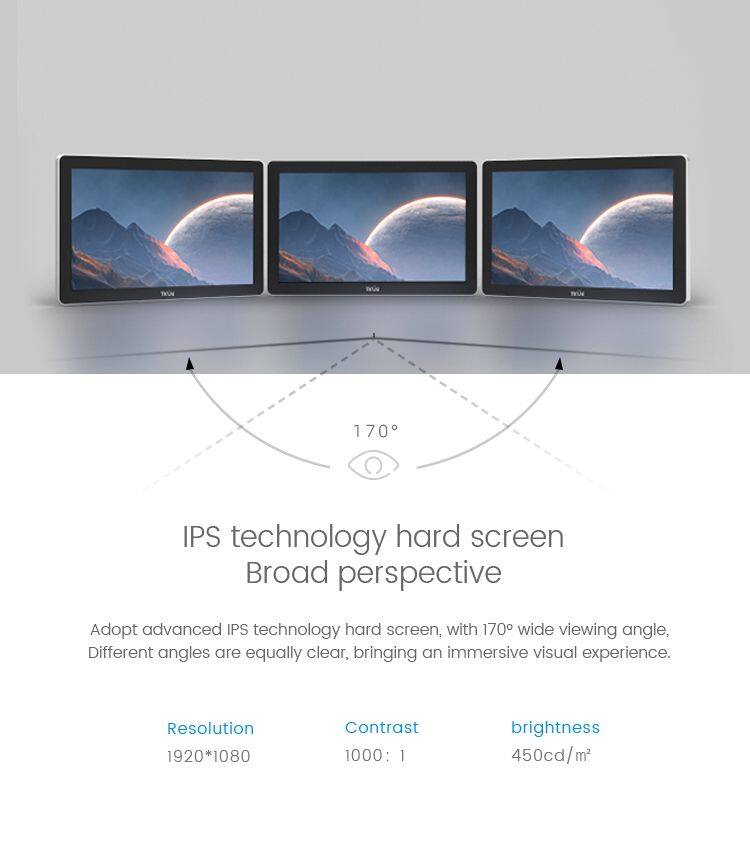

Visible angle

89/89/89/89

Pixel pitch(mm)

0.248(H)X 0.248(V)mm

Touch screen

Touch type

Projected multi-point capacitive touch screen (10 points)(AG anti-glare)

Touch screen hardness

6H

Positioning accuracy

less than 2MM

Ct.Life

≥50 million times

Touch media

Capacitive touch pen, fingers

Right click functionality

Click on a point, long and hold more than 3 seconds

Touch interface

USB(optional COM)

Support system

win7, win8, win10, android, linux and so on

Motherboard

function

Refresh frequency

60Hz

Power input

DC12-36V

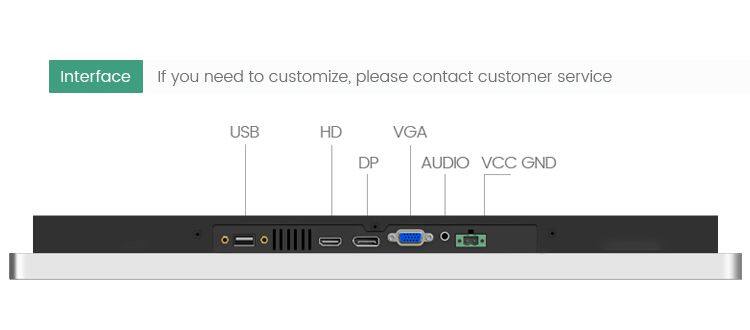

Functional interface

HD，DP，VGA，Audio

Environment

Operating temperature/humidity

-20℃ to +70℃/ 0-80% relative humidity, no condensation

Storage temperature/humidity

-40℃ to +80℃/ 0-90% relative humidity, no condensation

Vibration resistant

30Hz, X, Y, Z axis 60 minutes each

Esd protection

Class 3, contact discharge ± 6KV, air discharge ±8KV

Panel level

IK6

Safety regulations

Test standards

IEC60601

Equipment use

Application field

Military equipment, aerospace equipment, rail transit/communication, professional photography display, smart supermarket, smart robot, smart meeting room, factory assembly line/POS cash register, car GPS, elevator entrance, commercial office building, exhibition site, etc. occasion

Equipment clean

Cleaning method

Spray the screen cleaning liquid or clean water on the surface of the soft lens cloth to wipe the screen. Do not use alcohol, strong acid, or strong alkali to wipe the screen. The shell can be wiped with a soft towel or lens cloth.

Product

service

After service

one-year warranty and lifelong maintenance

Customized service

OEM/ODM is available for material, appearance, dimensions,

wide temperature, outdoor highlight, wide voltage, etc.
