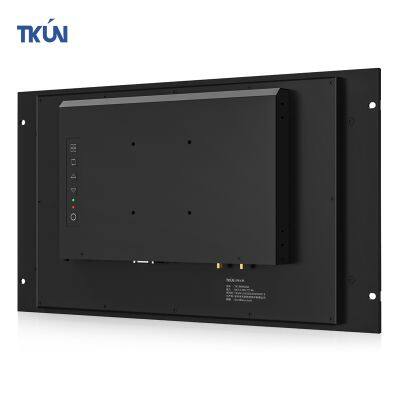

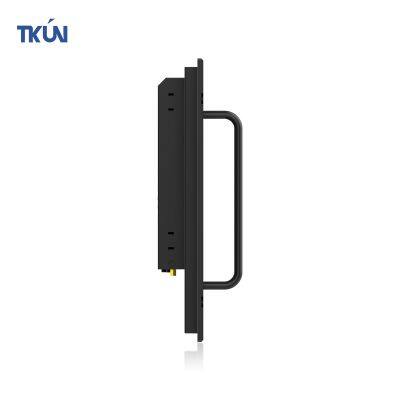

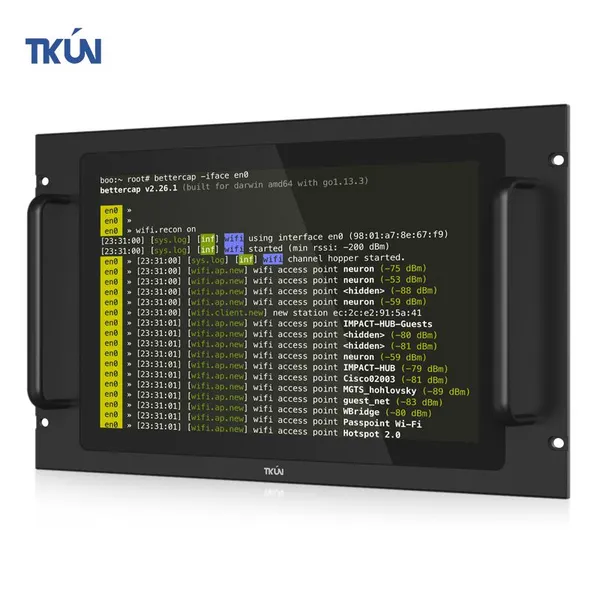

Help CenterTKUN 15.6-inch Rack Mounted Industrial Touch Display HD VGA DC12-36V
Related Products
-
TKUN High Resolution Touch Screen Monitor 1366*768 Resistive Touchscreen Industrial Monitor With HD VGA DC12-36VUS$ 415 - 418MOQ: 1 Bag -
TKUN 19 Inch Capacitive Touch Industrial Monitors 1280 X 1024 Resolution Lcd Monitor Rack Mount Industrial MonitorUS$ 405 - 408MOQ: 1 Bag
-
HD/DP/VGA 10.1 Inch Aluminium Alloy Embedded Touchscreen Monitor for Vending MachinesUS$ 251 - 259MOQ: 1 Bag
-
Embedded Front Panel IP65 Waterproof Touch Monitor 10.4 Inch 1280*800 LCD MonitorUS$ 251 - 259MOQ: 1 Bag
-
Front Panel IP65 High Brightness Marine Monitor Open Frame 10.1 Inch Industrial Touch Screen Panel pc Monitor Lcd DisplayUS$ 251 - 259MOQ: 1 Bag
Display Pane |
Brand |
TKUN |
Size/Proportion |
15.6 inch 16:9 |
|
Model |
TK156WUGA |
|
Brightness |
450cd/㎡/optional 1000cd/㎡ |
|
Resolution |
1920*1080 |
|
Contrast |
1000:1 |
|
Display color |
16.7M |
|
Response time |
2-5ms |
|
Visible angle |
85/85/85/85 |
|
Pixel pitch(mm) |
0.17925(H)X 0.17925(V) |
|
Touch screen |
Touch type |
Projected multi-point capacitive touch screen (10 points) |
Touch screen hardness |
3H |
|
Positioning accuracy |
less than 2MM |
|
Ct.Life |
≥50 million times |
|
Touch media |
Capacitive Touch Pen, Fingers |
|
Right click functionality |
click on a point, long and hold more than 3 seconds |
|
Touch interface |
USB(optional COM) |
|
Support system |
win7, win8, win10, android, linux and so on |
|
|
Motherboard Function |
Refresh frequency |
60Hz |
Power input |
DC12-36V |
|

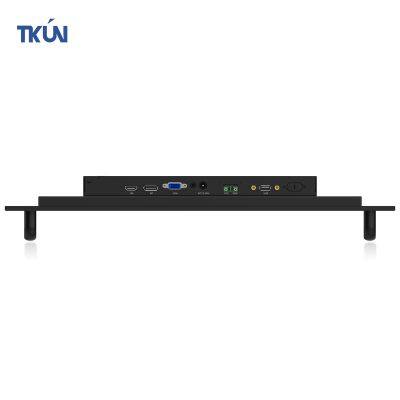

Functional interface |
HD，DP，VGA，Audio |
|
Environmental parameters |
Operating temperature/humidity |
-10℃ to +60℃/ 0-80% relative humidity, no condensation |
Storage temperature/humidity |
-15℃ to +65℃/ 0-90% relative humidity, no condensation |
|
Product Service |
After service |
one-year warranty and lifelong maintenance |
Customized service |
OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc. |
