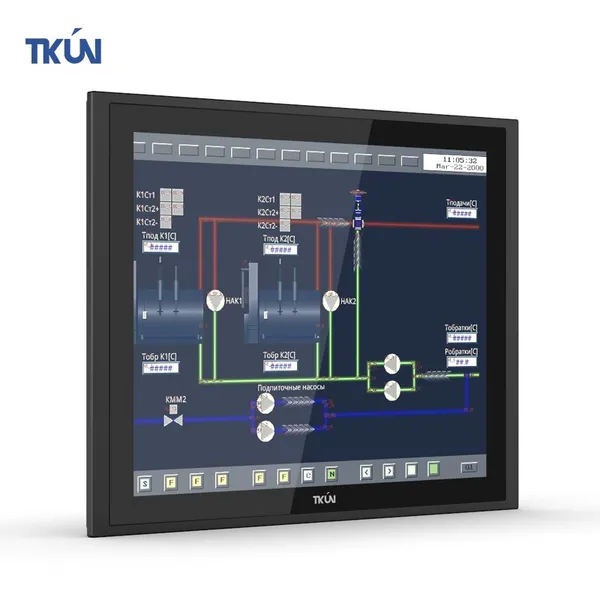

Industrial Control Tablet All-in-one 19 Inch Touch Screen Touch All-in-one1280 * 1024 LAN RS232

Size/Proportion

19 inch 5:4

Model

N190CC

Brightness

450cd/㎡ support 1000cd/㎡

Resolution

1280*1024

Contrast

1000:1

Display color

16.7M

Response time

2-5ms

Visible angle

85/85/85/85(Typ.CR≥10)

Pixel pitch

0.294（H）X 0.294（V）mm

Draw quality

3D noise reduction, high-definition signal, progressive scan

Touch function

Touch screen

Capacitive touch screen (10 points)

Surface hardness

≥6h

Transmittance

＞95%

Positioning accuracy

Less than 2mm

Click lifetime

> 60 million times

Touch medium

Current sensing, capacitive touch pen, finger

Right-click function

Click on a certain point and press for more than 3 seconds

Touch interface

USB

Motherboard function

Mainboard

TKUN industrial motherboard

CPU

Intel Celeron J6412 Quad-core

The cpu frequency is 2.0ghz， speed up to 2.6ghz

Secondary cache 1.5 MB L2 Cache

Integrated graphics

Intel® UHD Graphics for 10th Gen Intel® Processors

graphics card frequency

400MHz

dynamic frequency

800MHz

System

Windows 10 IoT Enterprise（support Windows11，Linux，UOS）

RAM

4G (optional 8G/16G/32G)

SSD

128G(optional 256G/512G/1T/2T)

LAN

LAN*2  Intel® 10M/100M/1000M/2.5Gbps adaptive

USB

USB3.0*4

COM

RS232(485)*4 （customizable RS422）

HD

HD*1

SIM

SIM*1

Extensible

4 expansion interfaces,(interface type COM, GPIO,USB)

Wireless network

Wireless card

Wifi is not available as standard (optional)

Open close

Power

Power*1 (power-on and power-on function can be set)

Power input

AC/DC

DC9-36V

Watchdog

Watch dog timer

0-255 seconds, providing watchdog routine

Product power

Power

≤20W

Environment

Operating

temperature/humidity

-20℃ to +70℃/ 0-80% relative humidity, no condensation

Storage

temperature/humidity

-40℃ to +80℃/0-90% relative humidity, no condensation

Vibration resistant

30Hz, X, Y, Z axis 60 minutes each

Esd protection

Class 3, contact discharge ± 6KV, air discharge ±8KV

Panel level

IK6

Test standards

IEC60601

Product service

After service

one-year warranty and lifelong maintenance

Customized service

OEM/ODM is available for material, appearance, dimensions,

wide temperature, outdoor highlight, wide voltage, etc.
