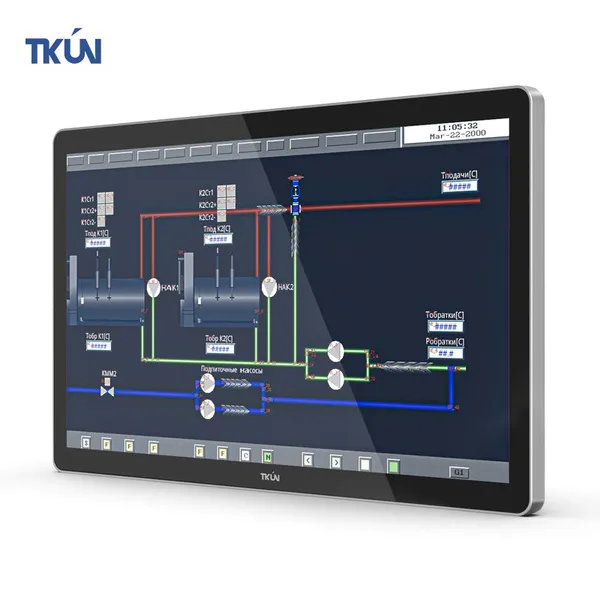

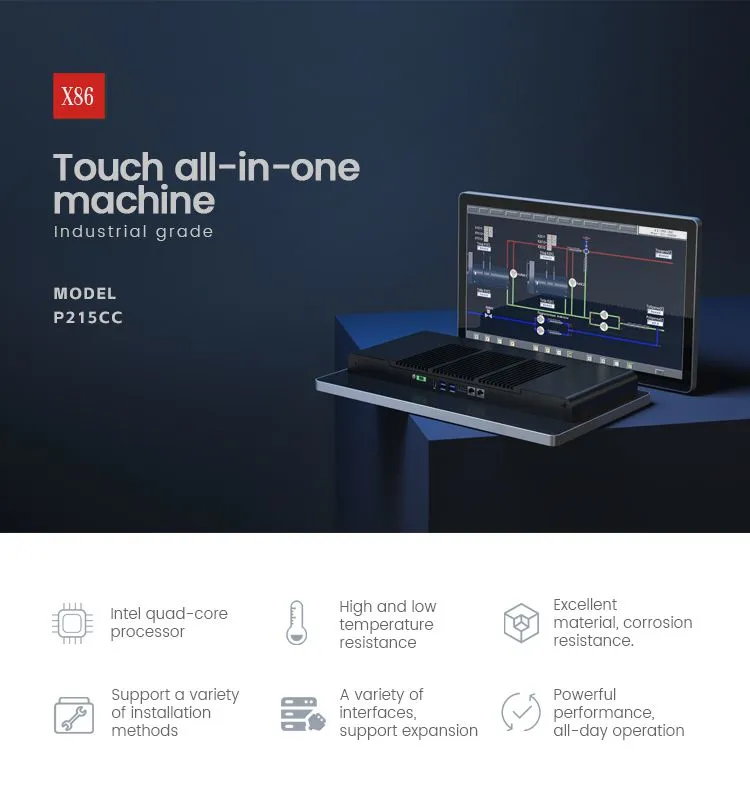

Help CenterTKUN 21.5inch Multi-touch Screen All-in-one Machine Machine Factory I3/i5/i7 1920*1080 With RS232 LAN SIM Card Slot
Related Products
-
TKUN24inch Customized 1920 * 1080 Industrial Control Query All-in-one Machine for Industrial Tablet ComputersUS$ 560 - 562MOQ: 1 Bag -
TKUN 17.3inch Rack Mounted Industrial Touch All-in-one Rack Mounted Display With RS485 LAN USB WiFiUS$ 580 - 582MOQ: 1 Bag
-
TKUN19inch Rack Mounted Industrial All-in-one Machine1280*102410 Point Capacitive Touch Screen for Network CabinetUS$ 670 - 672MOQ: 1 Bag
-
TKUN6.4inch Embedded Industrial Control All-in-one 1024 * 768Multi-touch Screen All-in-one With LAN RS232US$ 320 - 323MOQ: 1 Bag
-
TKUN Customized Military Grade Wide Temperature Reinforcement All-in-one 8.4-inch 800*600 Low-power Touch All-in-oneUS$ 568 - 570MOQ: 1 Set
Display Pane |
Brand |
TKUN |
Size/Proportion |
21.5 inch 16:9 |
|
Model |
P215CC |
|
Brightness |
450cd/㎡Can be customized 1000cd/㎡ |
|
Resolution |
1920*1080 |
|
Contrast |
1000:1 |
|
Display color |
16.7m |
|
Response time |
2-5ms |
|
Visible angle |
85/85/85/85(Typ.CR≥10) |
|
Pixel pitch |
0.248(H)X 0.248(V)mm |
|
Draw quality |
3D noise reduction, high-definition signal, progressive scan |
|
Touch Function |
Touch screen |
Capacitive touch screen (10 points) |
Surface hardness |
≥6h |
|
Transmittance |
＞95% |
|
Positioning accuracy |
less than 2mm |
|
Click lifetime |
> 60 million times |
|
Touch medium |
Current sensing, capacitive touch pen, finger |
|
Right-click function |
click on a certain point and press for more than 3 seconds |
|
Touch interface |
USB |
|
|
Motherboard Function |
Mainboard |
TKUN industrial motherboard |
CPU |
Intel Celeron J6412 Quad-core |
|
the cpu frequency is 2.0ghz，Speed Up to 2.6GHz |
||
Secondary cache 1.5 MB L2 Cache |
||
integrated graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
graphics frequency |
400MHz |
|
dynamic frequency |
800MHz |
|
System |
Windows 10 IoT Enterprise（support Windows11，Linux，UOS） |
|
RAM |
4G (optional 8G/16G/32G) |
|
SSD |
128G(optional 256G/512G/1T/2T) |
|
LAN |
LAN*2 Intel® 10M/100M/1000M/2.5Gbps adaptive |
|
USB |
USB3.0*4 |
|
COM |
RS232(485)*4 （customizable RS422） |
|
HD |
HD*1 |
|
SIM |
SIM*1 |
|
Extensible |
6 expansion interfaces,(interface type COM, GPIO,USB,AC) |
|
Wireless Network |
Wireless card |
Wifi is not available as standard (optional) |
Open Close |
Power |
Power*1 (power-on and power-on function can be set) |
Power Input |
AC/DC |
DC9-36V |
Watchdog |
Watch dog timer |
0-255 seconds, providing watchdog routine |
Product Power |
Power |
≤20W |
Environment |
Operating temperature/humidity |
-10℃ to +60℃/ 0-80% relative humidity, no condensation |
|
Storage temperature/humidity |
-15℃ to +65℃/0-90% relative humidity, no condensation |
|
Vibration resistant |
30Hz, X, Y, Z axis 60 minutes each |
|
Esd protection |
Class 3, contact discharge ± 6KV, air discharge ±8KV |
|
Panel level |
IK6 |
|
Safety regulations |
Test standards |
IEC60601 |
Product Service |
After service |
one-year warranty and lifelong maintenance |
Customized service |
OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc. |
