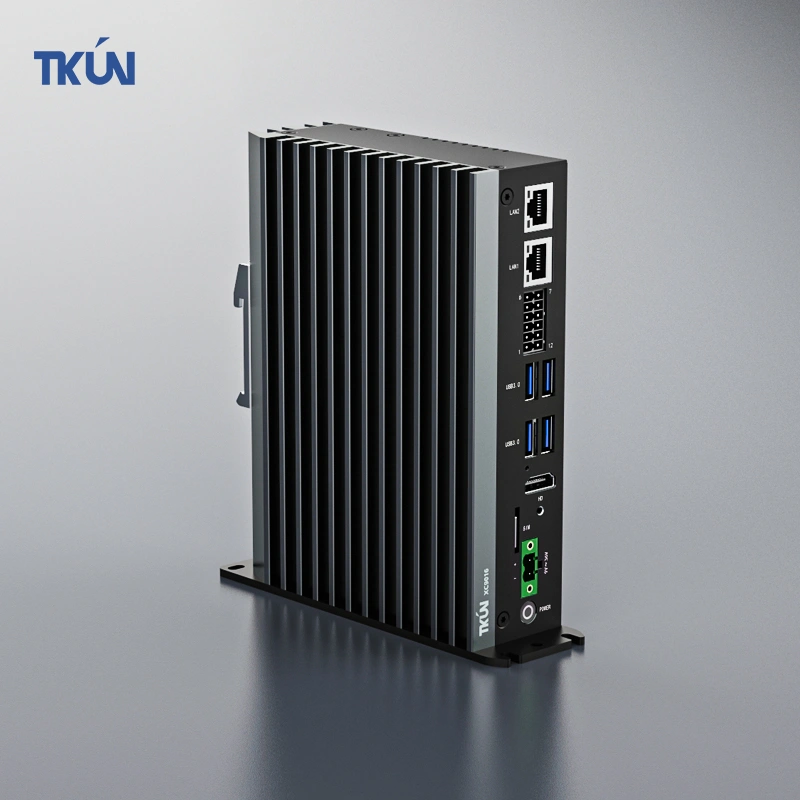

Help CenterTKUN Anti Interference Fanless Mini Computer Industrial Control Host Windows RS232 USB LAN
Related Products
-
RK3568 Android Industrial Control Host Embedded Android Box With LAN SIM tf Card SlotUS$ 230 - 232MOQ: 1 Bag -
Industrial Grade Wide Temperature Mini Host J6412 Customized Embedded Industrial Computer ManufacturerNegotiableMOQ: 1 Bag
-
Embedded Industrial Control Computer Linux/Windows System Industrial Control Host TKUN Tiangong ControlUS$ 468 - 470MOQ: 1 Bag
-
Fanless Aluminum Alloy Mini Computer Industrial Control Computer LAN HD Dual Network Port Windows SystemUS$ 880 - 885MOQ: 1 Bag
-
TKUN 15.6-inch Rack Mounted Industrial Touch Display HD VGA DC12-36VUS$ 385 - 388MOQ: 1 Bag
|

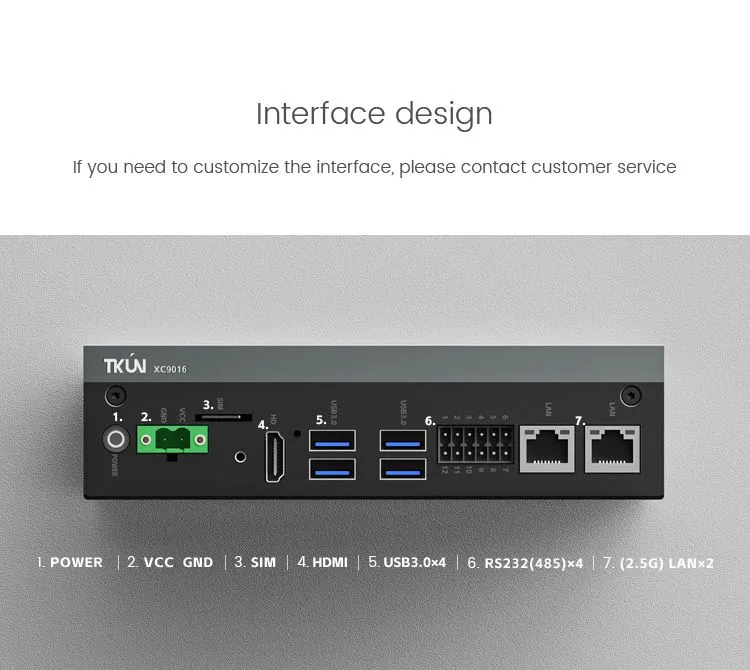

Motherboard function |
Brand |
TKUN |
|
Model |
XC9016 |
||
Mainboard |
TKUN industrial motherboard |
||
CPU |
Intel Celeron J6412 Quad-core |
||
The cpu frequency is 2.0ghz， speed up to 2.6ghz |
|||
Secondary cache 1.5 MB L2 Cache |
|||
Integrated graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
||
System |
Support Windows10/11，Linux，UOS |
||
RAM |
4G (optional 8G/16G/32G) |
||
SSD |
128G(optional 256G/512G/1T/2T/4T) |
||
LAN |
LAN*2 Intel® 10M/100M/1000M/2.5Gbps adaptive |
||
USB |
USB3.0*4 |
||
COM |
RS232(485)*4 （customized RS422） |
||
HD |
HD*1 maximum support 4096*2160p@24Hz |
||
SIM |
SIM*1 |
||
Wireless network |
Wireless card |
Wifi is not available as standard (optional) |
|
Open close |
Power |
Power*1 (power-on and power-on function can be set) |
|
Power input |
AC/DC |
DC9-36V |
|
Watchdog |
Watch dog timer |
0-255 seconds, providing watchdog routine |
|
Product Power |
Power |
≤20W |
|
Environment |
Operating temperature/humidity |
-40℃ to +80℃/ 0-80% relative humidity, no condensation |
|
|
Storage temperature/humidity |
-40℃ to +80℃/0-90% relative humidity, no condensation |
||
The temperature value is limited to the body and inside zero components, memory and hard disk need to be customized |
|||
Vibration resistant |
30Hz, X, Y, Z axis 60 minutes each |
||
Esd protection |
Class 3, contact discharge ± 6KV, air discharge ±8KV |
||
Test standards |
IEC60601 |
||
Product service |
After service |
one-year warranty and lifelong maintenance |
|
Customized service |
OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc. |
||
