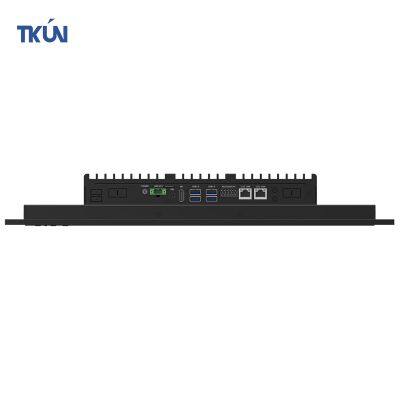

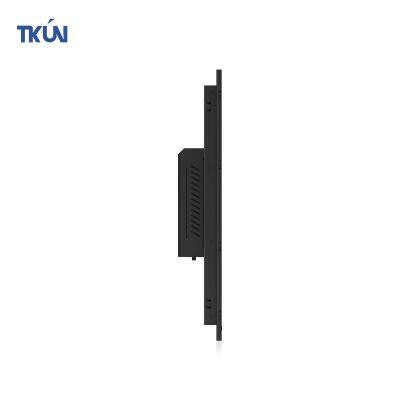

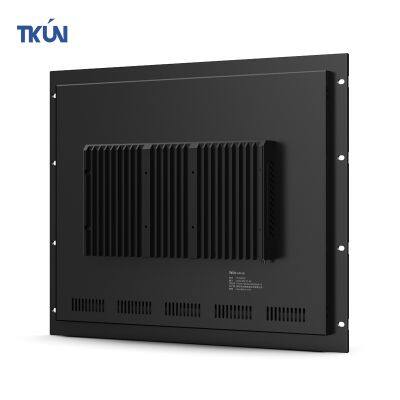

Help CenterTKUN19inch Rack Mounted Industrial All-in-one Machine1280*102410 Point Capacitive Touch Screen for Network Cabinet
Related Products
-
TKUN6.4inch Embedded Industrial Control All-in-one 1024 * 768Multi-touch Screen All-in-one With LAN RS232US$ 320 - 323MOQ: 1 Bag -
TKUN Customized Military Grade Wide Temperature Reinforcement All-in-one 8.4-inch 800*600 Low-power Touch All-in-oneUS$ 568 - 570MOQ: 1 Set
-
TKUN Touchscreen All-in-one Terminal Manufacturer 10.4-inch 1024 * 768 Touch Screen All-in-one ComputerUS$ 485 - 485MOQ: 1 Set
-
TKUN Query All-in-one Control Computer 12 Inch Embedded Industrial Tablet Computer With RS232 LANUS$ 599 - 600MOQ: 1 Set
-
Industrial Control Tablet All-in-one 19 Inch Touch Screen Touch All-in-one1280 * 1024 LAN RS232US$ 673 - 675MOQ: 1 Set
Display Pane |
Brand |
TKUN |
Size/Proportion |
19 inch 5:4 |
|
Model |
TK190CC |
|
Brightness |
450cd/㎡optional 1000cd/㎡ |
|
Resolution |
1280*1024 |
|
Contrast |
1000:1 |
|
Display color |
16.7m |
|
Response time |
2-5ms |
|
Visible angle |
85/85/85/85(Typ.CR≥10) |
|
Pixel pitch(mm) |
0.294（H）X0.294（V） |
|
Draw quality |
3D noise reduction, high-definition signal, progressive scan |
|
Touch Function |
Touch screen |
Capacitive touch screen (10 points) |
Surface hardness |
≥6h |
|
Transmittance |
＞95% |
|
Positioning accuracy |
less than 2mm |
|
Click lifetime |
> 60 million times |
|
Touch medium |
Current sensing, capacitive touch pen, finger |
|
Right-click function |
click on a certain point and press for more than 3 seconds |
|
Touch interface |
USB |
|
|
Motherboard Function |
Mainboard |
TKUN industrial motherboard |
CPU |
Intel Celeron J6412 Quad-core |
|
the cpu frequency is 2.0ghz，Max Speed Up to 2.6GHz |
||
Secondary cache 1.5 MB L2 Cache |
||
integrated graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
graphics card frequency |
400MHz |
|
dynamic frequency |
800MHz |
|
System |
Windows 10 IoT Enterprise（Support Windows11，Linux，UOS） |
|
RAM |
4G (optional 8G/16G/32G) |
|
SSD |
128G(optional 256G/512G/1T/2T) |
|
LAN |
LAN*2 Intel® 10M/100M/1000M/2.5Gbps adaptive |
|
USB |
USB3.0*4 |
|
COM |
RS232(485)*4 （Customizable RS422） |
|
HD |
HD*1 Resolution up to 4096x2160@24Hz |
|
SIM |
SIM*1 Micro SIM Card Slot |
|
Wireless Network |
Wireless card |
Wifi is not available as standard (optional) |
Open Close |
Power |
Power*1 (power-on and power-on function can be set) |
Power Input |
AC/DC |
DC9-36V |
Watchdog |
Watch dog timer |
0-255 seconds, providing watchdog routine |
Product Power |
Power |
≤20W |
|
Work Environment |
Operating Temperature/humidity |
-20℃ to +70℃/0-80% relative humidity, no condensation |
|
storage Temperature/humidity |
-40℃ to +80℃/0-90% relative humidity, no condensation |
|
Product Service |
After service |
one-year warranty and lifelong maintenance |
Customized service |
OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc. |
