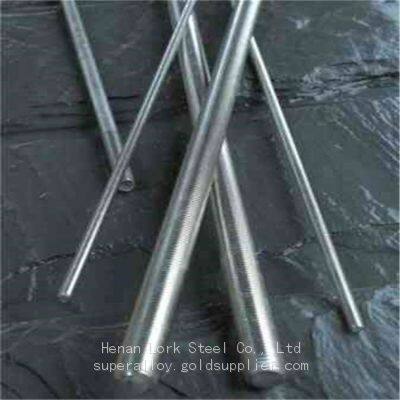

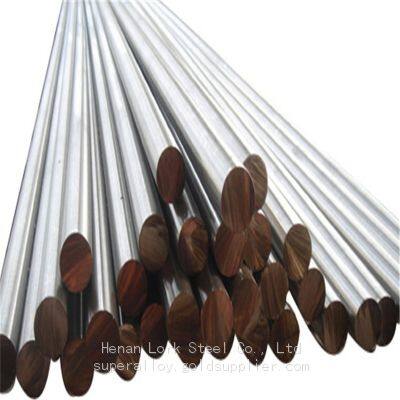

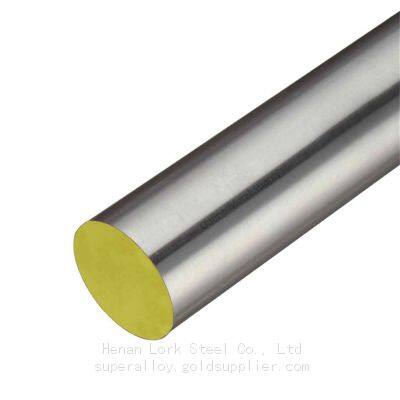

Help CenterLork Good Creep Oxidation Resistance Monel 502 Nickel Alloy Bar for Propeller Shafts
Related Products
-
Lork Black Finish Monel 400 Nickel Alloy Round Bar for FramesUS$ 20 - 30MOQ: 100 Kilograms -
Lork High Hardness DIN 2.4375 Monel K500 Nickel Based Alloy Plate for Sea Water Pump ShaftsUS$ 30 - 40MOQ: 100 Kilograms
-
Lork Wholesale Spot Brushed Round Monel R405 Nickel Based Allooy Bar for FastenersUS$ 20 - 30MOQ: 100 Kilograms
-
Lork Hot Selling Ni-Cu Alloy Monel 404 Nickel Plate for Chemistry and Petrochemical YieldUS$ 30 - 40MOQ: 100 Kilograms
-
Lork Brushed Finish Incoloy A-286 Nickel Round Bar With Spot WholesaleUS$ 30 - 40MOQ: 100 Kilograms
Introduction
Super alloys have the capacity to function at very high temperatures and severe mechanical stress. They also have good creep and oxidation resistance. They can be formed in different shapes. They are subjected to solid-solution hardening, work hardening, and precipitation hardening for increasing their strength. There are three types of super alloys, namely cobalt-based, nickel-based, and iron-based alloys.
Monel 502 is a nickel-copper alloy. The following datasheet gives an overview of Monel 502.
Chemical Composition
The following table shows the chemical composition of Monel 502.
| Element | Content (%) |
|---|---|
| Nickel , Ni | 63-70 |
| Aluminum, Al | 2.5-3.5 |
| Iron, Fe | 2 max |
| Manganese, Mn | 1.5 max |
| Titanium, Ti | 0.5 max |
| Silicon, Si | 0.5 max |
| Carbon, C | 0.1 max |
| Sulfur, S | 0.01 max |
| Copper, Cu | Remainder |
Physical Properties
The physical properties of Monel 502 are highlighted in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.7-8.03 g/cm³ | 0.278-0.290 lb/in³ |
| Melting point | 1330°C | 2425°F |
Mechanical Properties
The mechanical properties of Monel 502 are outlined in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 1158 MPa | 167954 psi |
| Yield strength | 1034 MPa | 149969 psi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Poisson's ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation | 15% | 15% |
| Reduction of area | 53% | 53% |
| Hardness | 335 | 335 |
Thermal Properties
The thermal properties of Monel 502 are displayed in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Thermal conductivity | 42.7 W/mK | 296 BTU in/hr.ft².°F |
Other Designations
Other designation equivalent to Monel 502 is AMS 4677.
Fabrication and Heat TreatmentMachinability
Monel 502 can be machined similar to that of austenitic stainless steels.
Forming
Monel 502 can be formed using conventional techniques.
Welding
Monel 502 can be welded using conventional methods.
Heat Treatment
Monel 502 reacts to heat treatment and annealing.
Forging
Monel 502 is forged at 1010 to 1149°C (1850 to 2100°F) followed by quenching in water.
Hot Working
Monel 502 is hot worked at 872 to 1149°C (1600 to 2100°F).
Cold Working
Monel 502 can be cold worked using conventional methods.
Annealing
Monel 502 is annealed at 1038°C (1900°F) followed by quenching in water.
Aging
Monel 502 is aged at temperatures ranging from 594 to 608°C (1100 to 1125°F) followed by cooling in a furnace.
Applications
Monel 502 is used in the following applications:
Fasteners
Pump shafting
Propeller shafts
Valve components
