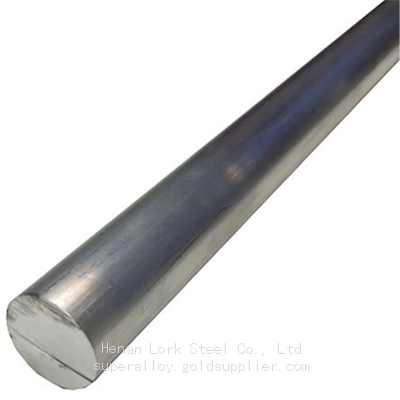

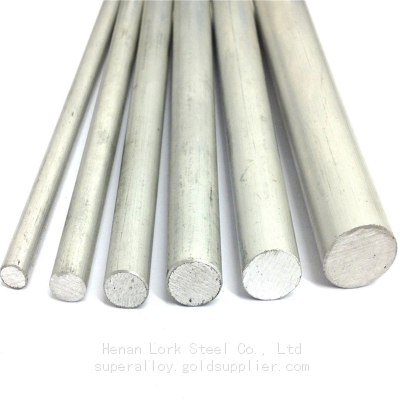

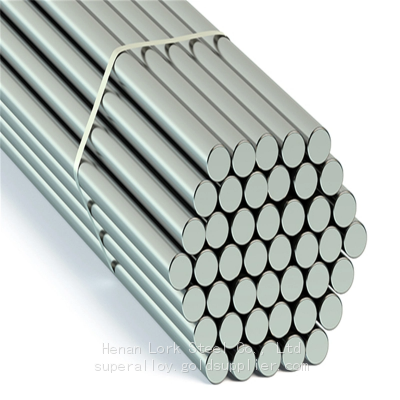

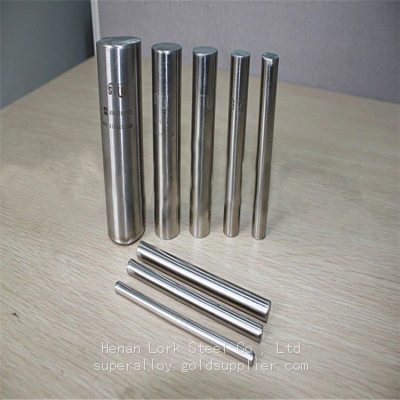

Help CenterLork Wholesale Spot Brushed Round Monel R405 Nickel Based Allooy Bar for Fasteners
Related Products
-
Lork Hot Selling Ni-Cu Alloy Monel 404 Nickel Plate for Chemistry and Petrochemical YieldUS$ 30 - 40MOQ: 100 Kilograms -
Lork Good Creep Oxidation Resistance Monel 502 Nickel Alloy Bar for Propeller ShaftsUS$ 20 - 30MOQ: 100 Kilograms
-
Lork Black Finish Monel 400 Nickel Alloy Round Bar for FramesUS$ 20 - 30MOQ: 100 Kilograms
-
Lork High Hardness DIN 2.4375 Monel K500 Nickel Based Alloy Plate for Sea Water Pump ShaftsUS$ 30 - 40MOQ: 100 Kilograms
-
Lork Brushed Finish Incoloy A-286 Nickel Round Bar With Spot WholesaleUS$ 30 - 40MOQ: 100 Kilograms
Introduction
Super alloys are also referred to as high performance alloys. They have good creep and oxidation resistance. Cobalt-based, nickel-based, and iron-based alloys are three types of super alloys. They have the capacity to function where high surface stability is required, and also at very high temperatures and severe mechanical stress. They are available in different shapes.
Monel R-405 is a free-machining version of Monel 400. It is added with sulfur to improve its machinability. The datasheet given below provides more details about Monel R-405.
Chemical Composition
The chemical composition of Monel R-405 is outlined in the following table.
| Elements | Content (%) |
|---|---|
| Nickel, Ni | 63 |
| Copper, Cu | 28-34 |
| Iron, Fe | 2.50 |
| Manganese, Mn | 2 |
| Carbon, C | 0.30 |
| Silicon, Si | 0.50 |
| Sulfur, S | 0.025 - 0.060 |
The physical properties of Monel R-405 are given in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.80 g/cm³ | 0.318 lb/in³ |
| Melting point | 1338°C | 2440°F |
The following table shows the mechanical properties of Monel R-405.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile Strength (annealed) | 550 MPa | 79800 psi |
| Yield strength (@ strain 0.200%, annealed) | 240 MPa | 34800 psi |
| Elongation at break (annealed) | 40% | 40% |
The thermal properties of Monel R-405 are highlighted in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (@ 20-100°C/68-212°F) | 13.7 µm/m°C | 7.61 µin/in°F |
| Thermal conductivity | 21.8 W/mK | 151 BTU in/hr.ft².°F |
Other designations that are equivalent to Monel R-405 include:
AMS 4674
ASTM B164 CLASS B
ASTM F467
ASTM F468
QQ N281
Monel R-405 has good machinability.
FormingMonel R-405 has excellent formability.
WeldingMonel R-405 can be welded using standard welding techniques.
Heat TreatmentMonel R-405 does not react to heat treatment.
ForgingForging of Monel R-405 is not recommended due to the presence of the intentional sulfur content.
Hot WorkingMonel R-405 should not be hot worked.
Cold WorkingMonel R-405 can be easily cold worked.
AnnealingMonel R-405 is annealed at 927°C (1700°F) followed by air cooling.
HardeningMonel R-405 can be hardened only by cold working.
ApplicationsMonel R-405 is used in screw machine stock for fasteners.
Q1: Do you accept the trial order ?
A1: Yes,if we have the exactly size in stock.we can delivery even 1 piece/meter .Q2: Can I have free sample before making orders?A2: Yes,we can supply free sample as requirement,but buyer needs to pay the freight charges ,the freight fee will return to buyer after making order.
Q3: How do you control the quality ?
A3: MTC and PMI will be sent before shipment,any 3rd party inspection if need .
Q4: How about your delivery time ?
A4: Generally delivery time is 15 working days .
Q5: How can I quickly get the price list ?
A5: Directly click "chat now" or send us email with detail specifications,you will get the official price list in 1 hour .
