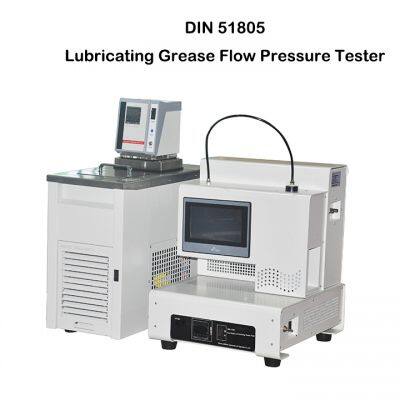

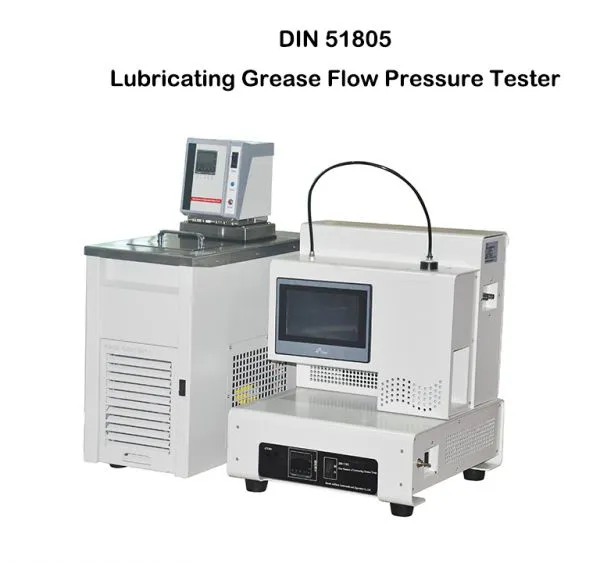

Lubricating Grease Flow Pressure Tester DIN 51805
Instrument Introduction
This instrument is the first of its kind in China and jointly developed with the standard. Its principle is to install the grease, and within a time interval of 30 s under the standard temperature, the pressure rises to a certain value related to the flow pressure of the grease, until the grease flows. The mid-section or pressure gas flows out from the test nozzle.
Technical Parameter
1. Applicable standard: DIN51805
2. Temperature control method: Digital display PID temperature controller
3. Temperature control range: Rt ~ -40℃, accuracy ± 0.1℃
4. Pressure display: Digital pressure gauge
5. Pressure regulation: Automatic
6. Refrigeration method: Semiconductor refrigeration
7. Machine power: 1000W
8. Pressure range: 0～5000mbar
9. Working power supply: AC220V/50HZ
10. Main engine Packing size: 740 *410 *800mm; weight:44.5kg
11. Accessory Packing size: 590 *550*650mm; weight: 39kg
12. HS Code: 9031809090
Main Feature
1. Manufactured with reference to the new standard, no glass accessories and consumables are required;
2. Automatically select the expected boost mode of the third gear according to the standard requirements;
3. Automatic control and measurement of pressure;
4. Large LCD screen touch operation;
5. Semiconductor refrigerator, cooling speed is fast;
6. Realize full automation to replace the original manual and time-consuming instruments;
7. Microcomputer temperature controller, PT100 temperature sensor, high precision.
