Low Temperature Brookfield Viscosity Tester ASTM D2983
Product model: JF11145B
Product Introduction
The instrument is suitable for detecting fluid lubricants for vehicles with a viscosity range of 300～1000000mPa.s, such as gear oil, hydraulic transmission oil, industrial and automotive hydraulic oil. The instrument adopts a special rotational viscometer, which is easy to operate and has high precision.
Technical Parameter
1. Applicable standard: ASTM D2983, GB/T11145
2. Refrigeration method: Semiconductor refrigeration

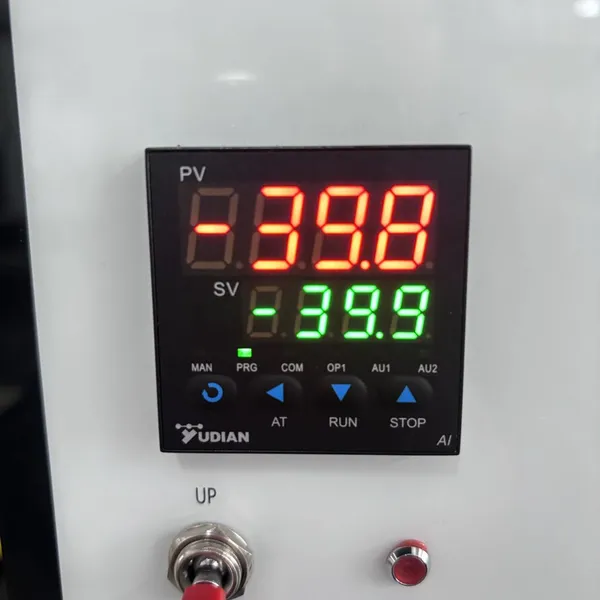

3. Temperature control method: Digital display PID temperature controller
4. Temperature control range: Rt～-40±0.1℃
5. Speed range: 0.5～60r/min
6. Power of the whole machine: 800W
7. Working power supply: AC220,240V 50,60HZ
8. Operation mode: Touch screen operation
9. Lifting method: Automatic lifting
10. Instrument size: 400*250*700mm
11. Net weight: 28KG
12. HS Code: 9027899090
Main Feature
1. The precision mandrel meets the standard requirements and has high test repeatability;
2. Using metal bath cold trap
3. Standard glass test tube, inner diameter 22～22.5mm, length 120mm;
4. Special rotational viscometer equipped with seven spindle speeds;
5. Semiconductor refrigeration can be tested at a constant temperature for 2 hours. Compared with the traditional air constant temperature of 18 hours, the efficiency is increased by nearly 90%;
6. Microcomputer temperature controller, PID adjustment, temperature control range: normal temperature ~ -40 ℃, PT100 temperature sensor, high precision;
7. The viscosity detection range is very large, 300～1000000mPa.s
8. LCD display, programmable selection of test speed, test time, automatic calculation of results;
9. Equipped with additive analysis software, the viscometer can be well calibrated and analyzed for linear accuracy;
10. One-key automatic lifting structure, automatic positioning of viscometer;
11. The test tube has a locking function to prevent excessive viscosity from driving the test tube to affect the accuracy.
Accessory List
No. |
Name |
Spec. |
Qty |
No. |
Name |
Spec |
Qty |
|
1 |
Main engine |
JF11145B |
1 set |
12 |
Inner hexagon spanner |
1 pair |
||
2 |
Test tube |
4 pcs |
13 |
Insulation ring |
2 pcs |
|||
3 |
Standard oil |
100ml |
2 pcs |
14 |
Plastic pipette |
4 pcs |
||
4 |
Tube plug |
1 pc |
15 |
Software U Shield |
1 pc |
|||
5 |
Spindle 4 |
1 pc |
16 |
Software CD |
1 sheet |
|||
6 |
Fuse |
20A |
4 pcs |
17 |
Operating instruction |
1 pc |
||
7 |
Buchfert viscometer |
1 set |
18 |
Certificate of conformity |
1 pc |
|||
8 |
Circulation cold bath |
1 set |
19 |
Product warranty card |
1 pc |
|||
9 |
Plastic injector |
50ml |
1 pc |
|||||
10 |
Cooling water pipe |
With insulation sleeve |
2 pcs |
|||||
11 |
hexagon socket screw
|
M5×20 |
2 pcs |
