ASTM D2595 Lubricating Grease Wide Temperature Range Evaporation Loss Tester Metal Bath

Lubricating Grease Wide Temperature Range Evaporation Loss Tester

Product model: JF0661

Introduction

This instrument is suitable for detecting the evaporation loss of lubricating greases at temperatures between 93 ℃ and 316 ℃ . A weighed sample of grease in an evaporation cell is placed in a heating device maintained at the desired test temperature.  Heated air is passed over the grease surface for 22 h ± 0.1 h. The loss in weight of the sample due to evaporation is determined..

Technical Parameter

1. Applicable standard: ASTM D2595

2. Temperature control method: High-quality PID digital temperature controller

3. Temperature control accuracy: Rt~330±0.1℃

4. Heating method: Metal bath heating

5. Power of the whole machine: 3000W

6. Working unit: 2 tubes

7. Flow control: Precision flow meter

8. Working power supply: AC220V/50Hz

9. Timing method: Digital display timer

10. Instrument size: 470*540*440mm

11. Net weight: 25KG

12. HS Code: 9027899090

Main Feature

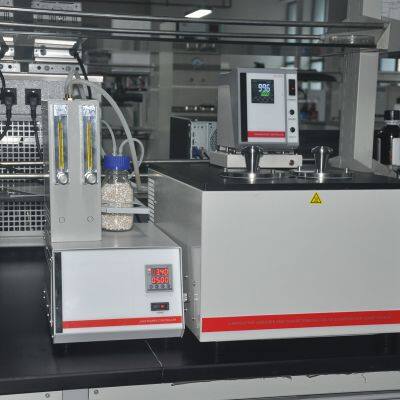

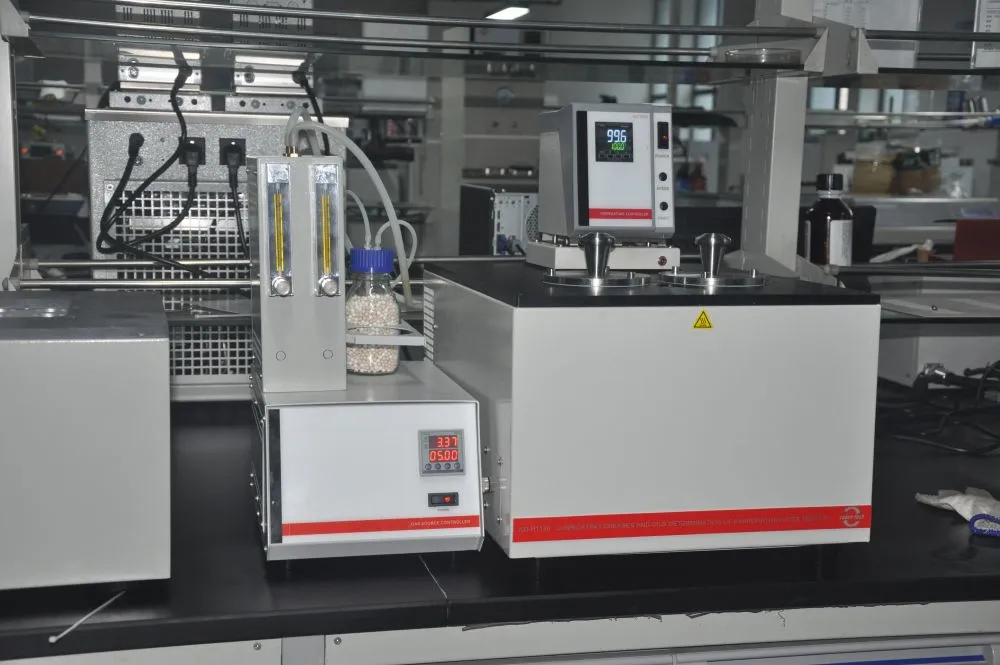

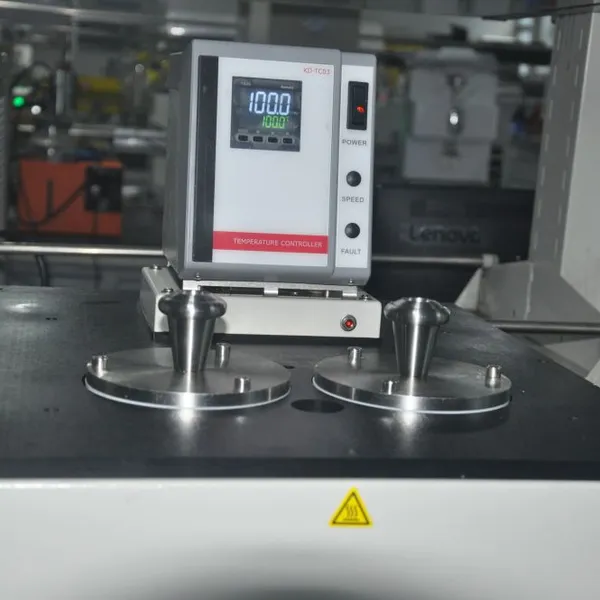

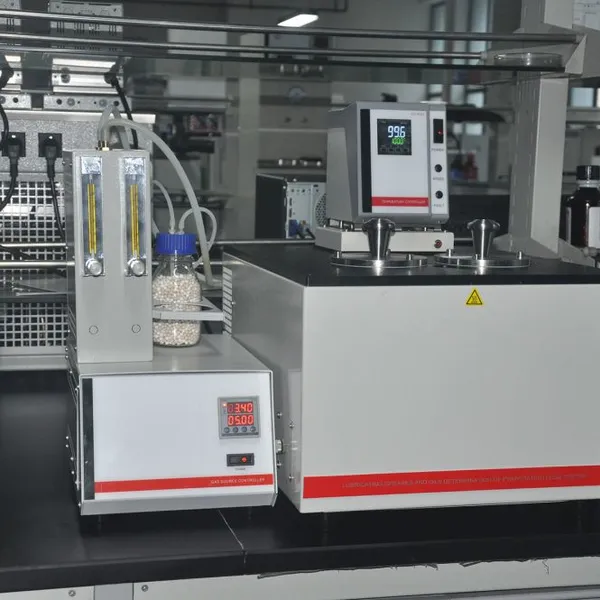

1. The instrument is desktop type including a heating bath and an accurate flow meter. Stainless steel lid has holes for sample cups

2. Stainless steel structure with ceramic coating;

3. Environmentally friendly metal bath heating, avoid oil bath heating to produce fume harm to human body, efficient thermal insulation effect;

4. Stainless steel heater;

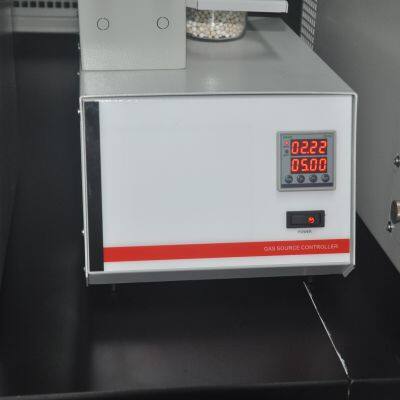

5. Precise flowmeter with needle valve, flow rate 0～2L/min;

6. Air filter with glass wool;

7. High-quality Omron PID thermostat, digital continuous temperature display, accuracy 0.1℃

8. Safety measures to prevent overheating
