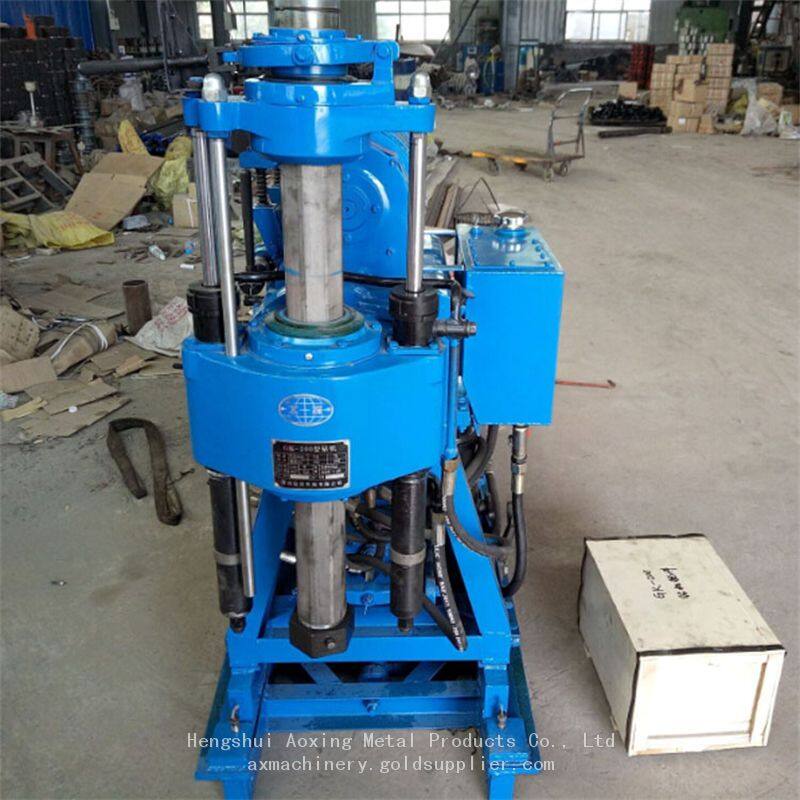

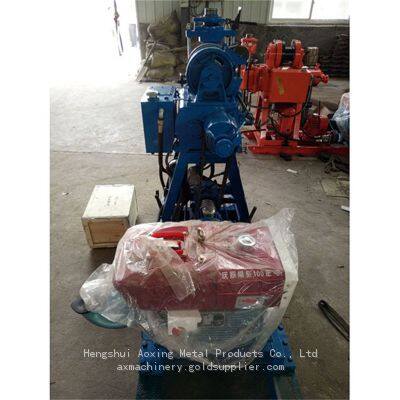

Help CenterXy-200 Type Geotechnical Exploration Drilling Rig/Well Drilling Core Drilling Rig
Related Products
-
XY-200 Portable Crawler Mounted Soil Test Drilling Machine With Hydraulic TowerNegotiableMOQ: 1 Pound -
XY-100 Portable Rotation Hydraulic Geotechnical Investigation Core Drilling RigNegotiableMOQ: 1 Pound
-
XY-3 Hydraulic Core Drilling Rig/Water Well Wrilling Rig/Survey Drilling RigNegotiableMOQ: 1 Pound
-
Portable Full Hydraulic Geotechnical Sample Exploration Wireline Core Drilling RigNegotiableMOQ: 1 Pound
-
XY-44A1400m Rock Core Drilling Machine Engineering Geological Drilling Deep Rock Core Sampling Large Hydraulic Drilling MachineNegotiableMOQ: 1 Pound
1. Applications of XY-200 hydraulic core drilling rig
Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.
2. Parameters of XY-200 hydraulic core drilling rig
Model |
XY-200 |
Maximum opening diameter |
400mm |
Maximum borehole depth |
200m |
Diameter of the end hole |
75mm |
Borehole dip angle |
90-75° |
Machine overall size |
2.75*0.95*1.60m |
Drill pipe diameter |
50mm |
Weight of drill rig diameter of drill pipe (without power) |
760kg |
Spindle | |
Shaft rotation speed |
71/142/310/20r/min |
Vertical axis stroke |
450mm |
Windlass | |
Maximum lifting weight of single rope |
2008kb |
Drum lifting speed |
17/35/75/160 rm/s |
Wire rope diameter: |
13mm |
Wire rope capacity |
35mm |
Width of sluice |
70mm |
Mud pump | |
Type: horizontal single cylinder double action |
flow：180L/min |
Maximum pressure |
1.5mpa |
Working pressure |
0.7mpa |
Inlet size |
50mm |
Outlet pipe diameter |
45mm |
Power | |
Diesel oil |
22hp |
Rated speed |
2200r/min |
Electric machinery |
15kw |
Rated speed |
1460r/min |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
Hengshui Aoxing Metal Products Co., Ltd has over 10 years of market experience and is a manufacturer and supplier of grouting materials and drilling materials for water conservancy, geology, mining, tunnels, subways, construction, surveying, geotechnical and other engineering branches.
The main products include: inflatable or water filled packers, hand operated packers, high-pressure grouting pipes, air pressure hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, cement mixers, high-speed slurry making machines, slurry stations, spraying machines, Lugeon test packers, Lugeon testing equipment, drill bits, drill rods and casings, drilling rigs, water well drilling rigs, survey drilling rigs, hydraulic drilling rigs, air compressors, drilling tools, Grouting pump accessories and drilling rig accessories, etc.
