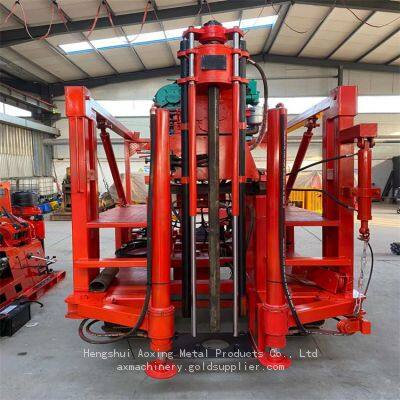

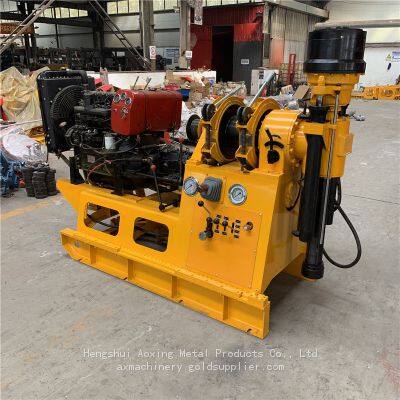

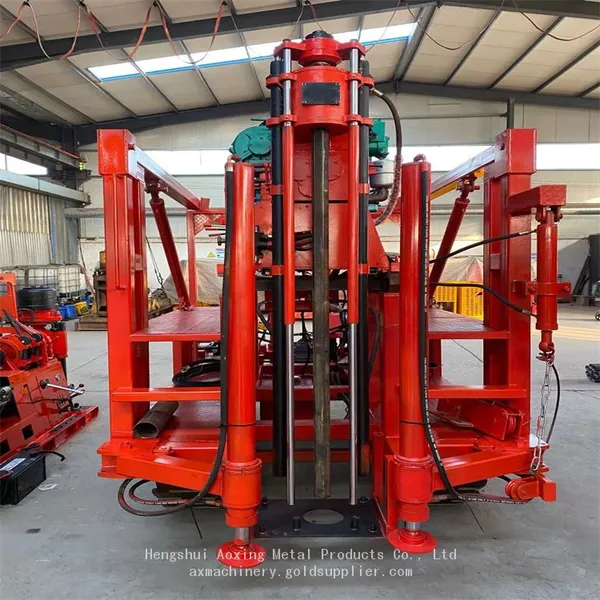

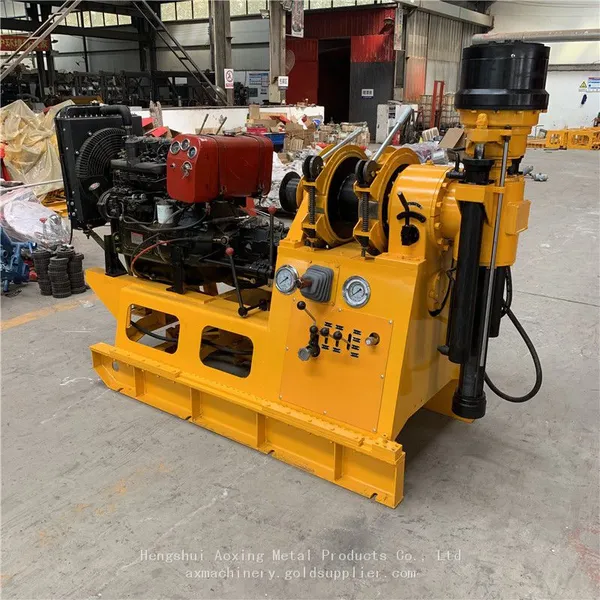

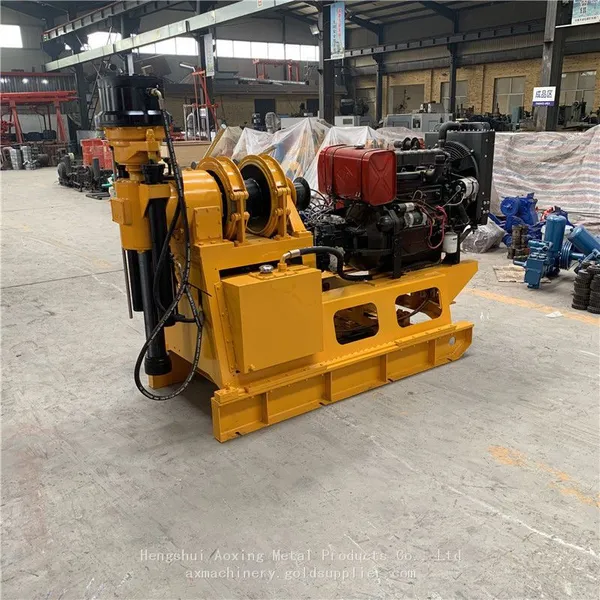

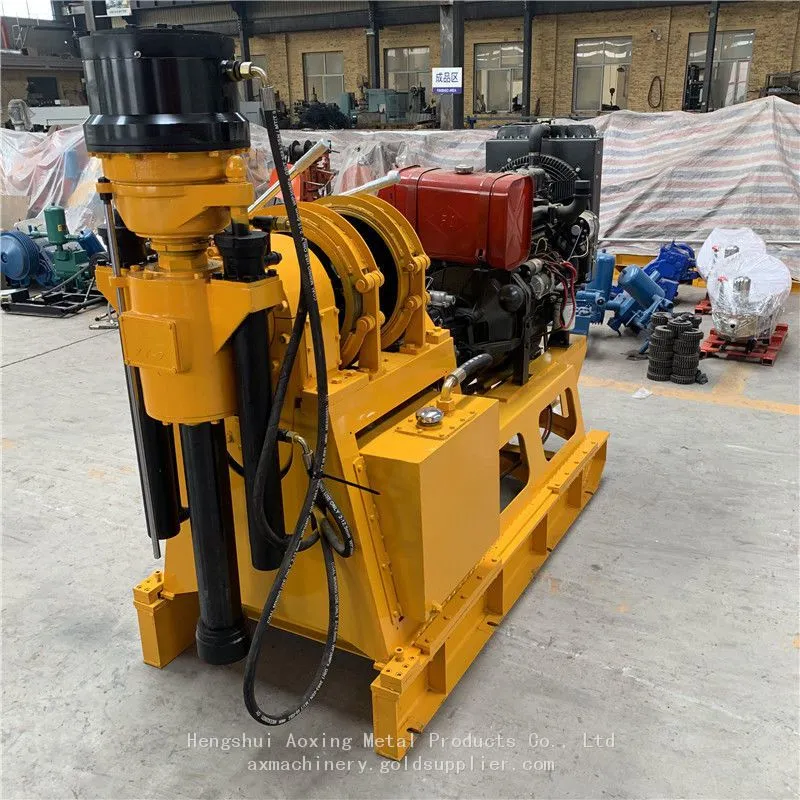

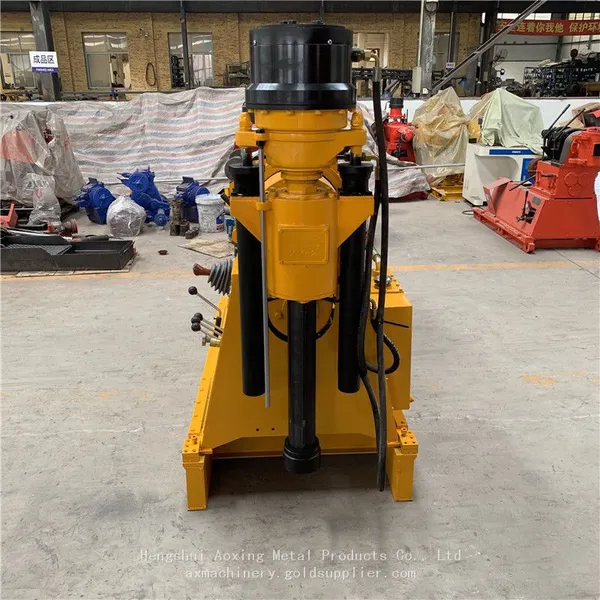

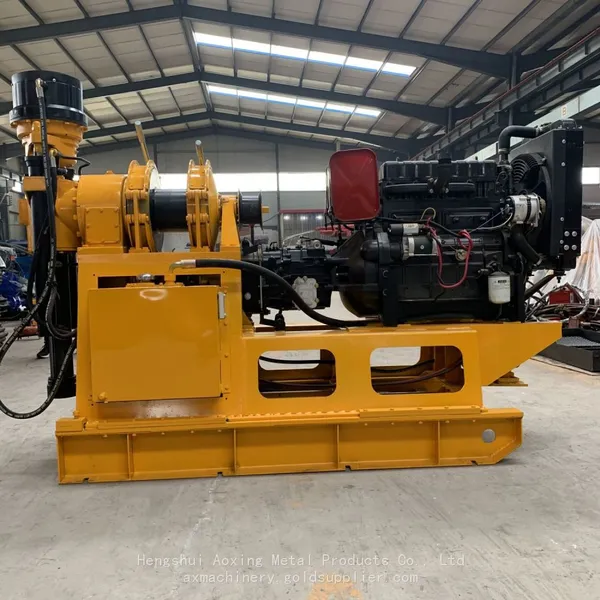

XY-2 Hydraulic Core Drilling Rig
1. Scope of application of XY-2 hydraulic core drilling rig
General geological survey exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells, etc.
2. Main features of XY-2 hydraulic core drilling rig
（1）The drilling rig adopts an automobile gearbox assembly with multiple speed stages and a reasonable speed adjustment range;
（2）With large torque and strong bearing capacity, it can realize remote control and speed change, and the operation is centralized and convenient;
（3）The drilling rig has high power and 2 reverse speeds, which is convenient for handling accidents;
（4）With a normally closed hydraulic chuck, it is convenient and flexible to operate;
（5）The vertical shaft through hole has a large diameter, which can be replaced with a large hexagonal active drill rod;
3. Technical parameters of XY-2 hydraulic core drilling rig
Model |
XY-2 |
Drilling depth |
300m |
Drilling diameter |
300-75mm |
Hole diameter |
300mm |
Final hole diameter |
75mm |
Drill rod |
Φ60 |
Drilling angle |
90°--65° |
Vertical axis | |
Vertical shaft forward speed |
65-1172 r/min |
Vertical shaft reverse speed |
51-242 r/min |
Vertical shaft reverse speed |
560mm |
Vertical shaft lifting capacity |
6000kg |
Main winch | |
Single rope lifting speed |
0.5-1.9m/s |
Wire rope diameter |
12.5mm |
Single rope lifting capacity |
3000kg |
Roll diameter |
300mm |
Roll capacity |
50m |
Gear pump | |
Gear oil pump |
CBF-F63/25 |
Front flow pressure |
63L/min 20Mpa |
After flow pressure |
25L/min 20Mpa |
Rig power | |
Diesel engine |
33KW |
Motor |
22KW |
Weight&Size | |
Rig weight |
1480KG |
Dimensions |
2500*900*1800mm |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
