Geological Engineering Exploration Backpack Portable Gasoline Core Drilling Rig
Negotiable
/ Pound
1 Pound(Min. Order)
- tianjn
- T/T
- 7 days
You May Like
-
Small Portable Geotechnical Gasoline Core Drilling Rig (XY-50A)
-
Small Hydraulic Portable Soil Sampling Core Drilling Rig
-
Wheeled Trailer Hydraulic Water Well Drilling Rig/Rock Core Drilling Rig(300m-600m)
-
Surface-set Diamond Bit
-
Small Portable Soil Sample Investigation Core Drilling Equipment (XY-30)
-
Hydraulic Core Drilling Machine Kilometer Engineering Geological Drilling Machine Mining Deep Core Sampling
Product Details
| Brand Name | Aoxing | Place of Origin | China | |
| Model Number | 30Type | After-sales Service Provided | Overseas service center available |
Product Description
Product Description
Compact structure, can be disassembled, small volume, light weight, easy to carry; Gasoline engine has high horsepower, drilling depth is guaranteed; With drill stand, which is more convenient and safe for outside work.
Product Application:

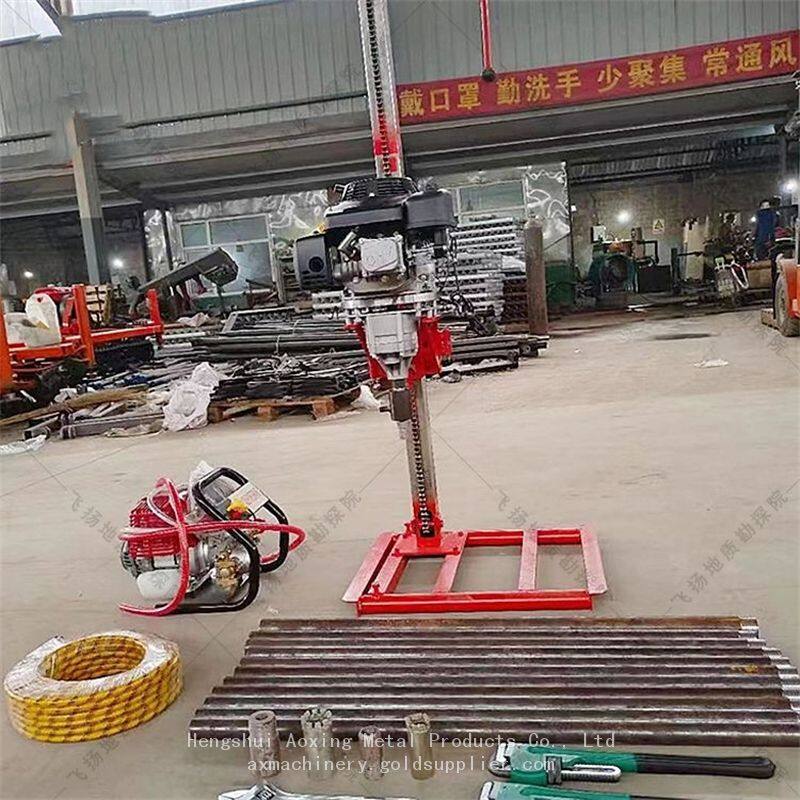

The BZ-30 vertical backpacking drill is a portable rock core drill which can be disassembled and carried away. It is mainly used for mineral exploration, geochemical exploration, shallow sampling, vein exploration, geological research, engineering exploration, oil field exploration, water conservancy engineering investigation, highway engineering investigation, tunnel lining, invert inspection, etc.
The technical parameters of BZ-30 portable backpacking drill rig:
Product Application:
The BZ-30 vertical backpacking drill is a portable rock core drill which can be disassembled and carried away. It is mainly used for mineral exploration, geochemical exploration, shallow sampling, vein exploration, geological research, engineering exploration, oil field exploration, water conservancy engineering investigation, highway engineering investigation, tunnel lining, invert inspection, etc.
The technical parameters of BZ-30 portable backpacking drill rig:
| Model | BZ-30 |
| Drilling depth | 30m |
| Drill rod diameter | 32mm |
| Drilling diameter | 32-108mm |
| Adaptation geological | soil, loose cover, all kinds of rock |
| Engine type | KOHLER XT series, gasoline engine |
| Oil consumption | 0.35L/min |
| Oil tank volume | 1400ml |
| Drive mode | Gear transmission |
| Variable speed proportion | 7:1 |
| Coring mode | rotary |
| Rig rated speed | 540r/min |
| Power | 7.75hp |
| Drill rod length | 800mm |
| Drill bit diameter | φ32, φ46, φ60 φ108mm |
| Weight (including holder ) | 54kg |
| Dimension (LxWxH) | 550x450x420mm |
