Product introduction

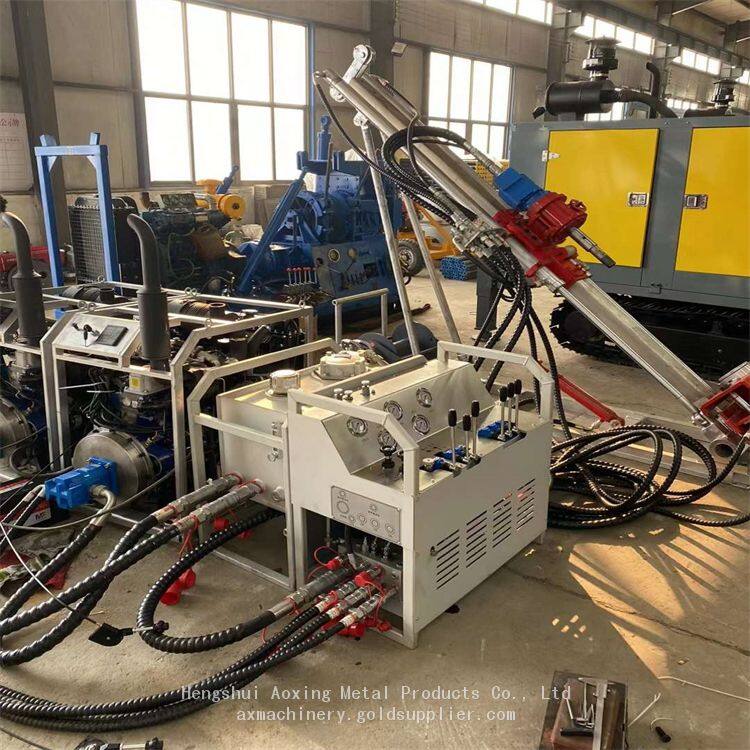

The XT series portable drilling rig adopts a modular design, which can realize rapid assembly and disassembly. The lightweight design is convenient for mountain transportation and reduces the initial preparation cost of the drilling rig. This drilling rig is suitable for geological exploration, geophysical exploration, road and building exploration and drilling projects such as blasting holes. Different core drill bits and core barrels can be selected for drilling according to different strata.
1. Equipped with hydraulic automatic feeding system to improve drilling efficiency and reduce labor intensity of workers;
2. Light weight modular design, the maximum weight of the unit is 200kg, which is convenient for handling and assembly;
3. The winch is equipped with a cage to form a double-sided support star wheel structure, which can withstand strong impacts;
4. Aero engine, stable performance, strong power and higher rotate speed;
5. Imported motor & oil pump, quick connector link, safe and reliable.
| Model | XT-300 | XT-600 | XT-800 | |
|
Drilling depth |
BTW | 300m | 600m | 800m |
| NTW | 200m | 400m | 600m | |
| HQ | 80m | 260m | 400m | |
| Length of drill pipe | 1.5m | 1.5m | 1.5m | |
| Power | Hanqing V2 42kwX1 | Hanqing V2 42kwX2 | Hangqing V2 42KWX3 | |
| Power weight | 165KG | 165KGX2 | 165KGX3 | |
| No. of rig modular | 5 | 6 | 7 | |
| Max. Flow of Hydraulic system | 65 L/min | 110 L/min Can drive mud pump |
110 L/min Can drive mud pump |
|
| Max. pressure of Hydraulic system | 210 bar | 210 bar | 210 bar | |
| Max. rotate speed of power head | 1200 RPM | 1300 RPM | 1300 RPM | |
| Max. torque of power head | 700 N.m | 700 N.m | 700 N.m | |
| Feeding stroke | 0.9m | 0.9m | 0.9m | |
| Max. lifting force | 65 KN | 65 KN | 65 KN | |
| Rope capacity of hoist | 400m/5mm | 400m/5mm | 400m/5mm | |
| Max. pull force of hoist | 7200 N | 7200 N | 7200 N | |
| Rig total weight | 1500KG | 1800KG | 2000KG | |
