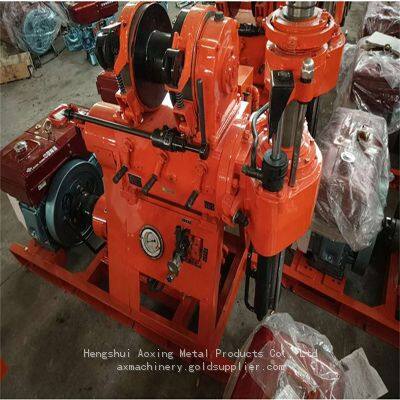

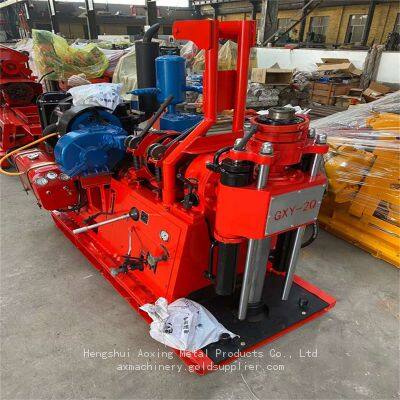

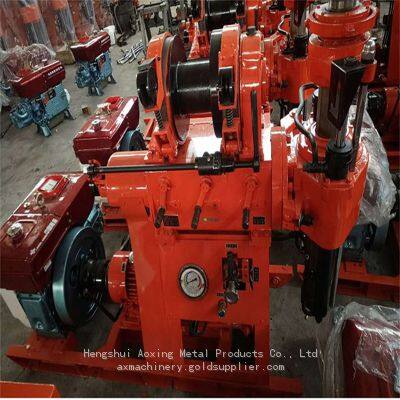

Help CenterXY-100 Portable Rotation Hydraulic Geotechnical Investigation Core Drilling Rig
Related Products
-
XY-3 Hydraulic Core Drilling Rig/Water Well Wrilling Rig/Survey Drilling RigNegotiableMOQ: 1 Pound -
Portable Full Hydraulic Geotechnical Sample Exploration Wireline Core Drilling RigNegotiableMOQ: 1 Pound
-
XY-44A1400m Rock Core Drilling Machine Engineering Geological Drilling Deep Rock Core Sampling Large Hydraulic Drilling MachineNegotiableMOQ: 1 Pound
-
XY-44A Crawler Type Full Hydraulic Exploration Well Core Drilling Machine With Vertical and Oblique Dual Use Drill TowerNegotiableMOQ: 1 Pound
-
Hydraulic Core Drilling Machine Kilometer Engineering Geological Drilling Machine Mining Deep Core SamplingNegotiableMOQ: 1 Pound

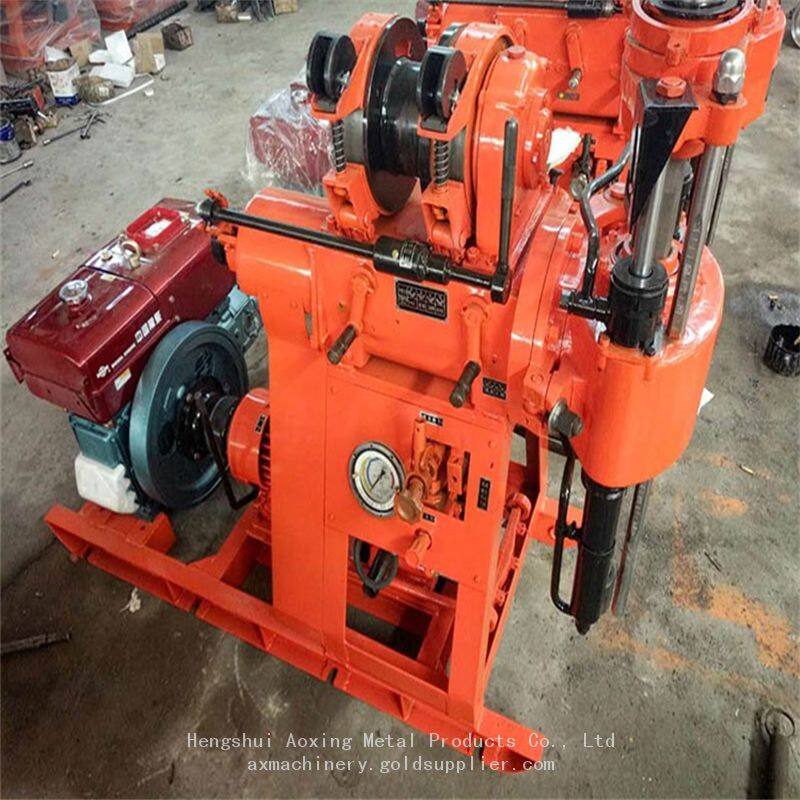

XY-100 Hydraulic Core Drilling Rig
1. Applications of XY-100 hydraulic core drilling rig
XY-100 hydraulic core drilling rig is widely used for core drilling rig, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.
2. Specifications of XY-100 hydralic core drilling rig
Model |
XY-100 |
Drilling depth |
110 |
Maximum open hole caliber |
220mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm /42mm |
Drilling angle |
90 |
Drilling rig weight (exclude diesel engine) |
610kg |
Unity machine dimensions |
2.1*0.9*1.3m |
Spindle | |
Spindle speed |
130/300/480/730/830/1045 r/min |
Spindle stroke |
450mm |
Hoist | |
Max. lifting capacity with single rope |
1600kg |
Lifting speed with single rope |
1.06/0.67/0.32 m/s |
Wire rope caliber |
13mm |
Wire rope cubic measure |
35mm |
Hug floodgate caliber |
254mm |
Hug floodgate belt width |
50mm |
Distance between drill and hole |
230mm |
Mud pump | |
Type |
Horizontal single-urn twin-action |
Displacement (with diesel engine/electric motor) |
170l/min |
Max. pressure |
1.5mpa |
Work pressure |
0.7mpa |
Power | |
Diesel engine |
S1100 |
Electric motor |
Y160M-4 / 10KW |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
