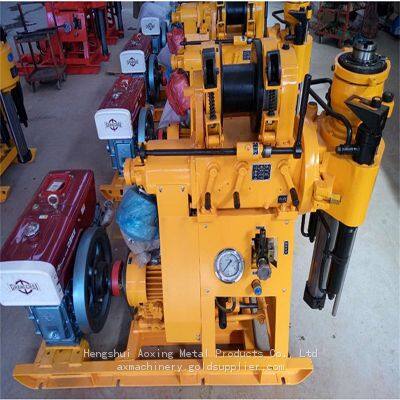

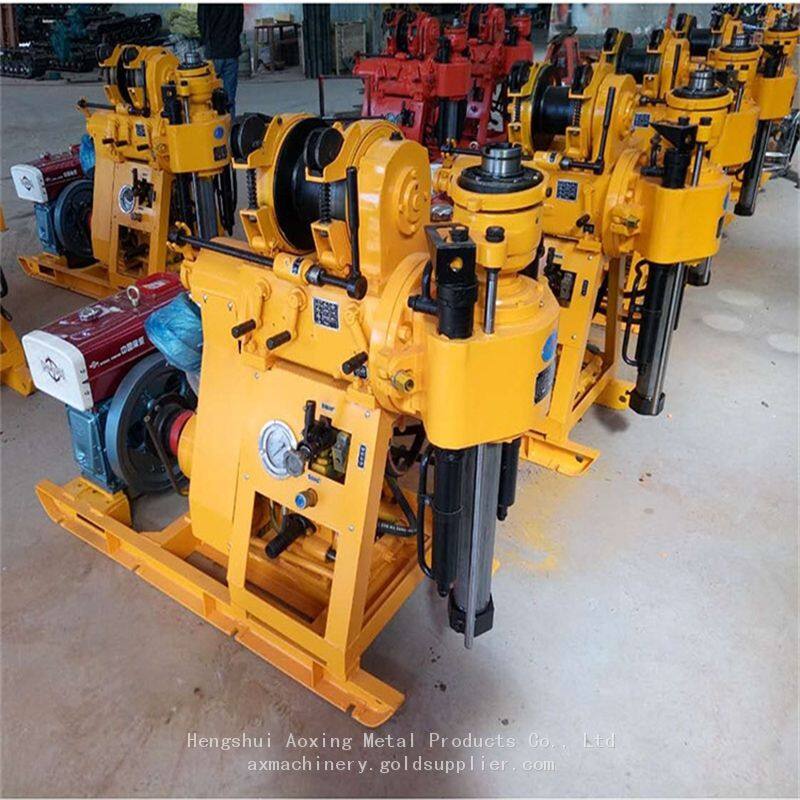

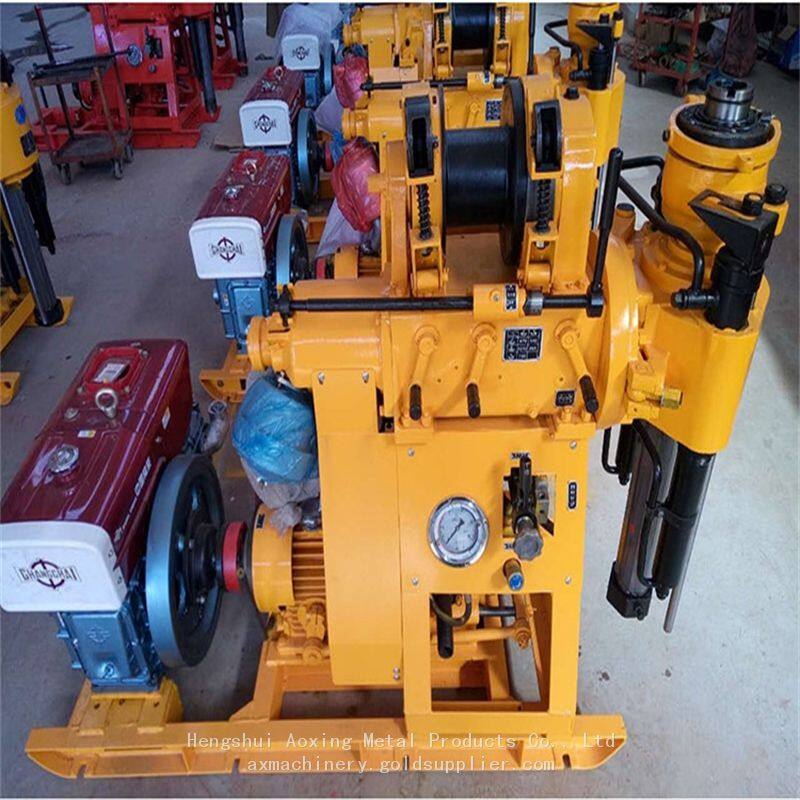

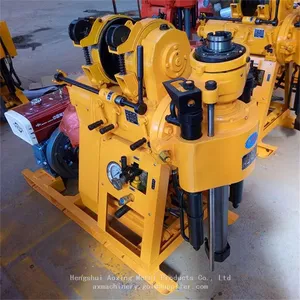

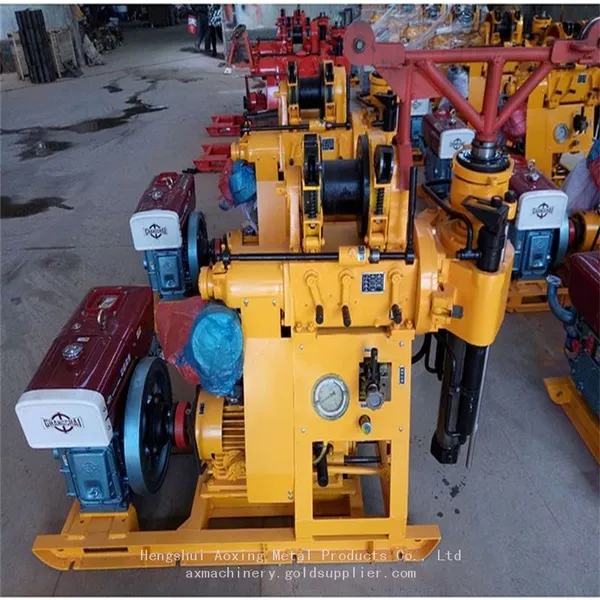

Help Center150 Hydraulic Core Drilling Rig/Survey Drilling Rig
Related Products
-
180 Hydraulic Drilling Rig/Water Well Drilling Rig/Geological Survey Drilling RigNegotiableMOQ: 1 Pound -
Xy-200 Type Geotechnical Exploration Drilling Rig/Well Drilling Core Drilling RigNegotiableMOQ: 1 Pound
-
XY-200 Portable Crawler Mounted Soil Test Drilling Machine With Hydraulic TowerNegotiableMOQ: 1 Pound
-
XY-100 Portable Rotation Hydraulic Geotechnical Investigation Core Drilling RigNegotiableMOQ: 1 Pound
-
XY-3 Hydraulic Core Drilling Rig/Water Well Wrilling Rig/Survey Drilling RigNegotiableMOQ: 1 Pound
Main features:
1. Equipped with an oil pressure feeding mechanism to improve drilling efficiency and reduce labor intensity for workers.
2. Equipped with a bottom pressure gauge to indicate pressure, making it easy to grasp the situation inside the hole.
3. The drilling rig is equipped with a ball clamp type clamping mechanism and a hexagonal active drilling rod, which can implement non-stop rod reversing, with high work efficiency, convenient operation, and safety and reliability.
4. The structure is compact, and the water pump is installed on the drilling rig, occupying a small site area.
5. The drilling rig has a compact structure, small volume, light weight, strong decomposability, and is easy to relocate, suitable for work in plains or mountainous areas.
XY-150 Drilling Rig:
| Basic Parameters | |
| Drilling depth | 45-180m |
| Drilling diameter | 300-76mm |
| Drill pipe diameter | 42mm 50mm AW BW AWJ BWJ |
| Gross weight of drilling machine(engine not included) | 500kg |
| Dimension (length ×width × height) | 2050 × 1180× 1420 mm |
| Revolving Plate | |
| Rated speed | 60 200 400 610 1100 r/min |
| Maximum torque | 1800N*m |
| Driving travel | 450mm |
| Maximum Cylinder driving force | 20KN |
| Maximum Cylinder lifting force | 30KN |
| Lifter | |
| Lifting capacity | 24KN |
| Bobbin line speed (2 layers) | 0.20 0.72 1.26 2.8 m/s |
| Bobbin diameter | 125mm |
| Rope diameter | 11mm |
| Rope capacity | 26m |
| Oil pumps: | |
| Displacement: | 20ml/r |
| Normal speed | 2500r/min |
| Normal pressure | 20MPa |
| Max pressure | 25MPa |
| Drive motor | |
| Type | Changchai ZS1100 diesel engine |
| Rated power | 12.1KW |
| Rated speed | 2200r/min |
| weight | 155kg |
| Frame | |
| Type | Sliding type(with base frame) |
| Movable travel of drill | 400m |
| Distance between drill and hole-opening | 280mm |
